19-23 RAM 2500,3500 FULL DISC BRAKE KIT,TX6R 6 PISTON,16" ROTORS,BLACK CALIPERS

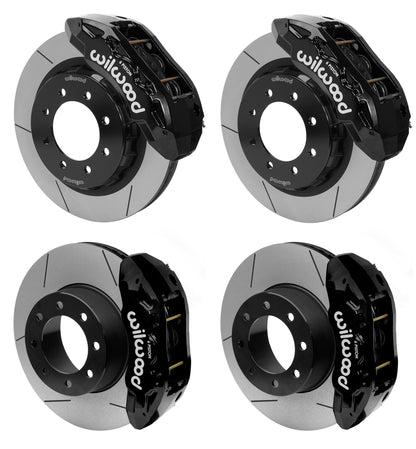

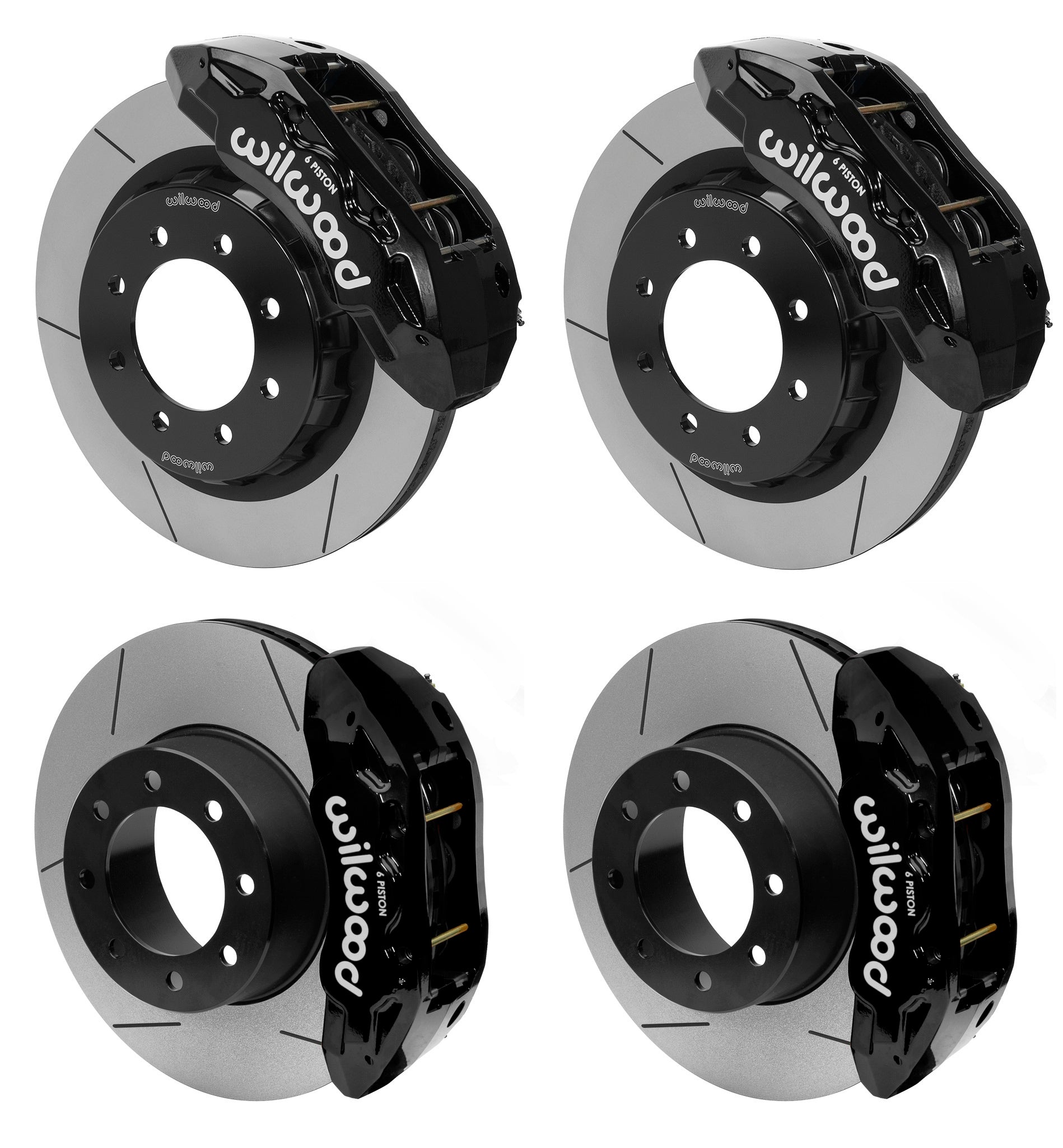

Brand New Wilwood Complete Big Brake Kit Featuring 16" Slotted Rotors with Black Calipers For Both Front & Rear Wheels (Part #140-15381 & 140-17749).

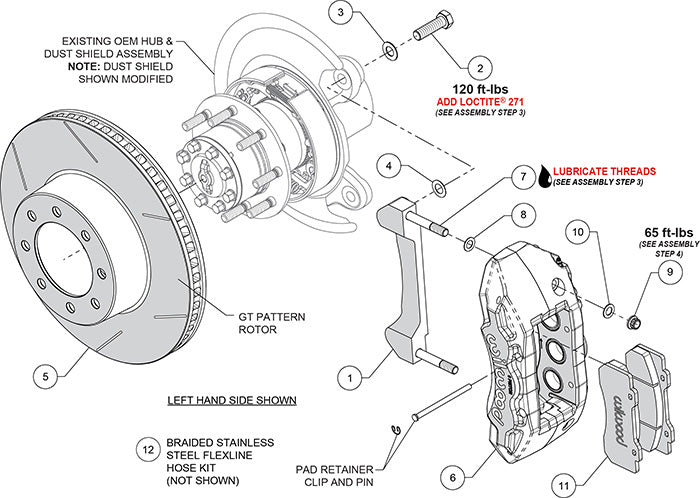

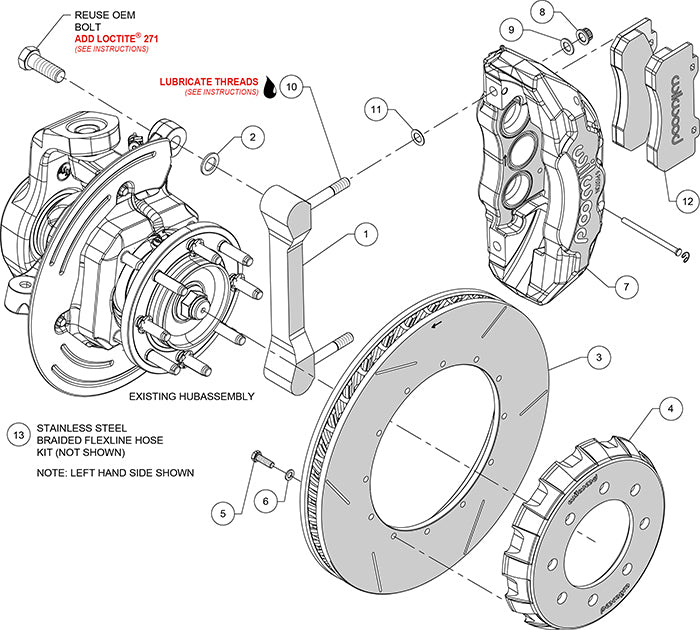

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Complete Kit Includes:

• TX6R 6 Piston Bolt-On Front 16" Disc Brake Kit for Both Front Wheels
• TX6R 6 Piston Bolt-On Rear 16" Disc Brake Kit for Both Rear Wheels
• Full Line Kit for the Front with Steel Braided Lines and necessary Fittings
• Full Line Kit for the Rear with Steel Braided Lines and necessary Fittings

Fits:

• Ram:
  • 2019-2023 2500 Big Horn

  • 2019-2023 2500 Laramie

  • 2021 2500 Laramie Limited

  • 2019-2021 2500 Laramie Longhorn

  • 2019-2023 2500 Limited

  • 2022-2023 2500 Limited Longhorn

  • 2019-2023 2500 Lone Star

  • 2019-2023 2500 Power Wagon

  • 2019-2023 2500 Tradesman

  • 2019-2023 3500 SRW (Single Rear Wheels)


Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

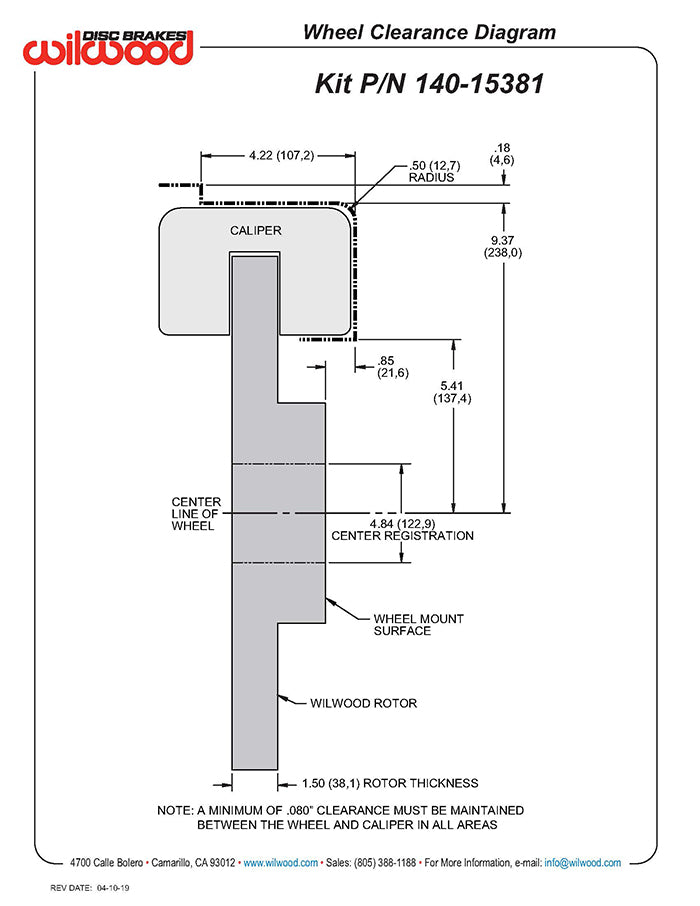

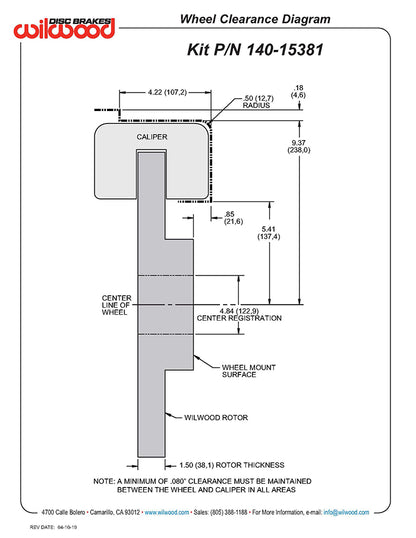

These Big Brake kits require at least 20" diameter wheels.

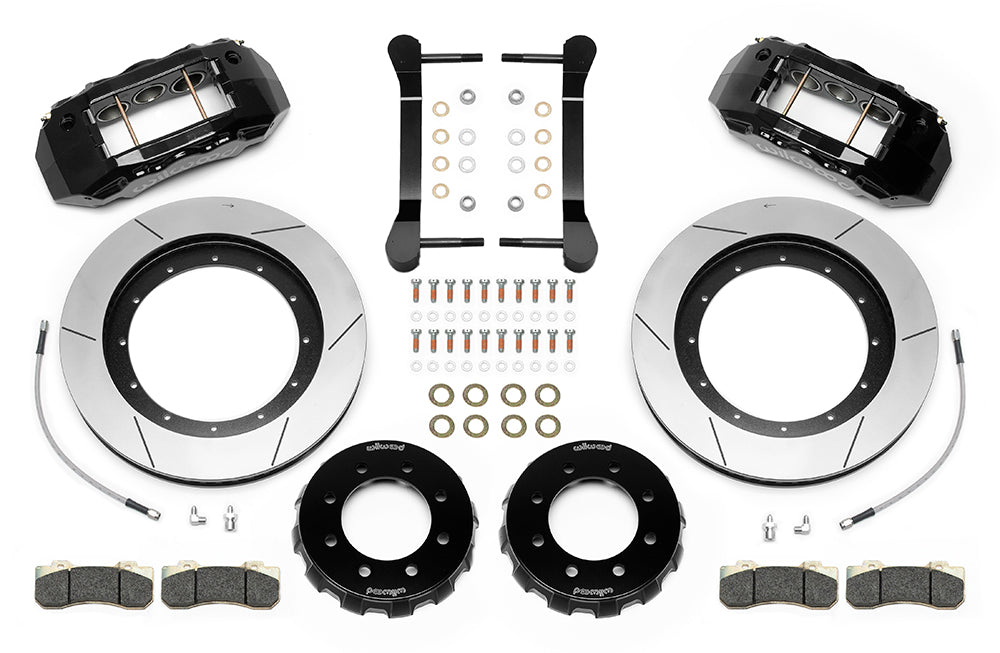

Kit includes parts for both front wheels:

• 6 Piston TX6R Calipers
• 1.50" Thick x 16.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.

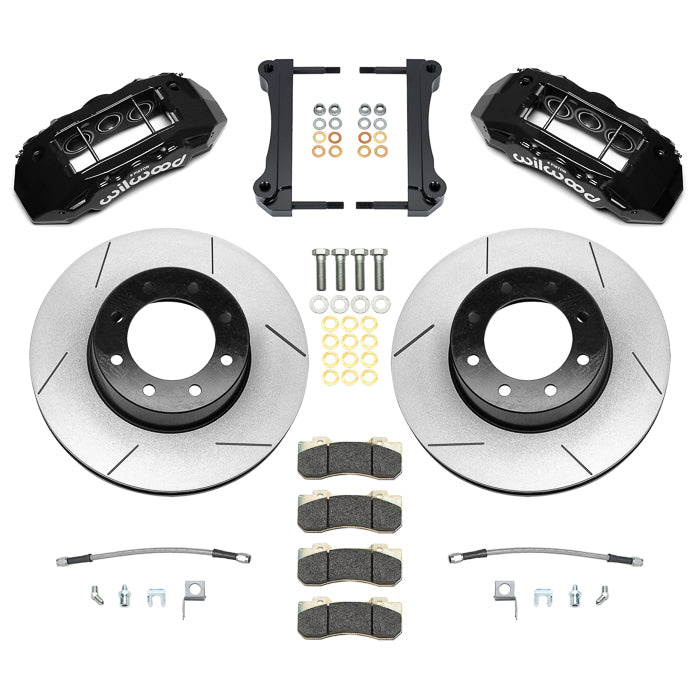

Kit includes parts for both rear wheels:

• 6 Piston TX6R Calipers
• 1.38" Thick x 16.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 260 lbs.

You can view and download the assembly/instruction booklet for the Front Kit here.

You can view and download the assembly/instruction booklet for the Rear Kit here.
