2014-2023 DODGE RAM 2500,3500,FRONT,TX6R 6 PISTON,16" ROTORS,BLACK CALIPERS

Brand New Wilwood TX6R Big Brake Kit Featuring 16" Slotted Rotors with Black Calipers For Both Front Wheels (Part #140-15381).

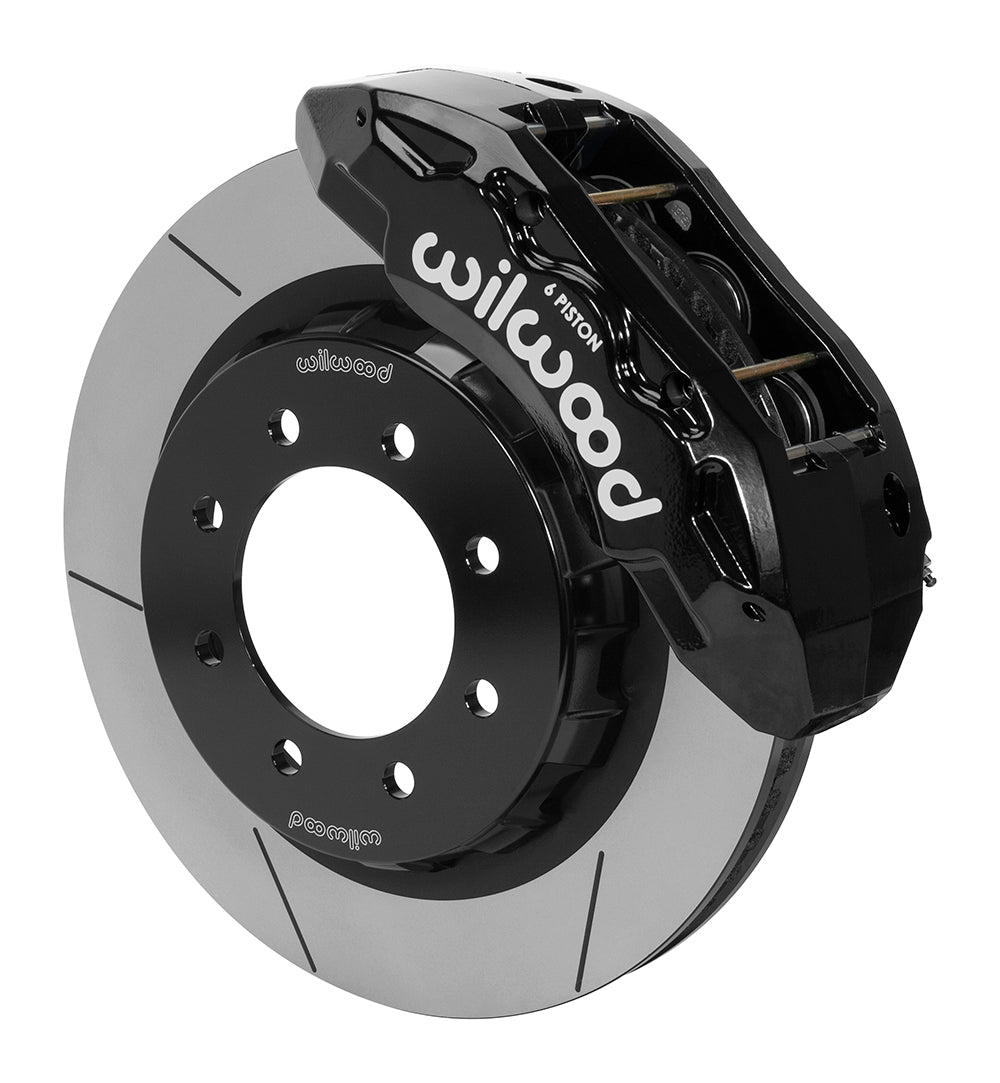

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

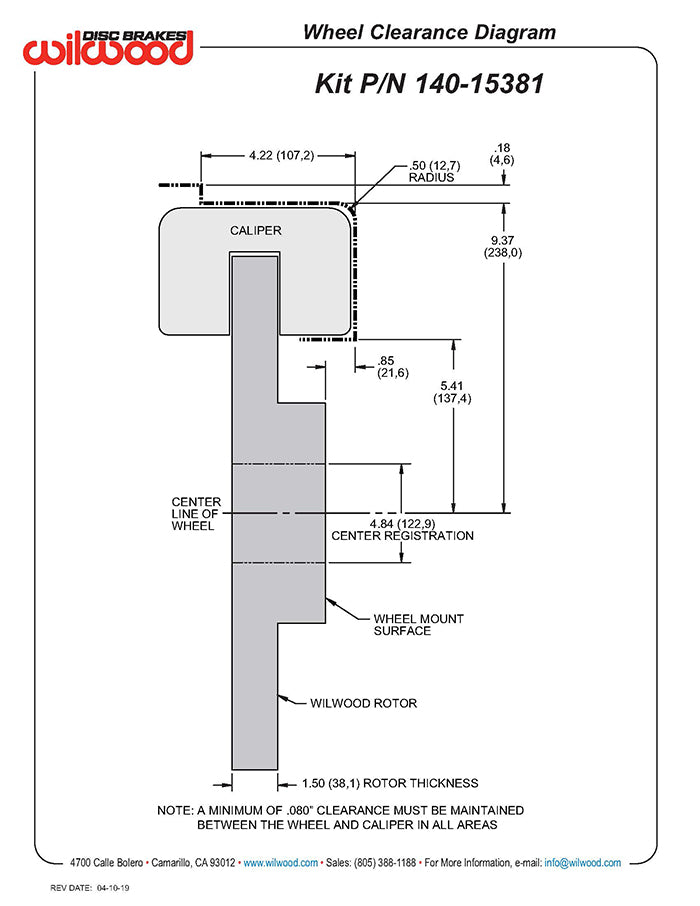

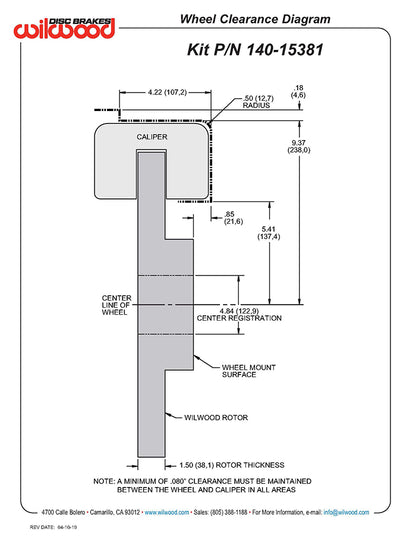

NOTE: This kit require at least 20" diameter wheels. Check wheel clearance diagram for proper fitment. Brake kits are designed for factory spindles.

Compatible with:

• Ram:
  • 2014-2023 2500 Big Horn

  • 2014-2023 2500 Laramie

  • 2014-2021 2500 Laramie Limited

  • 2014-2021 2500 Laramie Longhorn

  • 2016-2023 2500 Limited

  • 2022-2023 2500 Limited Longhorn

  • 2014-2023 2500 Lone Star

  • 2014-2016 2500 Outdoorsman

  • 2014-2023 2500 Power Wagon

  • 2014-2018 2500 SLT

  • 2014-2023 2500 Tradesman

  • 2014-2023 3500 DRW (Dual Rear Wheels)

  • 2014-2023 3500 SRW (Single Rear Wheels)

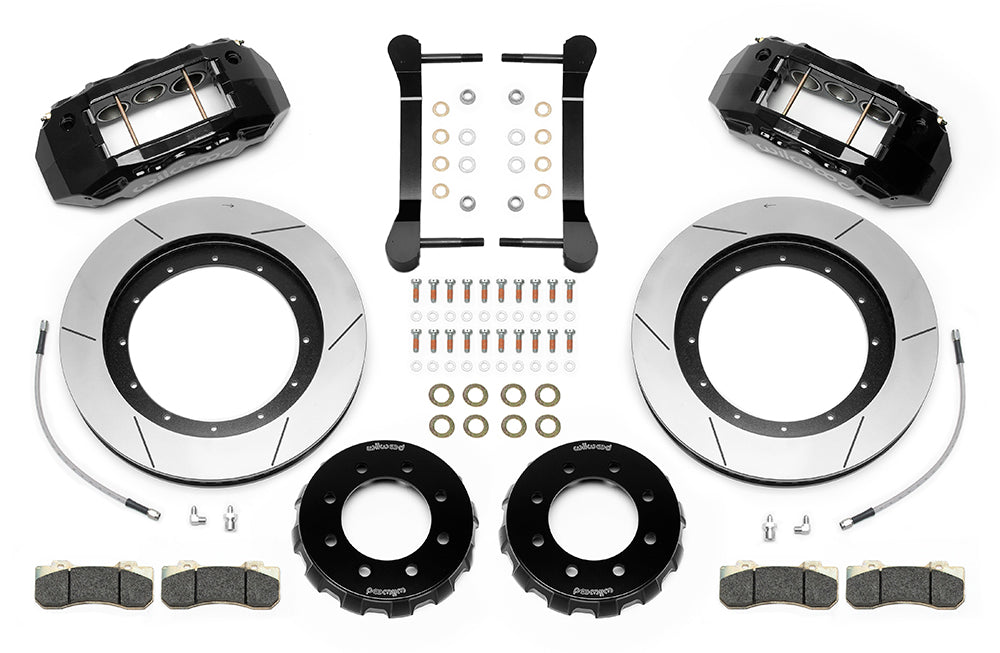

Kit includes:

• 6 Piston TX6R Calipers
• 1.50" Thick x 16.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 130 lbs.

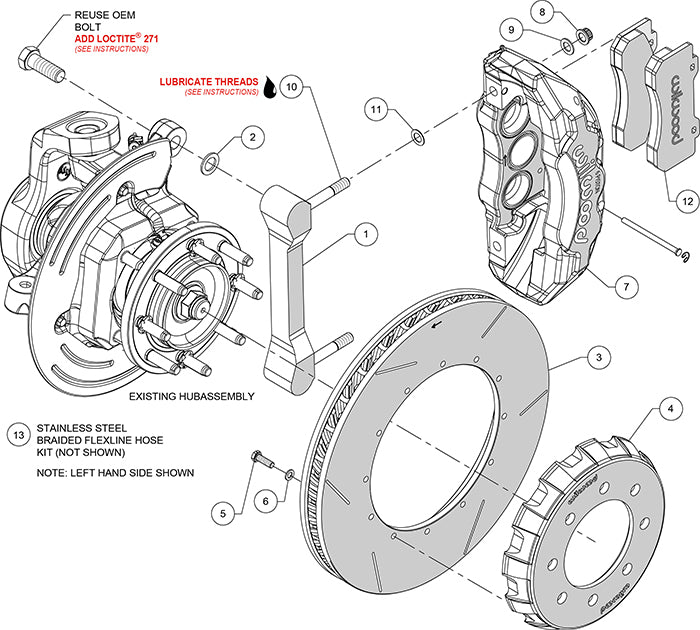

You can view and download the assembly/instruction booklet here.
