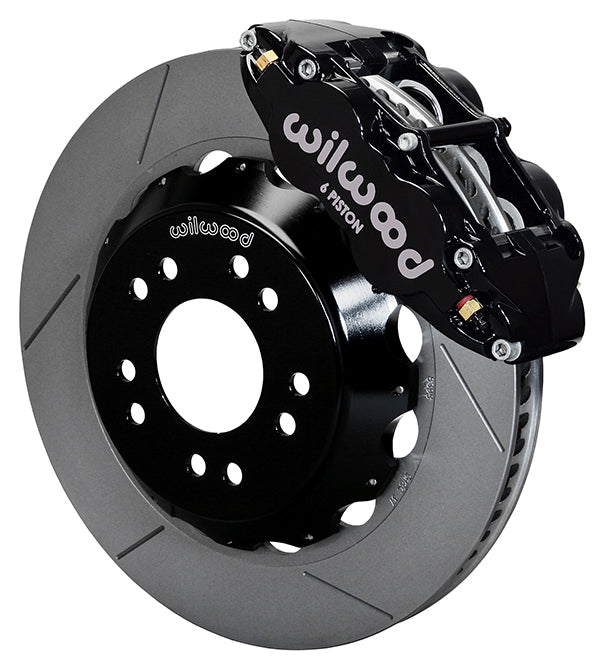

63-87 CHEVY C10 FRONT DISC BRAKE KIT FOR WILWOOD ALUM SPINDLES,14" ROTORS,BLACK

BRAND NEW WILWOOD BIG BRAKE SUPERLITE BOLT-ON FRONT 14" DISC BRAKE KIT (PART #140-15304) FOR BOTH FRONT WHEELS.

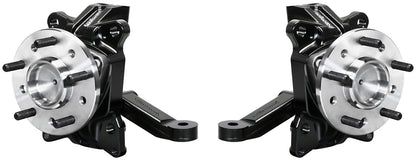

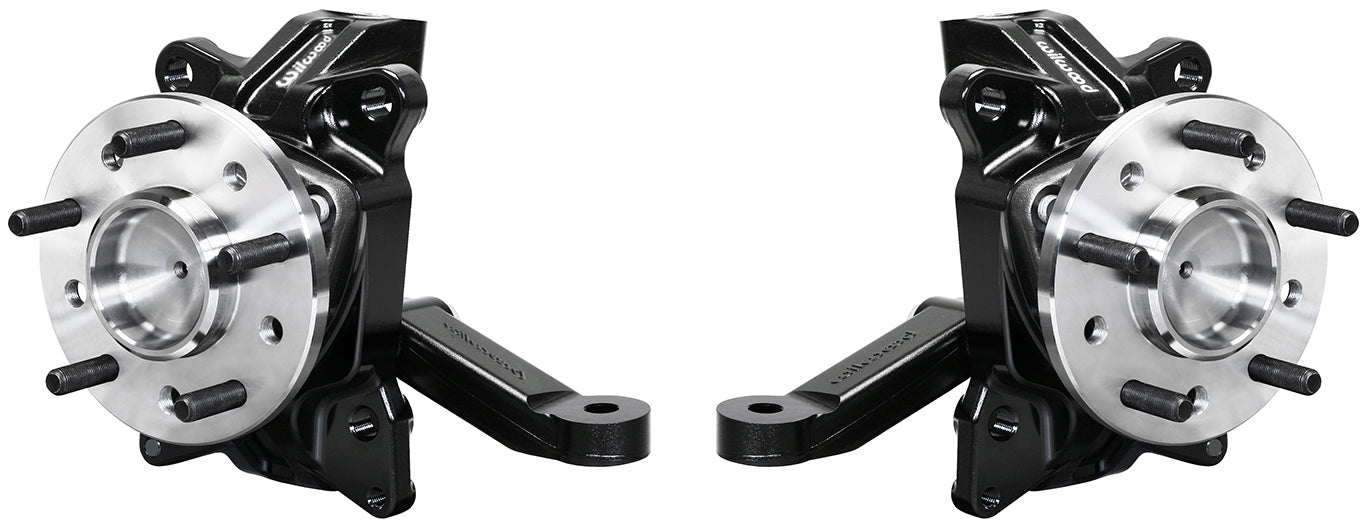

THIS KIT FITS WILWOODS WWE PRO SPINDLES FOR CHEVY C10 & GMC C15 TRUCKS AND SUBURBANS (PART #831-14201 FOR 1963-1970 MODELS OR PART #831-14202 FOR 1971-1987 MODELS). WE DO HAVE THOSE SPINDLES AVAILABLE (63-70 & 71-87), AS WELL AS COMPLETE SETS WITH THESE BRAKES WITH THE SPINDLES INCLUDED (63-70 & 71-87). THIS BRAKE KIT IS ONLY DESIGNED FOR USE WITH THE WWE PRO SPINDLES. IT WONT FIT OTHER SPINDLES.

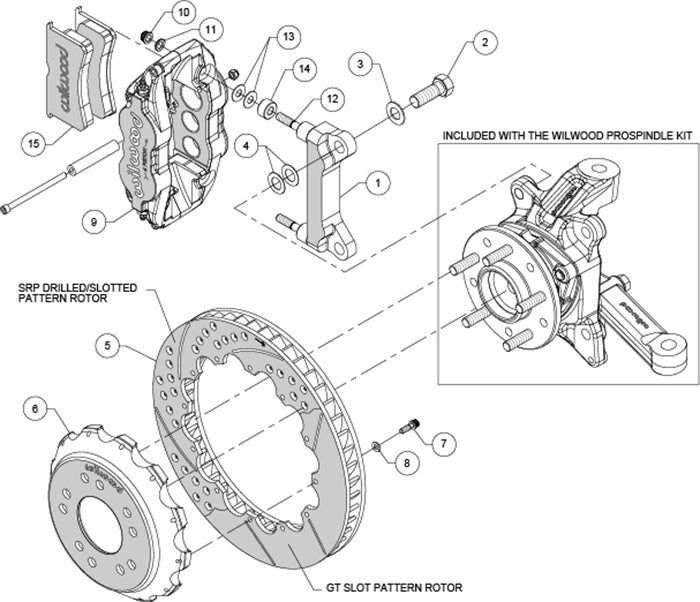

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• 1963-1987 CHEVY C10 AND GMC C15 2WD TRUCKS AND SUBURBANS THAT ARE EQUIPPED WITH WILWOOD WWE PRO-SPINDLES PART #831-14201 OR PART #831-14202

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

SUPERLITE BIG BRAKE FRONT KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR AMERICAN MUSCLE TRUCKS AND RODS. FORGED NARROW SUPERLITE CALIPERS, 13.06" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

THESE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.25" THICK X 13.06" O.D. ROTORS
• FORGED NARROW SUPERLITE 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HATS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 54 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
