64-74 GM FRONT DISC BRAKE KIT,11" 1-PC. ROTORS,4 PISTON DYNALITE BLACK CALIPERS

64-74 GM FRONT DISC BRAKE KIT,11" 1-PC. ROTORS,4 PISTON DYNALITE BLACK CALIPERS

WIL 140-15272B

$749.99
$749.99
View full details
  • BRAND NEW WILWOOD CLASSIC BOLT-ON FRONT HUB & 11" 1- PIECE DISC BRAKE KIT. FOR BOTH FRONT WHEELS.

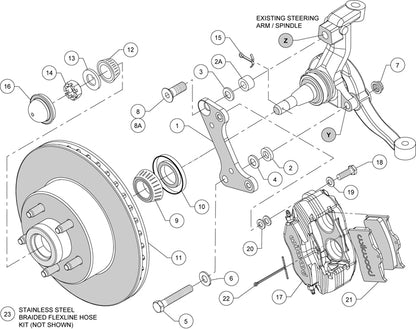

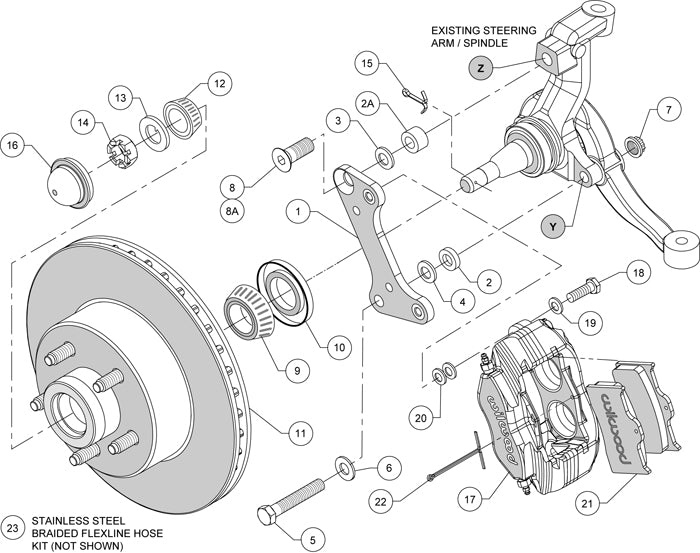

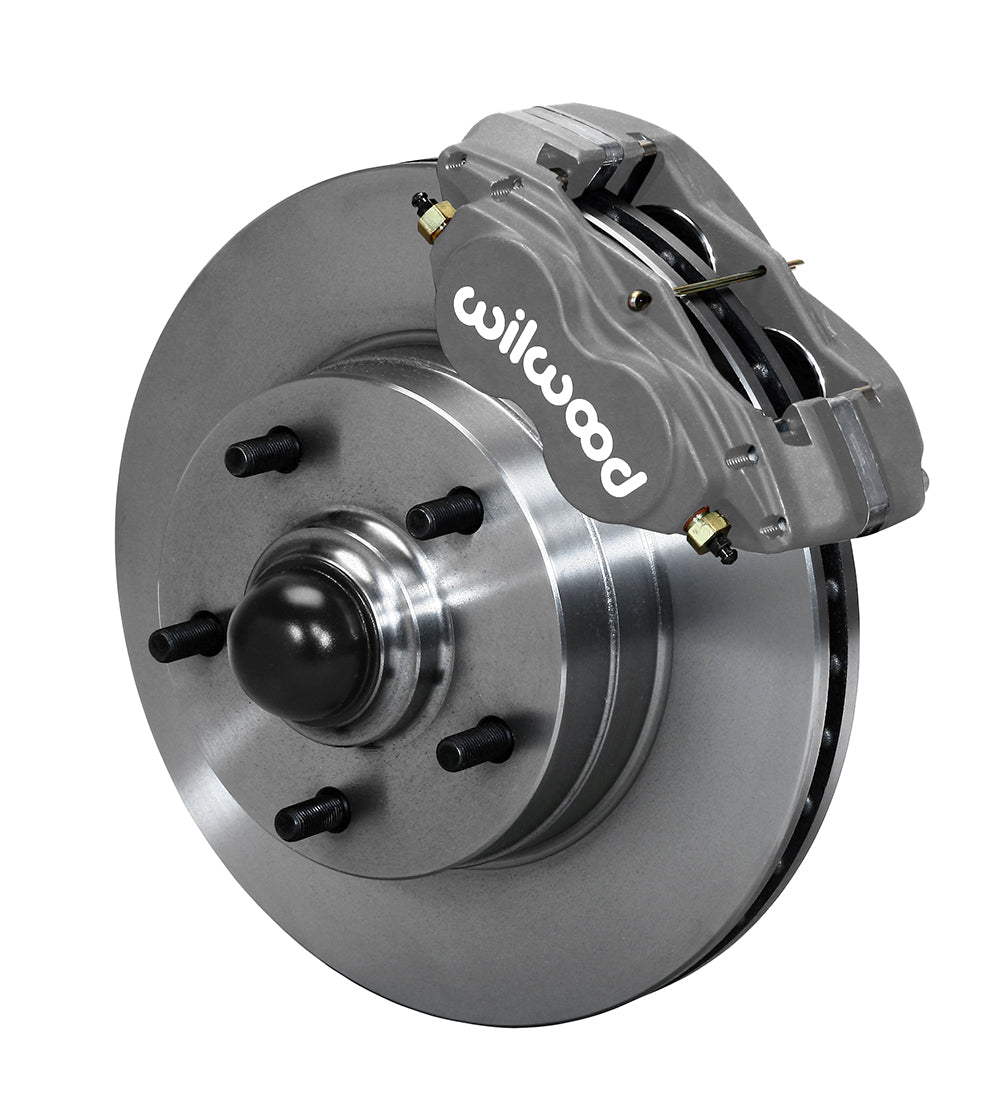

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED.

  • FEATURES GRAY ANODIZED CALIPERS.

    • FITS:

    • CHEVROLET:
      • 1967-1969 CAMARO
      • 1964-1972 CHEVELLE
      • 1964-1972 EL CAMINO
      • 1970-1972 MONTE CARLO WITH DISC BRAKE SPINDLES
      • 1964-1974 CHEVY II
      • 1964-1974 NOVA
    • GMC:
      • 1971-1972 SPRINT
    • BUICK:
      • 1973-1974 APOLLO
      • 1965-1970 CENTURY
      • 1965-1972 GRAN SPORT
      • 1964-1972 SKYLARK
      • 1964-1972 SPECIAL
      • 1965-1972 SPORTSWAGON
    • OLDSMOBILE:
      • 1964-1972 CUTLASS
      • 1968-1972 CUTLASS CRUISER
      • 1964-1972 VISTA CRUISER
      • 1967-1972 4-4-2
      • 1964-1972 F85
      • 1973-1974 OMEGA
    • PONTIAC:
      • 1967-1969 FIREBIRD
      • 1964-1972 GTO
      • 1964-1972 LEMANS
      • 1964-1972 TEMPEST
      • 1969-1972 GRAND PRIX WITH DISC BRAKE SPINDLES
      • 1969 GRAND PRIX WITH DRUM BRAKE SPINDLES
      • 1971-1974 VENTURA II

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR 1964 TO 1974 GM A-BODY, X-BODY AND 1967-69 F-BODY OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM & DISC BRAKE SPINDLES. THESE KITS FEATURE THE FDL-M FOUR PISTON FORGED ALUMINUM CALIPER AND 11.00" DIAMETER X 1" THICK ONE-PIECE ROTORS.

  • THESE KITS WIDEN THE TRACK BY ONLY 0.47 FROM ORIGINAL DRUM BRAKE POSITION OR NARROWS BY 0.03" FROM THE ORIGINAL DISC BRAKE ROTOR ASSEMBLY. THE FDL-M CALIPER IS A MODIFIED VERSION OF THE TIME-TESTED FORGED DYNALITE CALIPER, AND PROVIDES THE GREATEST AMOUNT OF WHEEL CLEARANCE OF ANY FOUR PISTON CALIPER IN ITS SIZE CLASS. THE OEM STYLE ONE-PIECE CAST IRON ROTORS WITH INTEGRATED HUBS SIMPLIFY INSTALLATION WHILE PROVIDING SUPERB DIMENSIONAL STABILITY AND WEAR RESISTANCE. THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND CLEAR MANY 14" OEM WHEELS. CLASSIC SERIES FDL-M KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS.

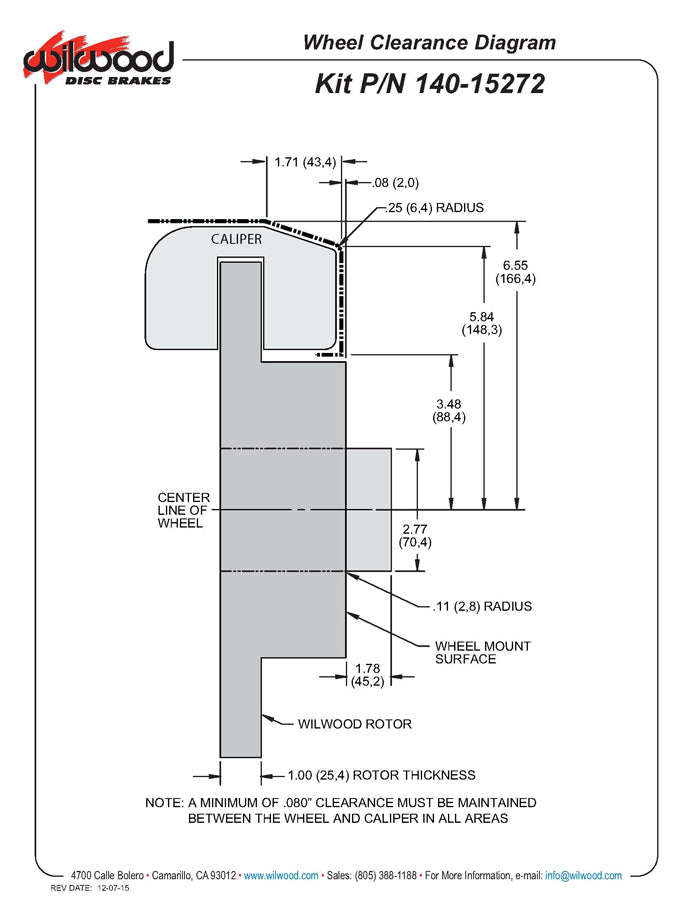

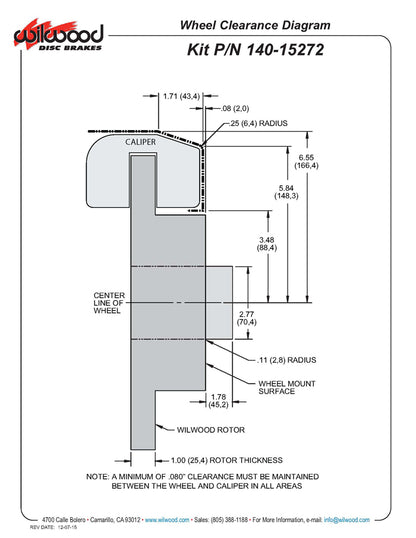

  • THESE BRAKE KITS WILL FIT ANY 15" DIAMETER OR LARGER WHEELS, AS WELL AS MANY 14" WHEELS. WE HAVE INCLUDED A WHEEL DIAGRAM BELOW THAT CAN BE USED TO COMPARED AGAINST THE REAR OF YOUR 14" WHEELS TO CONFIRM CLEARANCE.

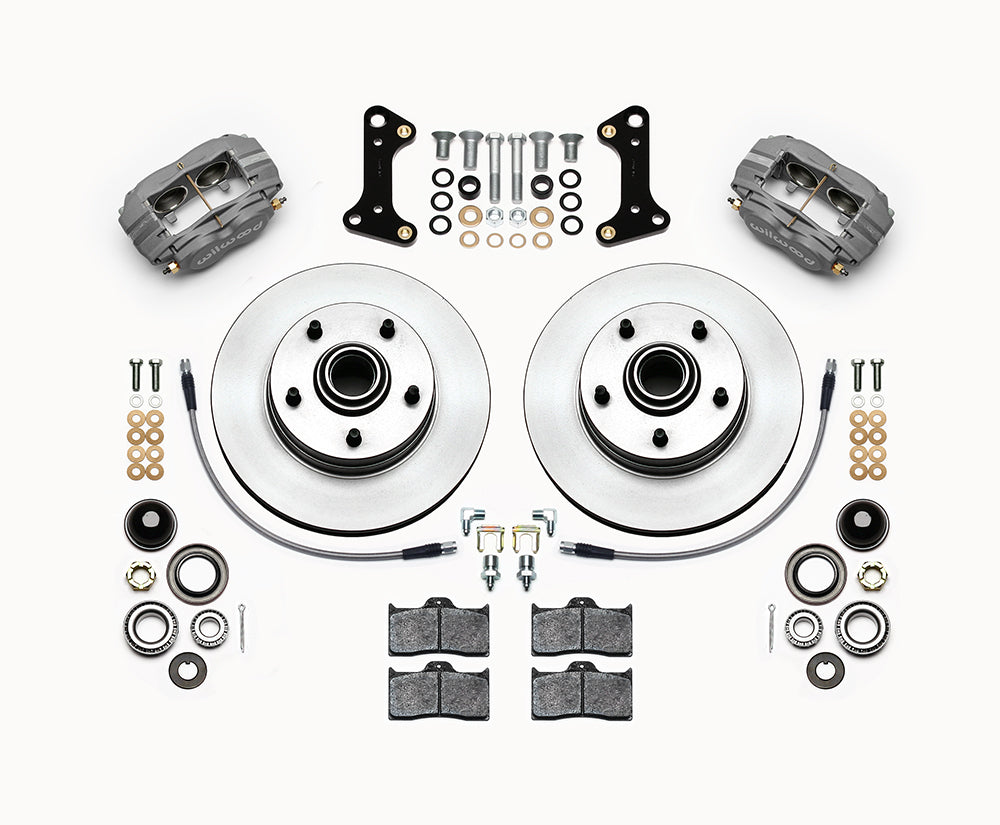

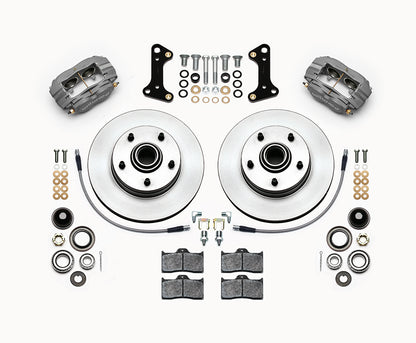

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • 1.00" THICK X 11.00" O.D. 1-PIECE ROTORS
    • FORGED DYNALITE-M 4 PISTON CALIPERS
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • STEEL BRAIDED LINES WITH NECESSARY FITTINGS
    • BEARINGS, RACES, SEALS, & DUST CAPS, &
    • ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 60 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
