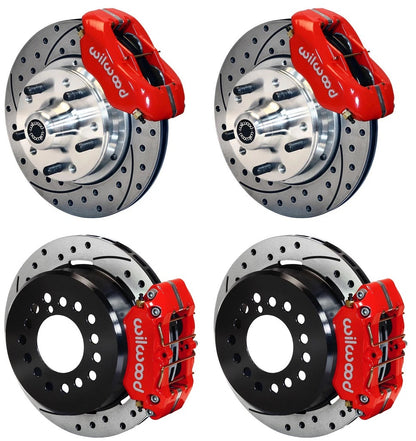

65-72 CDP C-BODY W/DRUMS FULL DISC BRAKE KIT,11" DRILLED ROTORS,RED

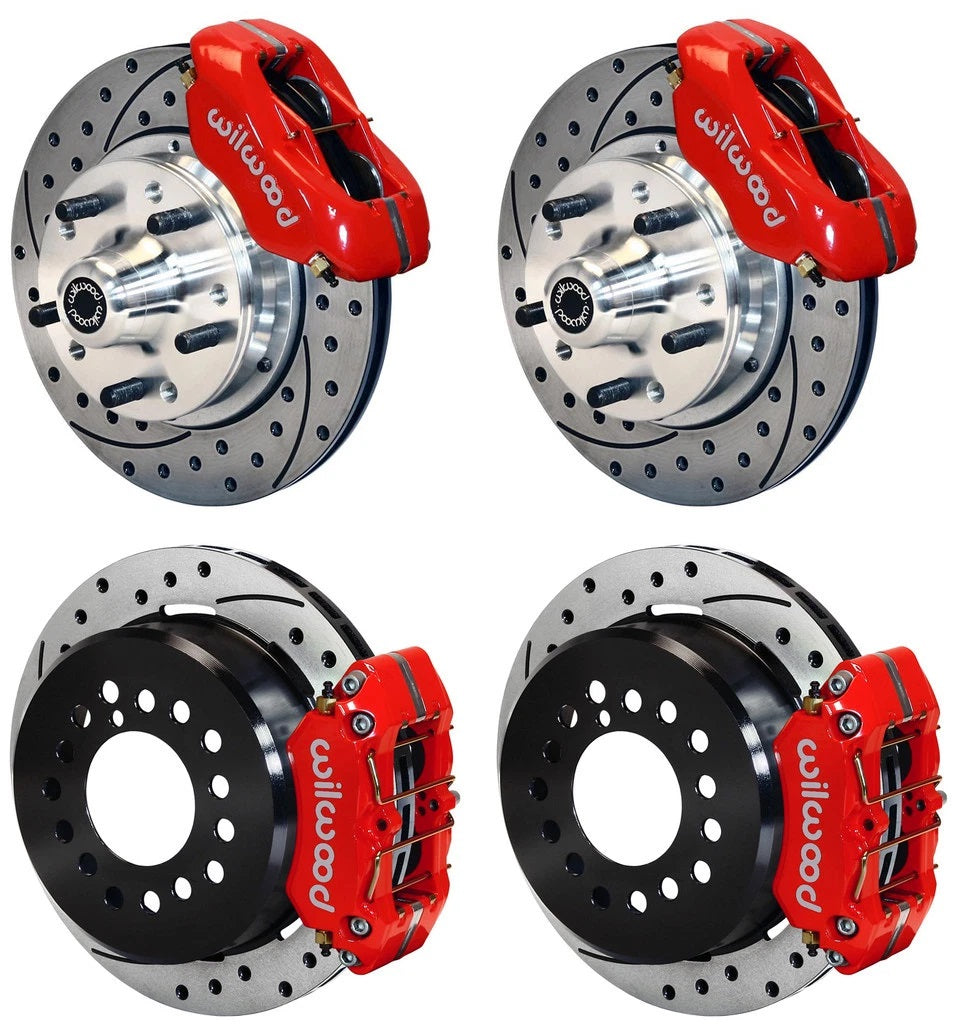

Brand New Wilwood Complete Limited-Offset Pro Series Front & Rear 11" Disc Brake Kit.

Complete Kit Includes:

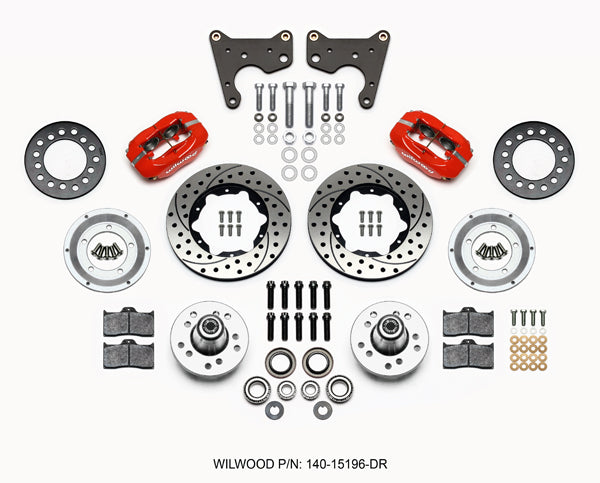

• Forged Dynalite 4 Piston Pro Series Bolt-On Front Hub & 11" Disc Brake Kit (Part #140-15196-DR) for Both Front Wheels

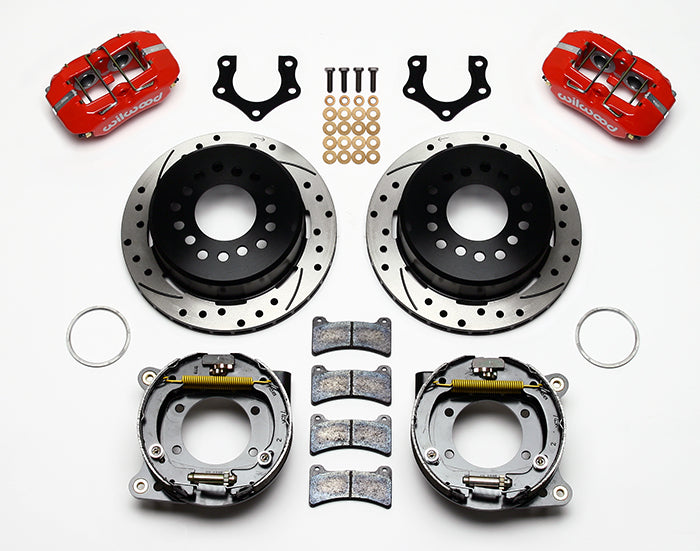

• Low-Profile Dynapro 4 Piston Bolt-On Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11395-DR) for Both Rear Wheels

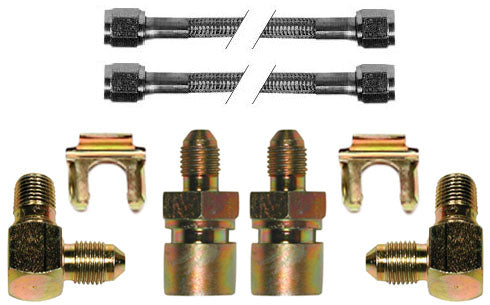

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

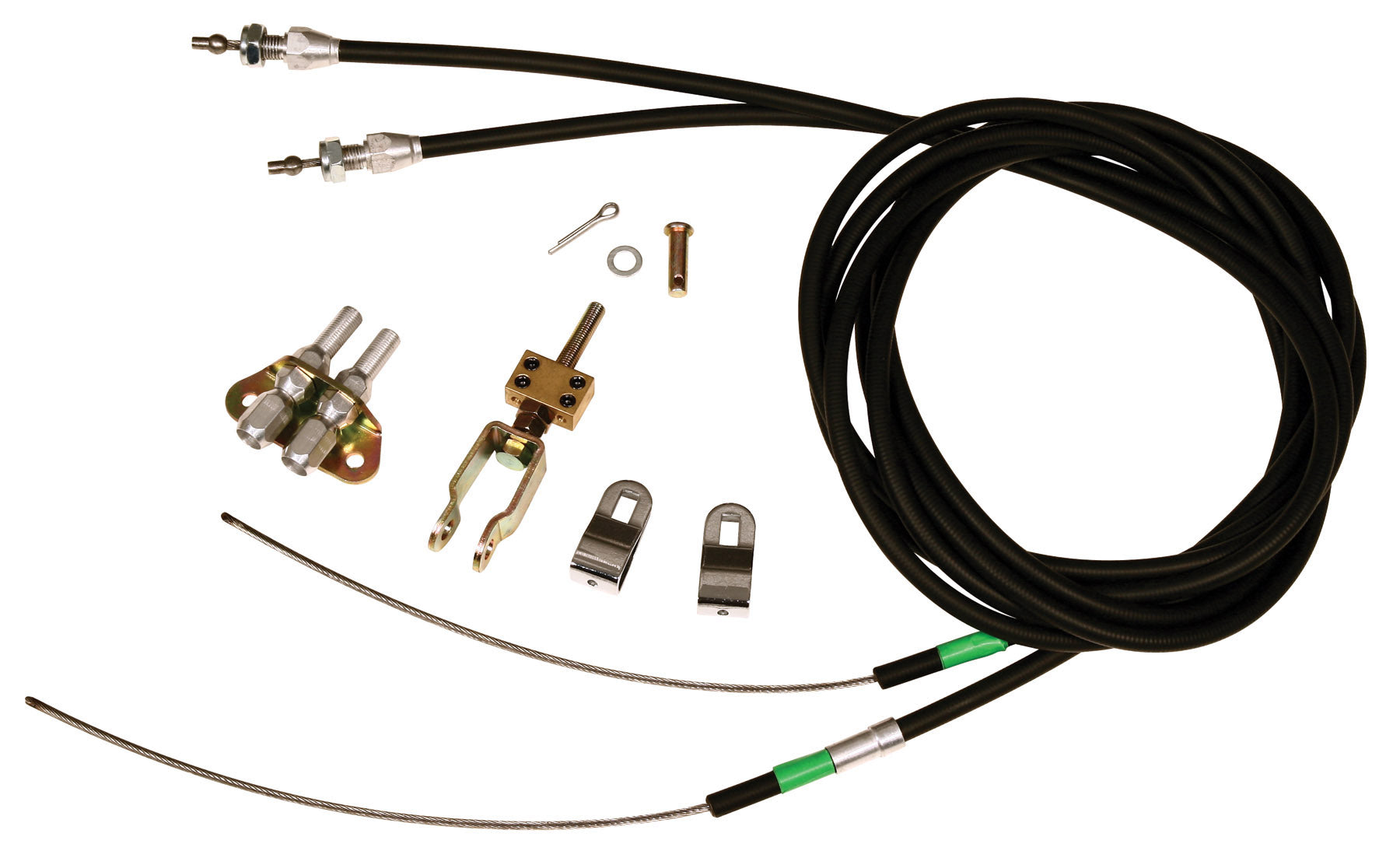

• Parking Brake Cable Kit that connects to the Wilwood's parking brake assemblies, then comes together to join the stock cable behind the transmission

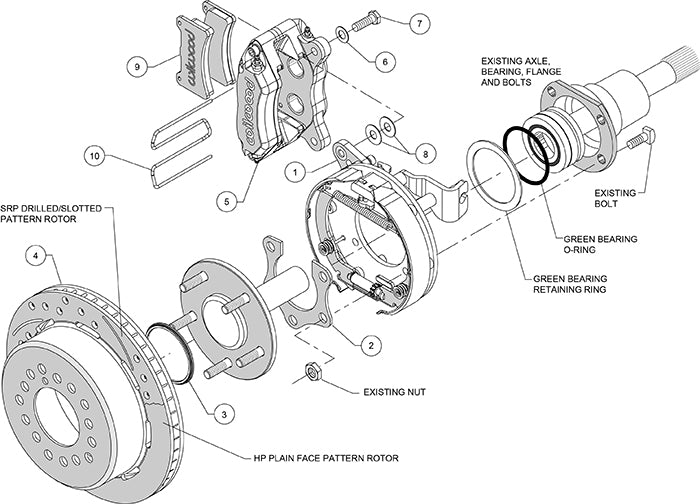

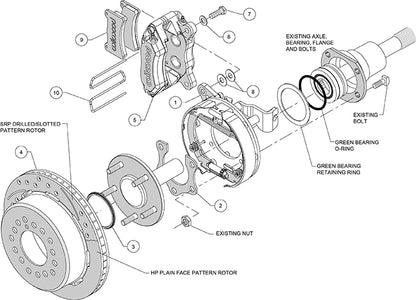

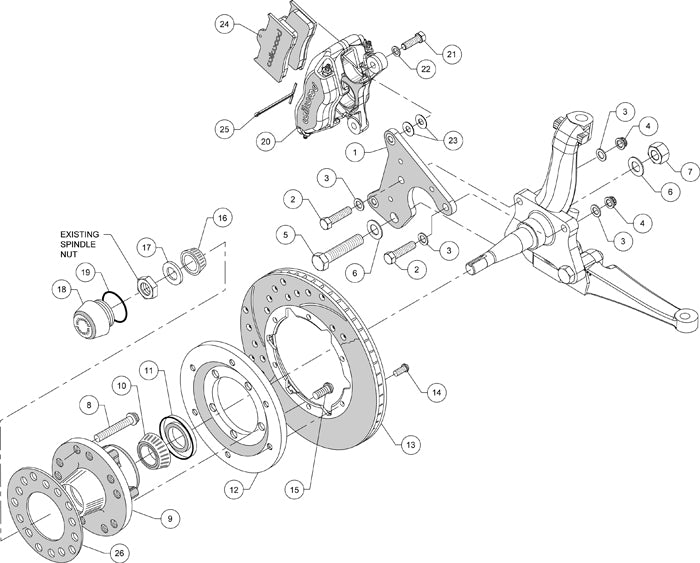

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• **Make sure to see the notes about the rear kit fitment below the vehicle list**
• Dodge:
  • 1965 Custom
  • 1965 Monaco
  • 1966-1972 Monaco with Drum Brake Spindles
    • Including Base, 500
  • 1965 Polara
  • 1966-1972 Polara with Drum Brake Spindles
    • Including Base, Brougham, Custom, Special, 500
• Plymouth:
  • 1965 Fury
    • Including Sport
  • 1966-1972 Fury with Drum Brake Spindles
    • Including Base, Custom, Custom Suburban, Gran Coupe, Gran Sedan, GT, S-23, Sport, Sport GT, Sport Suburban, Suburban, VIP
  • 1968-1972 Fury I with Drum Brake Spindles
    • Including Base, Suburban
  • 1965 Fury II
  • 1966-1972 Fury II with Drum Brake Spindles
    • Including Base, Custom Suburban
  • 1965 Fury III
  • 1966-1972 Fury III with Drum Brake Spindles
    • Including Base, Sport Suburban
  • 1972 Gran Fury with Drum Brake Spindles
    • Including Base, Custom Suburban, Sport Suburban, Suburban
  • 1967 VIP with Drum Brake Spindles
• Chrysler:
  • 1965 300
  • 1966-1971 300 with Drum Brake Spindles
  • 1965 New Yorker
  • 1966-1972 New Yorker with Drum Brake Spindles
    • Including Base, Brougham
  • 1965 Newport
  • 1966-1972 Newport with Drum Brake Spindles
    • Including Base, Custom, Royal
  • 1965 Town & Country
  • 1966-1972 Town & Country with Drum Brake Spindles

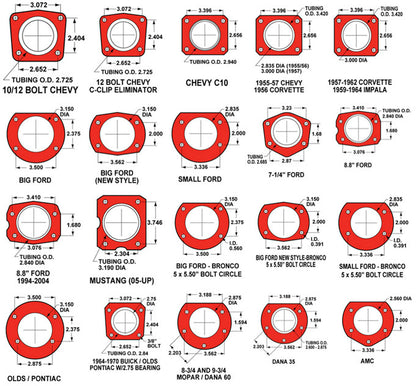

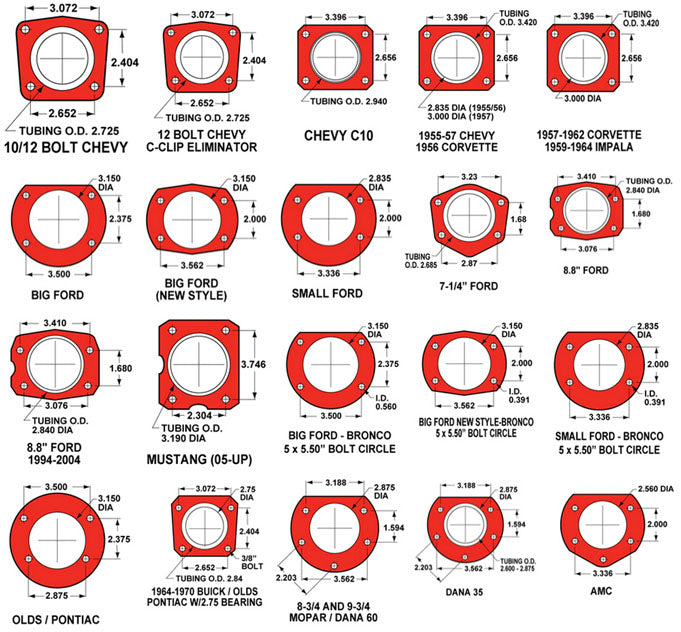

• **The rear kit fits 8 3/4" and 9 3/4" Mopar / Dana 60 rear ends with the Axle Flanges shown below and a 2.36" Axle Flange Offset (see diagram below to show how to measure that offset).  Approximately 90% of all these Dodge and Plymouth cars came stock with these particular axle flanges with that offset.  However, it is always better to measure your Axle Flange and Axle Flange Offset to be sure your vehicle has them.**
• **Also, this rear kit requires the use of the snap ring style, non-adjustable Green Bearings (MO-400).  For Wilwood's more detailed description of this bearing, you can see page 2 of the rear assembly instruction booklet here.**

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, Wilwood's "Limited-Offset" FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars.  They are designed specifically to maintain the factory wheel position.  Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.  These kits can be used with either manual or power boost master cylinders.

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

Each kit is engineered specific for each vehicle.

These Brake kits require at least 15" diameter wheels.

Front kit includes parts for both front wheels:

• Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors
• Forged Dynalite 4 Piston Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals, &
• All bolts, washers, shims & nuts necessary to install the complete braking system on both front wheels

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors with Hats
• Low-Profile Dynapro 4 Piston Calipers - Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• All bolts, washers, shims & nuts necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 84 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
