1994-2004 FORD MUSTANG,REAR,DPR/MC4,13",RED

Brand New Wilwood DynaPro Radial-MC4 Rear Parking Brake Kit Featuring 12.88" Slotted Rotors with Red Calipers For Both Rear Wheels (Part #140-15138R).

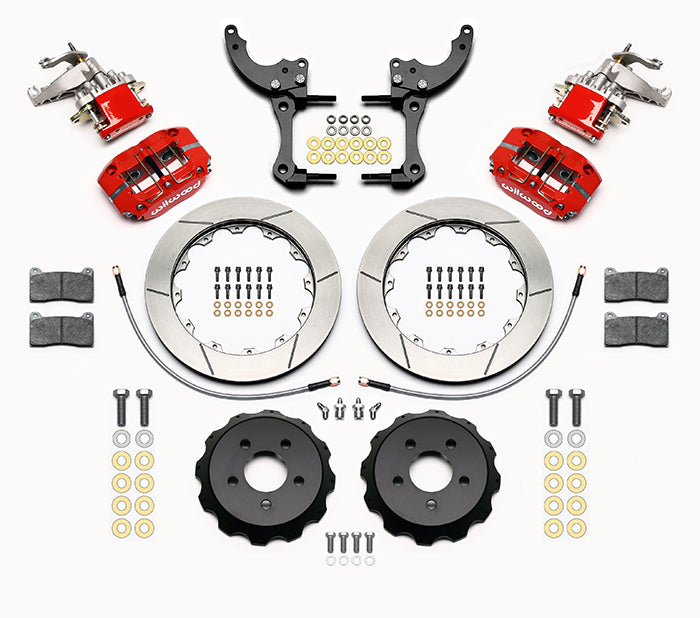

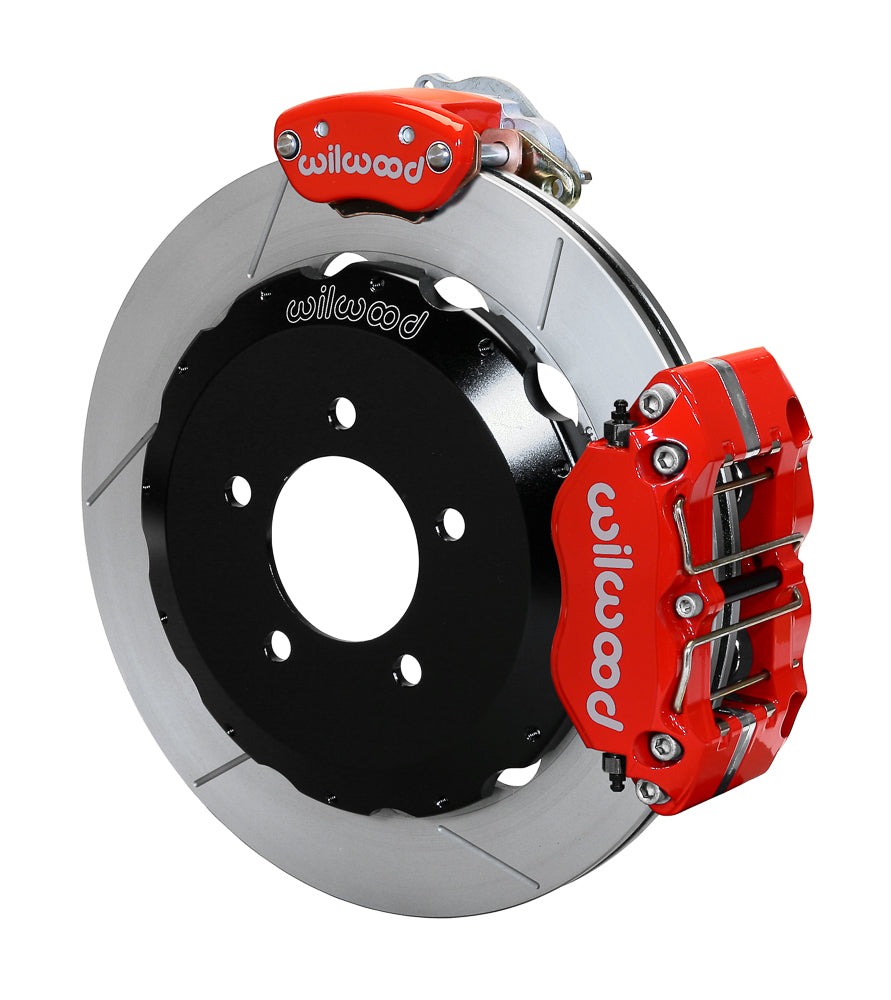

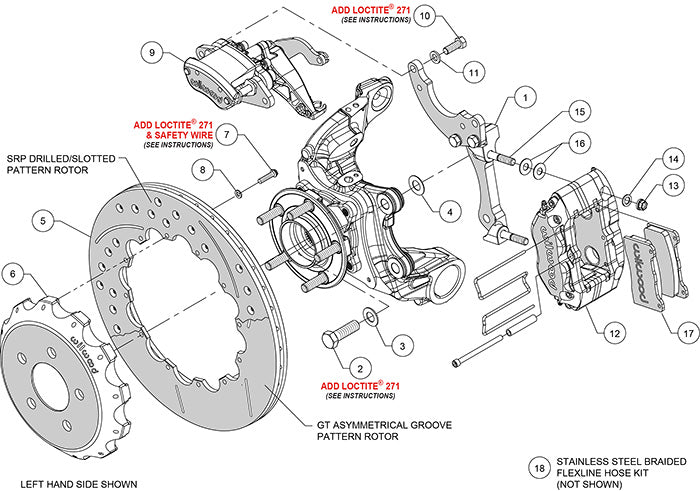

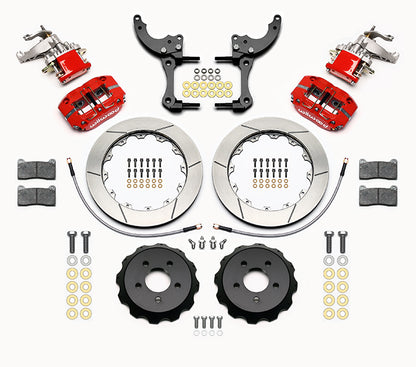

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Factory Five Racing:
  • 33 Hot Rod 2015+ 1994-2004 Mustang Spindle / IRS Rear End

  • MK4 Roadster 2015+ 1994-2004 Mustang Spindle / IRS Rear End

  • Type 65 Coupe 2015+ 1994-2004 Mustang Spindle / IRS Rear End

Dynapro 4 Radial-MC4 Rear Axle Kits replace the factory disc brakes and use the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the Dynapro Radial calipers, BP-10 compound pads, and oversized 12.88" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

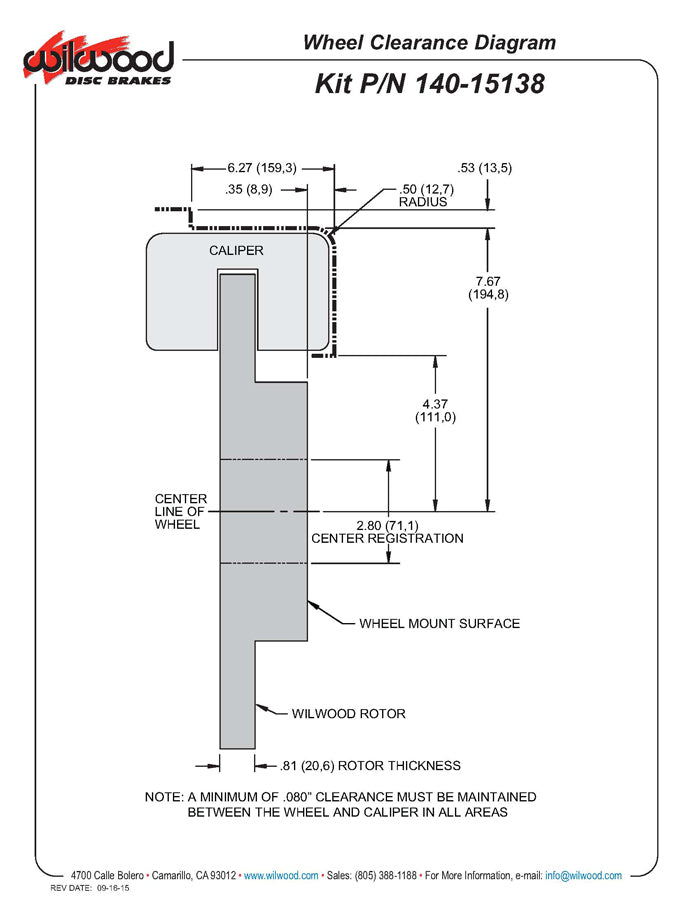

This kit require at least 17" diameter wheels.

Kit includes parts for both rear wheels:

• 4 Piston Narrow Dynapro Radial Calipers

• BP-10 Compound Brake Pads

• 12.88" O.D. x 0.81" Thick Rotors

• Rotor Hat
• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 36 lbs.

You can view and download the assembly/instruction booklet here.
