64-74 GM FRONT DISC BRAKE KIT,15" ROTORS,6 PISTON AERO6 RED CALIPERS

64-74 GM FRONT DISC BRAKE KIT,15" ROTORS,6 PISTON AERO6 RED CALIPERS

WIL 140-15053R

$2,469.99
$2,469.99
View full details
  • BRAND NEW WILWOOD PREMIUM 15" BIG BRAKE BOLT-ON FRONT HUB, HAT, & DISC BRAKE KIT FOR BOTH FRONT WHEELS.

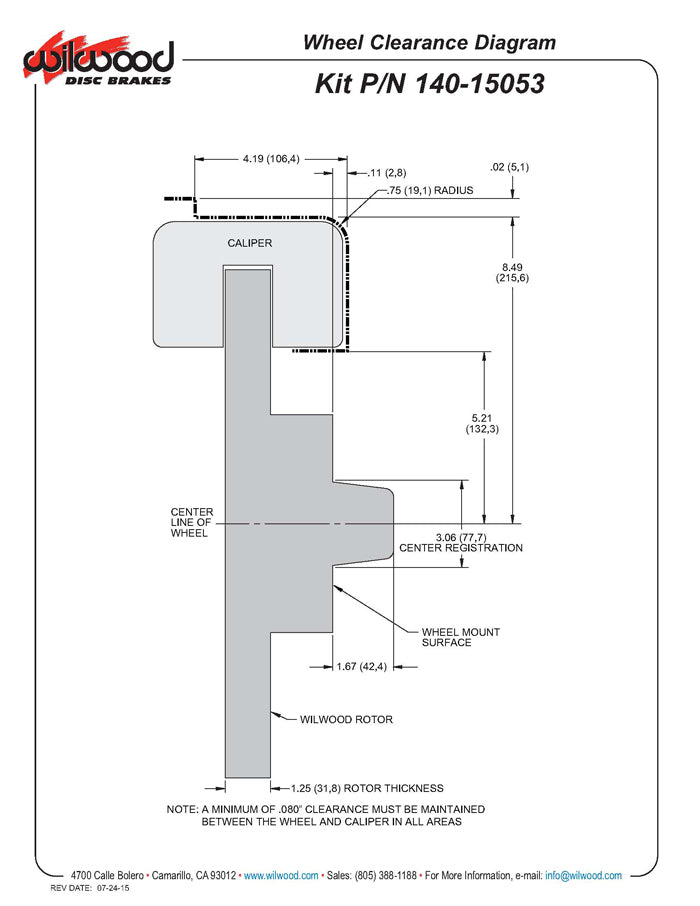

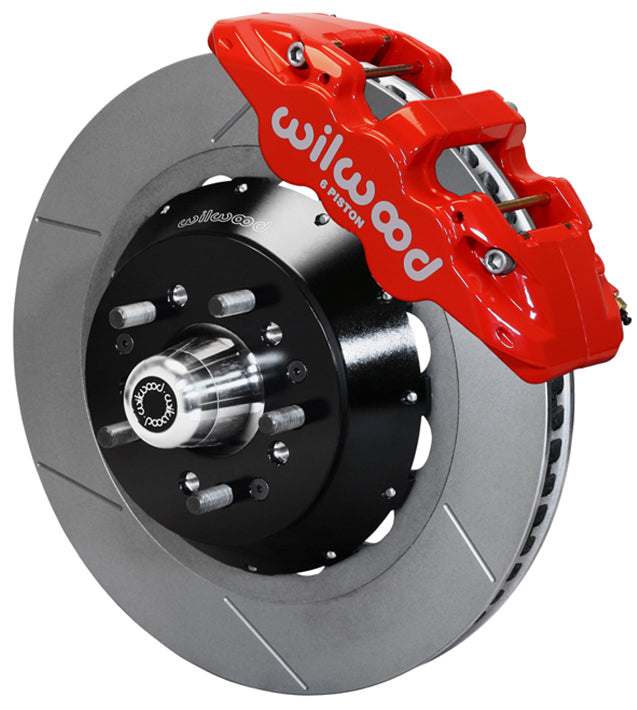

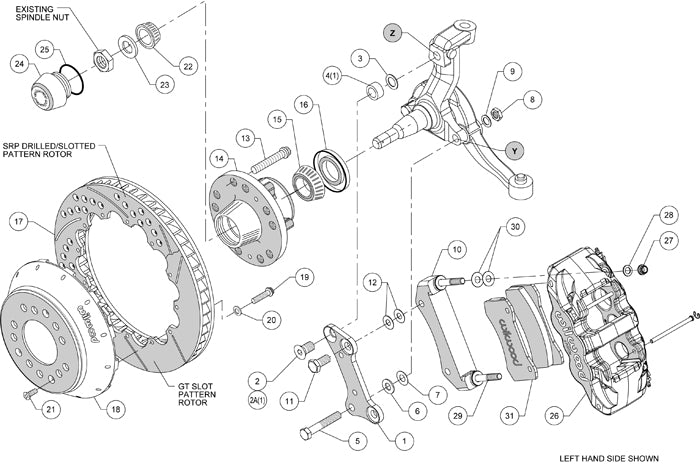

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED RED CALIPERS.

    • FITS:

    • CHEVROLET:
      • 1967-1969 CAMARO
      • 1964-1972 CHEVELLE
      • 1964-1972 EL CAMINO
      • 1970-1972 MONTE CARLO WITH DISC BRAKE SPINDLES
      • 1964-1974 CHEVY II
      • 1964-1974 NOVA
    • GMC:
      • 1971-1972 SPRINT
    • BUICK:
      • 1973-1974 APOLLO
      • 1965-1970 CENTURY
      • 1965-1972 GRAN SPORT
      • 1964-1972 SKYLARK
      • 1964-1972 SPECIAL
      • 1965-1972 SPORTSWAGON
    • OLDSMOBILE:
      • 1964-1972 CUTLASS
      • 1968-1972 CUTLASS CRUISER
      • 1964-1972 VISTA CRUISER
      • 1967-1972 4-4-2
      • 1964-1972 F85
      • 1973-1974 OMEGA
    • PONTIAC:
      • 1967-1969 FIREBIRD
      • 1964-1972 GTO
      • 1964-1972 LEMANS
      • 1964-1972 TEMPEST
      • 1969-1972 GRAND PRIX WITH DISC BRAKE SPINDLES
      • 1969 GRAND PRIX WITH DRUM BRAKE SPINDLES
      • 1971-1974 VENTURA II

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • WILWOODS AERO6 CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING BIG CAPACITY BRAKING WITH LARGE DIAMETER ROTORS. FOR CARS, ITS THE BIGGEST OF THE BIG, PROVIDING BIG BRAKE PERFORMANCE FOR SHOW AND DUAL PURPOSE STREET AND TRACK VEHICLES. KITS LISTED FOR SPECIFIC VEHICLES ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. DIRECTIONAL STAGGERED VANE ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY. THESE KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES. THEY ARE GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 19" DIAMETER WHEELS.

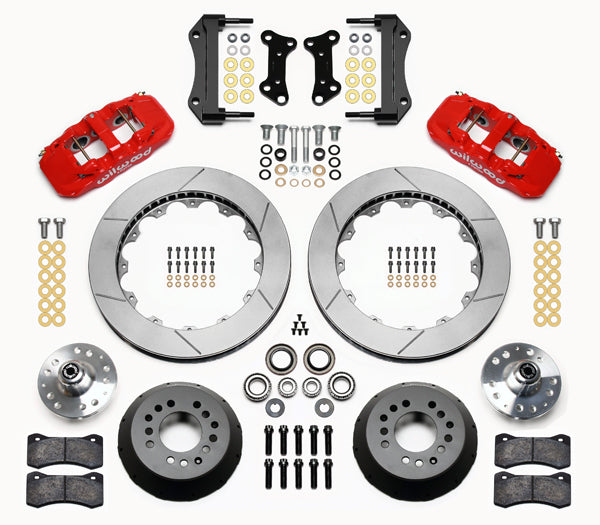

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • 1.25" THICK X 15.00" O.D. ROTORS
    • AEROLITE 6 PISTON RADIAL CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • WILWOOD SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • BRAKE HUBS
    • BEARINGS, SEALS, DUST CAPS, STUDS, &
    • ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 82 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Chevelle, Malibu, M/C, El Camino Front Kits, 1964-1972 > Front Kits
