WWE PRO SPINDLE KIT,FRONT,15" DRILLED ROTORS,RED

Brand New Wilwood AERO6 Big Brake Kit Featuring 15" Drilled Rotors with Red Calipers For Both Front Wheels (Part #140-15025-DR).

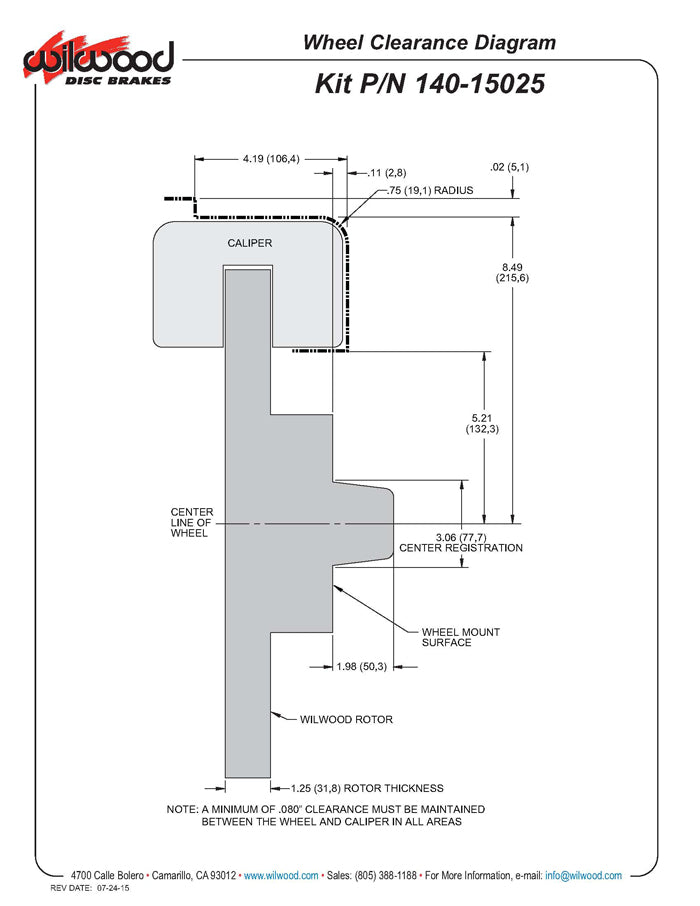

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• NOTE: This kit fits the following vehicles ONLY when used with the Wilwood ProSpindles. Stock ride height spindles available here, or the 2" drop spindles are available here.
• Art Morrison:
  • 47-53 Chevy Truck AME GT Sport Chassis (Wilwood Pro Spindle)

  • 53-67 Corvette AME GT Sport Chassis (Wilwood Pro Spindle)

  • 55-56 Ford F100 AME GT Sport Chassis (Wilwood Pro Spindle)

  • 55-57 Chevy (Auto) AME GT Sport Chassis (Wilwood Pro Spindle)

  • 55-59 Chevy Truck AME GT Sport Chassis (Wilwood Pro Spindle)

  • 59-64 Chevy (Full Size) AME GT Sport Chassis (Wilwood Pro Spindle)

• Roadster Shop:
  • Spec Chassis 2016+ All
• Wilwood:
  • ProSpindle (Std. Height and 2" Drop)

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 15” rotors provide maximum cooling for sustained high heat durability.

This kit require at least 19" diameter wheels.

Kit includes:

• 6 Piston AERO6 Calipers

• BP-20 Compound Brake Pads

• 15" O.D. x 1.25" Thick Rotors

• Rotor Hat
• Hub - Hat Mount
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 86 lbs.

You can view and download the assembly/instruction booklet here.
