50-55 MG KIT,FRONT,10.75",RED,W/LINES

BRAND NEW WILWOOD PRO SERIES DYNALITE BRAKE FRONT HUB & 10.75" DISC BRAKE KIT (PART #140-15020-R) FOR BOTH FRONT WHEELS.

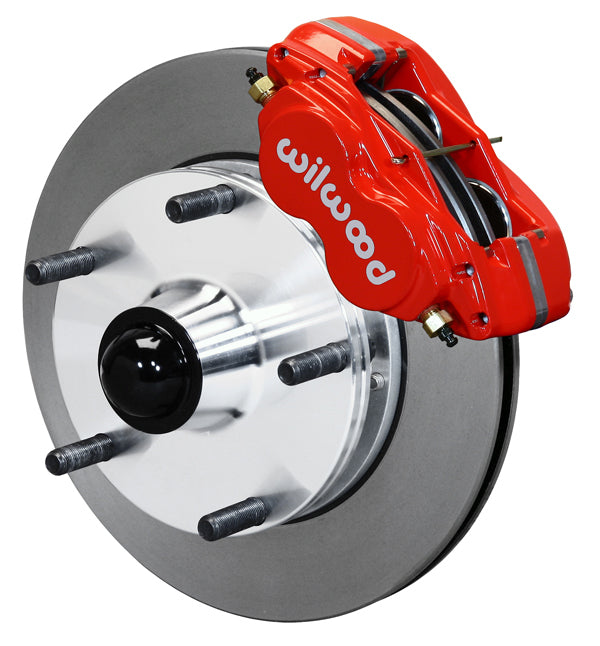

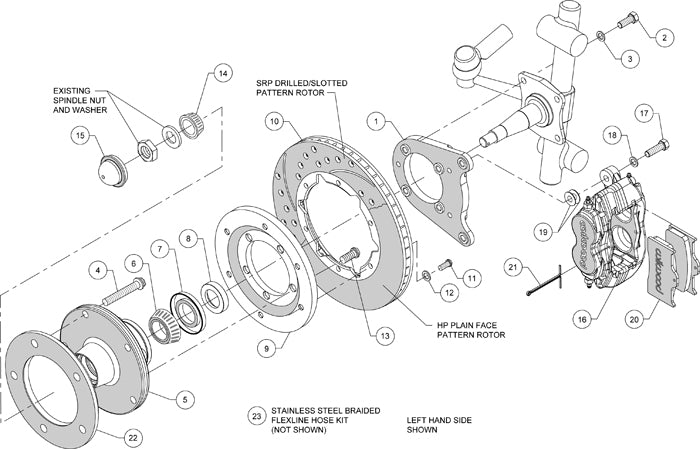

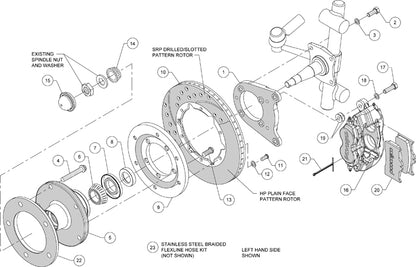

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

• 1950-1953 MG TD
• 1954-1955 MG TF

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS PRO SERIES FRONT DISC BRAKE KITS FOR 50-55 MGS OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. FEATURING A LARGE 10.75" X 0.81" ROTOR AND FORGED ALUMINUM HUB ASSEMBLY, THESE KITS ARE BUILT AROUND THE FDL-M CALIPER, WHICH IS A MODIFIED VERSION OF THE TIME-TESTED FORGED DYNALITE CALIPER, AND PROVIDES THE GREATEST AMOUNT OF WHEEL CLEARANCE OF ANY FOUR PISTON CALIPER IN ITS SIZE. THESE KITS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE ALL POPULAR 15" WHEELS, AS WELL AS MANY 14" WHEELS (SEE DIAGRAM ABOVE). FDL-M PRO-SERIES KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST.

THESE BRAKE KITS WILL FIT ALL POPULAR 15" DIAMETER WHEELS, AS WELL AS MANY 14" WHEELS (SEE DIAGRAM ABOVE).

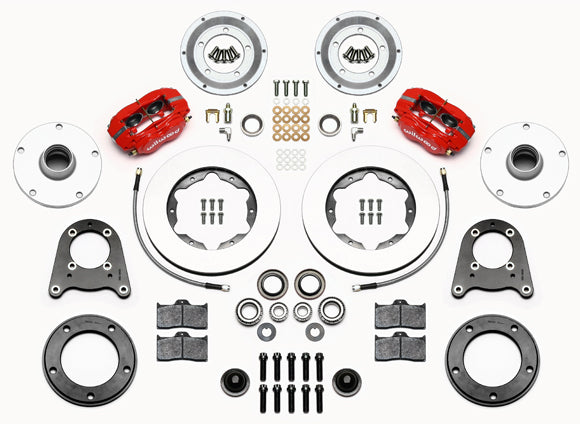

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 0.81" THICK X 10.75" O.D. ROTORS
• FORGED DYNALITE-M 4 PISTON CALIPERS - RED
• BRAKE HUBS
• HUB-TO-ROTOR ADAPTERS
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED LINE KIT WITH FITTINGS
• BEARINGS, SEALS, WASHERS, DUST CAPS, &
• ALL BOLTS, NUTS, WASHERS, AND SHIMS. NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
