37-48 FORD DRAG KIT,FRONT,FDL,10.75",DRILLED

Brand New Wilwood Forged Dynalite Drag Brake Kit Featuring 10.75" Drilled Rotors with Type III Anodized Grey Calipers For Both Front Wheels (Part # WIL 140-1501-BD).

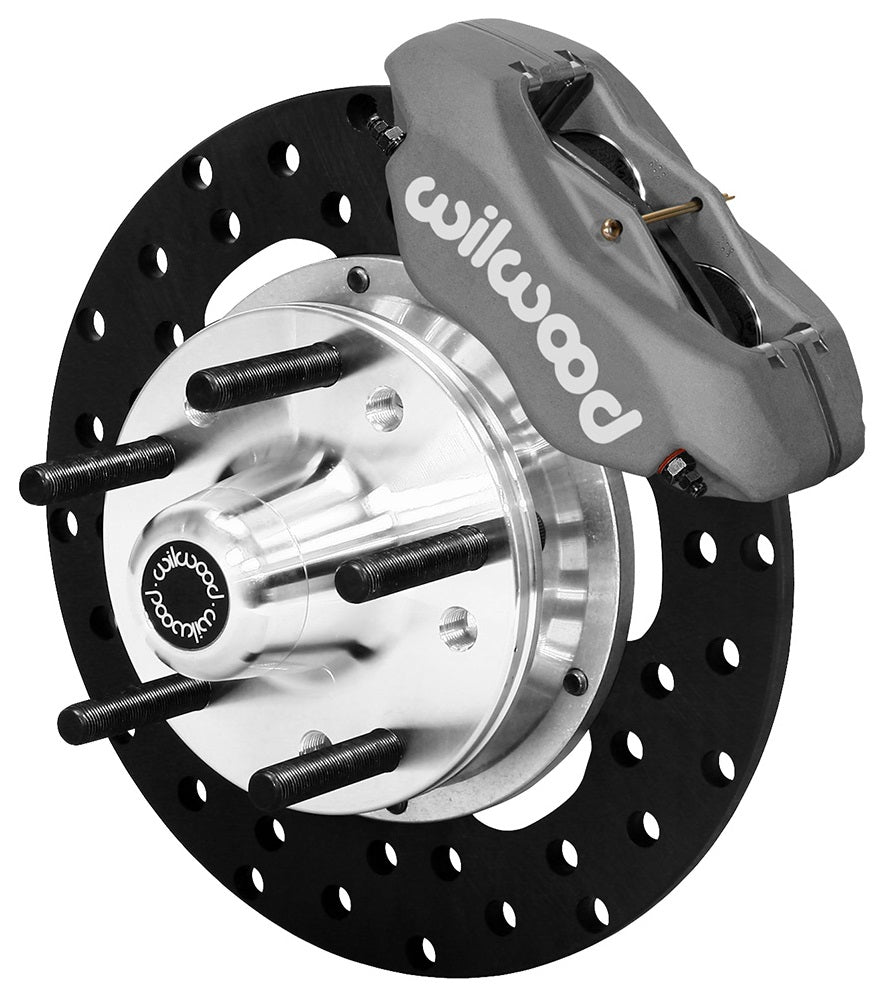

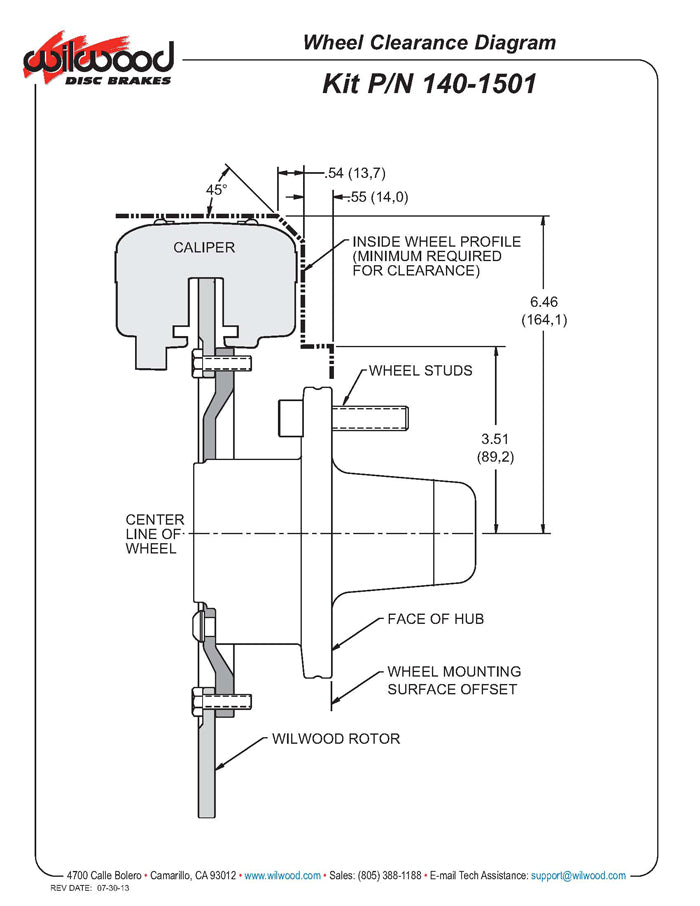

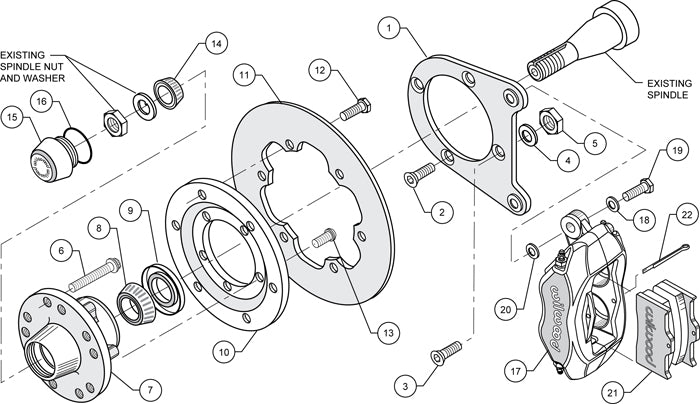

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Ford:
  • 1937-1947 1 Ton Pickup Base

  • 1937-1947 1/2 Ton Pickup Base

  • 1937-1947 3/4 Ton Pickup Base

  • 1939 Deluxe All Tudor & Fordor (922A)

  • 1940-1948 Deluxe Base

  • 1941 Model 1 GA Truck Base

  • 1941 Model 11 A Base

  • 1942 Model 2 GA Special Base

  • 1942 Model 21 A Deluxe Base

  • 1937 Model 74 All Tudor / Fordor / SW

  • 1937 Model 78 All Tudor / Fordor / SW

  • 1938 Model 81 A All Tudor / Fordor / SW

  • 1938 Model 82 A All Tudor / Fordor / SW

  • 1938 Model 85 Base

  • 1940 Pickup Base

  • 1937-1947 Sedan Delivery Base

  • 1939-1940 Standard Base

  • 1941-1948 Super Deluxe BaseFDL

Front Drag kits are drag racing’s most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.

This kit require at least 15" diameter wheels.

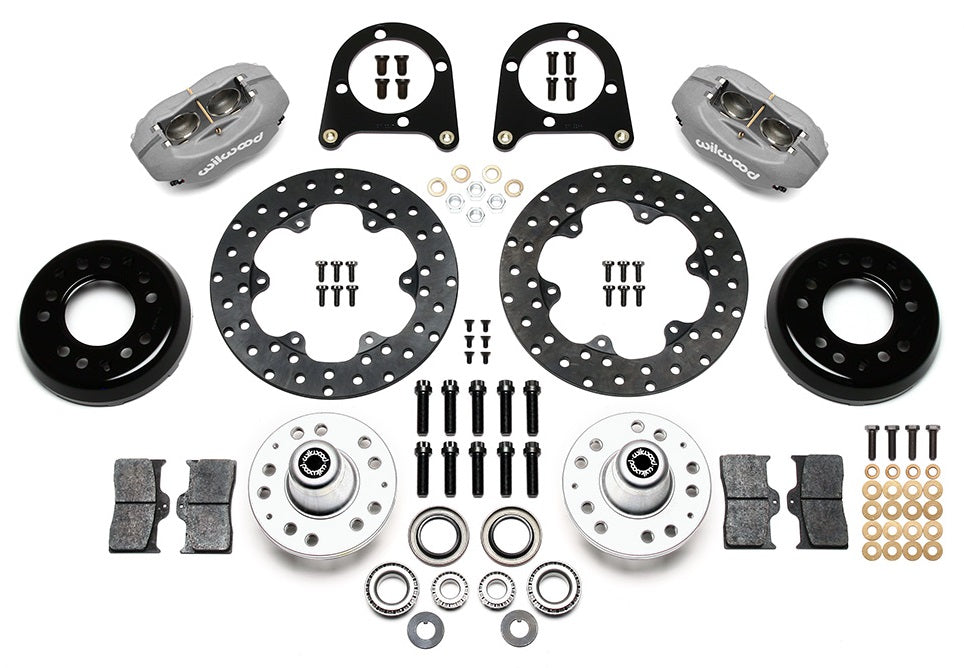

Kit includes parts for both front wheels:

• 4 Piston Dynalite Calipers
• 0.35" Thick x 10.75" O.D. Rotors
• BP-10 Compound Brake Pads
• Rotor Hub
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.

Complete kit weighs approximately 35 lbs.

You can view and download the assembly/instruction booklet here.
