55-57,59-64 CHEVY KIT,63-64 CORVETTE,FRONT,FDL-M,11.50"

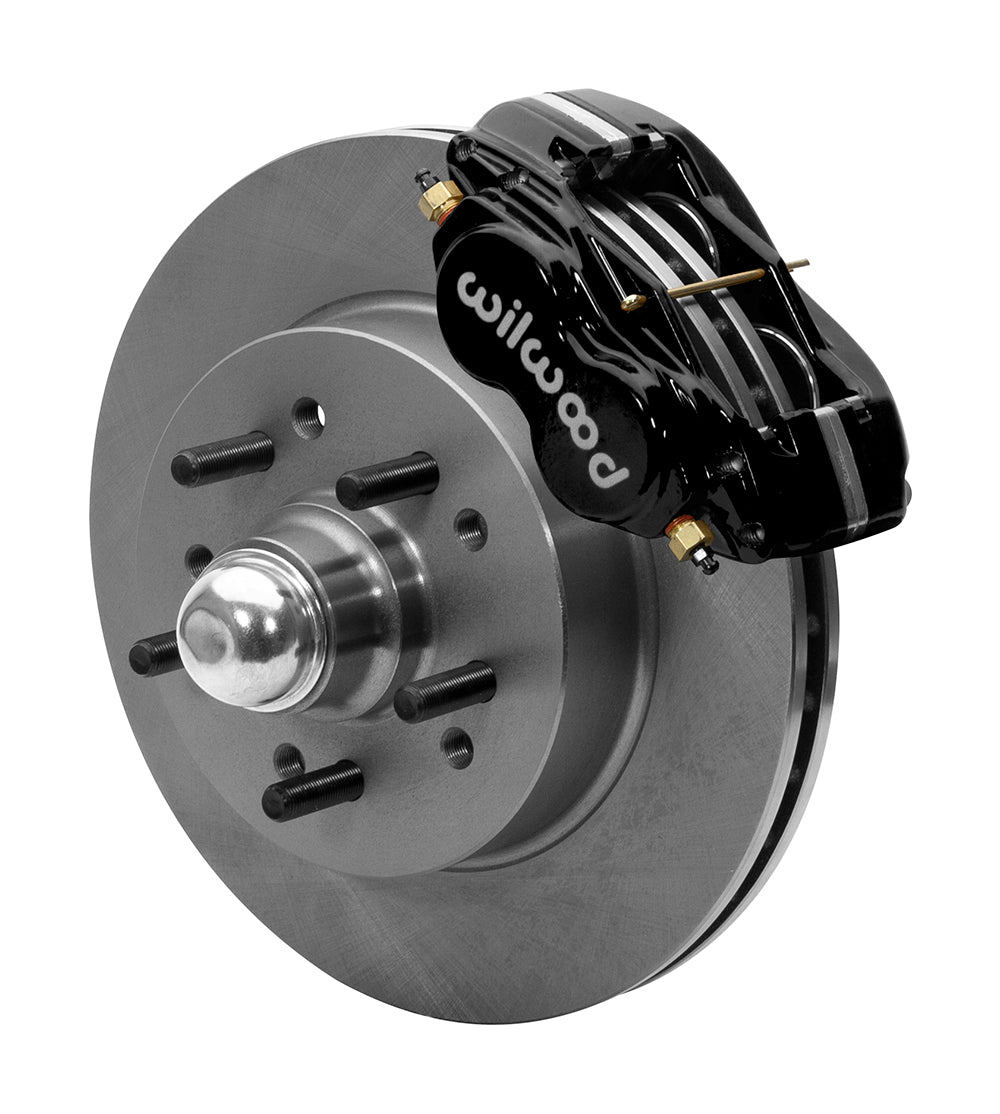

BRAND NEW WILWOOD CLASSIC SERIES BOLT-ON FRONT 11.50" DISC BRAKE KIT (PART #140-14663) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR CHEVROLET FULL SIZE VEHICLES INCLUDING 1955 TO 1957 CHEVY, 1958 TO 1964 IMPALA AND 1963 TO 1964 CORVETTE OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. A COMPLETELY NEW KIT DESIGN, FEATURING A LARGE 11.50" X 1.00" ROTOR AND HUB ASSEMBLY. BASED ON THE FORGED DYNALITE-M CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR AFTERMARKET 15" (DISC BRAKE) WHEELS. FDL-M 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS ARE COMPLETE WITH CALIPERS, ROTORS AND, HUB ASSEMBLY BRACKETS, HARDWARE.

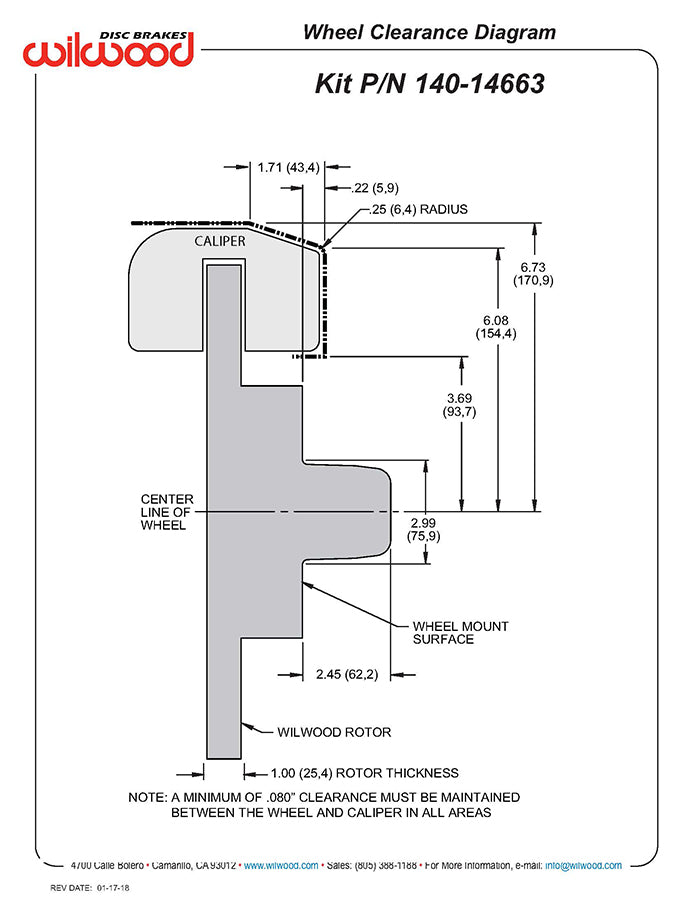

NOTE: THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

COMPATIBLE WITH:

• CHEVROLET:
• 1955-1957 BEL AIR, NOMAD, ONE-FIFTY SERIES, TWO-TEN SERIES, SEDAN DELIVERY, WITH FACTORY DRUM SPINDLE
• 1957 DEL RAY, WITH FACTORY DRUM SPINDLE
• 1959-1964 BEL AIR, BISCAYNE, IMPALA, WITH FACTORY DRUM SPINDLE
• 1959-1960 SEDAN DELIVERY, EL CAMINO, WITH FACTORY DRUM SPINDLE
• 1959-1961 BROOKWOOD, KINGSWOOD, PARKWOOD, NOMAD, WITH FACTORY DRUM SPINDLE
• 1963-1964 CORVETTE, WITH FACTORY DRUM SPINDLE

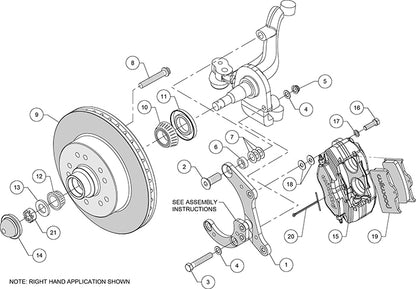

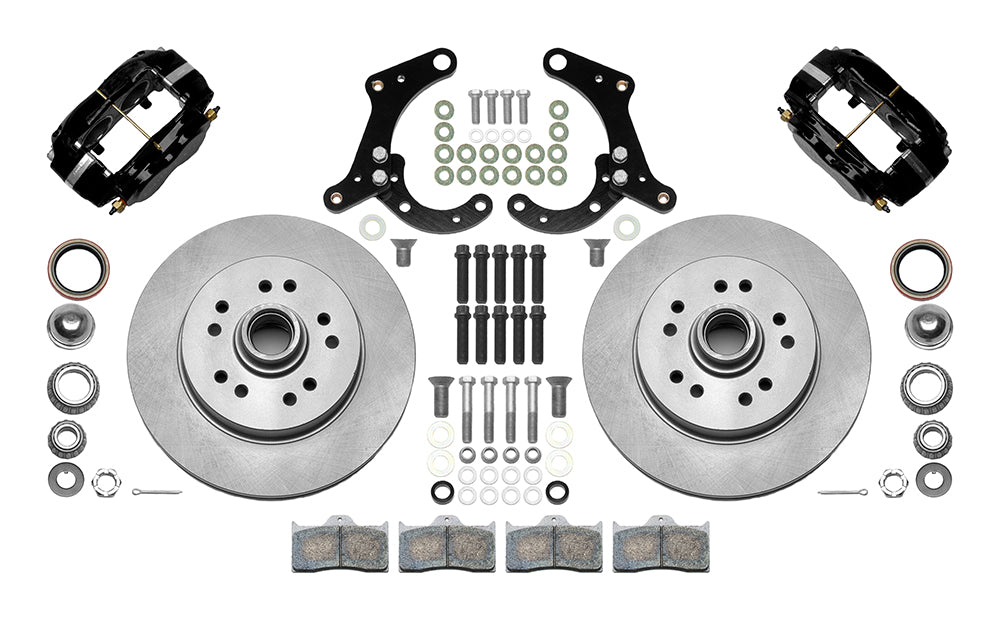

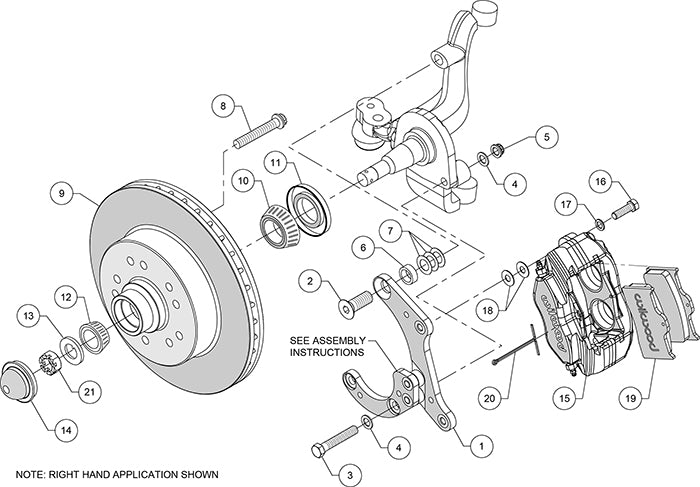

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.00" THICK X 11.50" O.D. 1-PIECE HUBS AND ROTORS
• FORGED DYNALITE FDL-M 4 PISTON CALIPERS
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 64 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
