74-80 PINTO KIT,5x5",FRONT,DP6,12.19",DR

BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT 5X5" HUB & 12.19" DISC BRAKE KIT (PART #140-14531-D) FOR BOTH FRONT WHEELS.

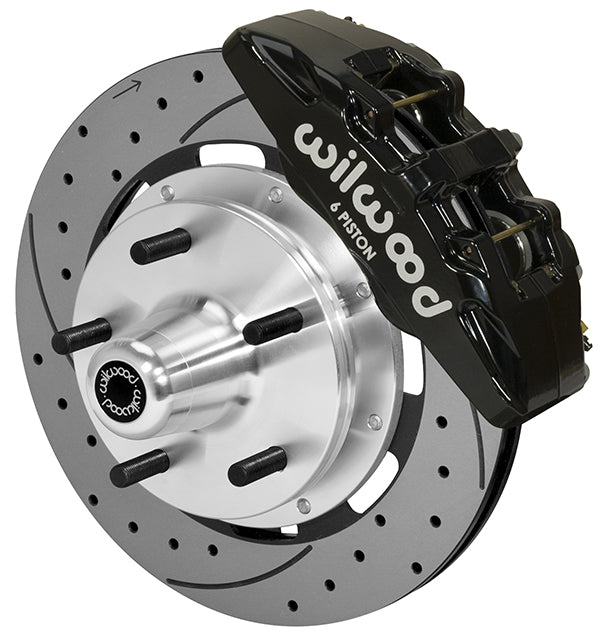

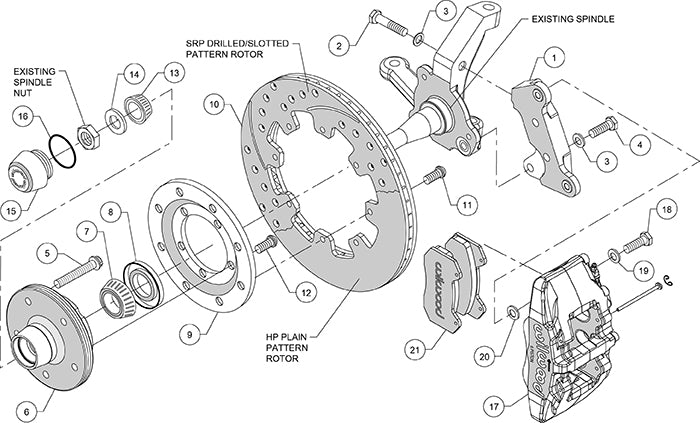

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

FITS:

• FORD:
  • 1974-1978 MUSTANG II***
  • 1974-1980 PINTO***
• MERCURY:
  • 1975-1980 BOBCAT***
• ANY STREET ROD USING PINTO/MUSTANG II SPINDLES***
• ***THIS KIT FITS THE ABOVE APPLICATIONS WITH A 5X5" BOLT PATTERN ON THE WHEELS***

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR THIS GROUP OF TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER SIX PISTON KITS. THESE KITS ARE SPECIALLY DESIGNED FOR 5 X 5.00" BOLT CIRCLE WHEELS. DYNAPRO 6 KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

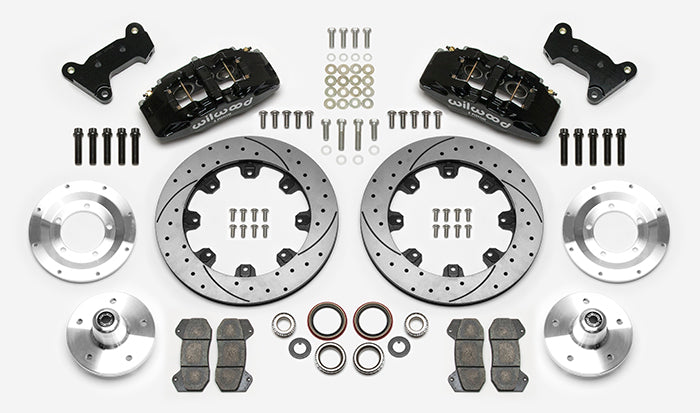

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
• DYNAPRO 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HUBS - 5X5" BOLT PATTERN
• BEARINGS, SEALS, WASHERS, STUDS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 53 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
