64-70 CHEVY C10,C15 FULL DISC BRAKE KIT,11.86"/11" ROTORS,BLACK CALIPERS

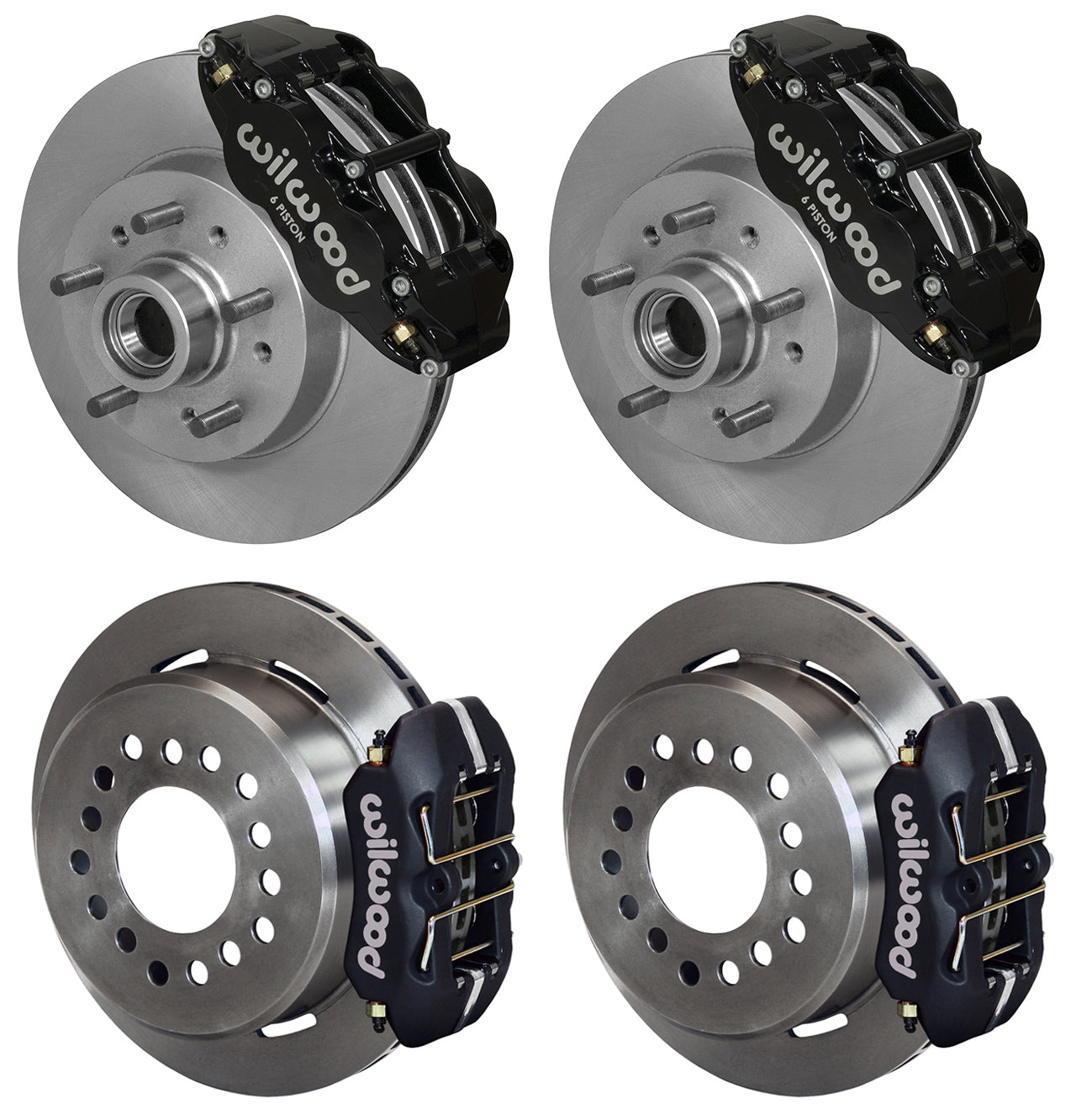

Brand New Wilwood Classic Bolt-On Front & Rear Disc Brake Kit.

Complete Kit Includes:

• Forged Superlite 6 Piston Classic Front 11.86" Disc Brake Kit (Part #140-14474) for Both Front Wheels
• Low-Profile Dynapro 4 Piston Bolt-On Rear 11.00" Disc Brake Kit with Parking Brake (Part #140-11385) for Both Rear Wheels

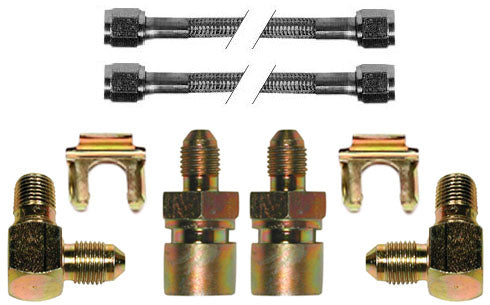

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

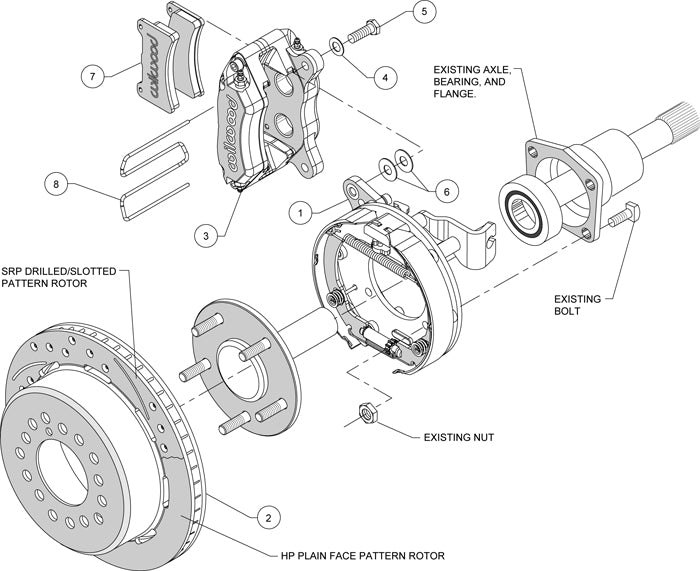

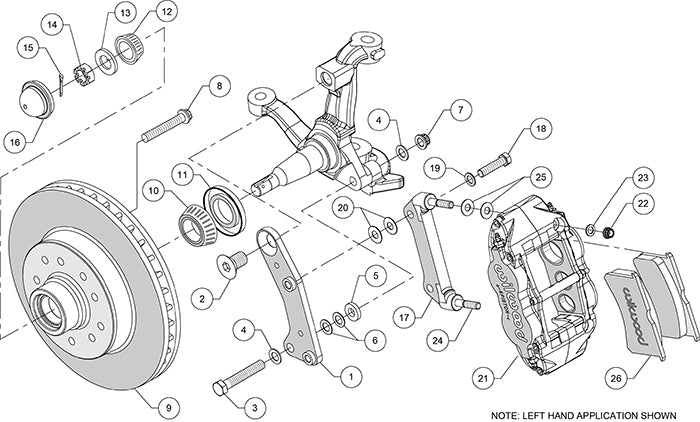

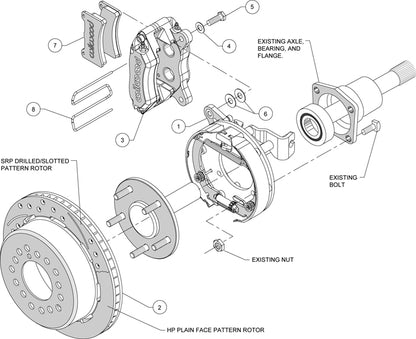

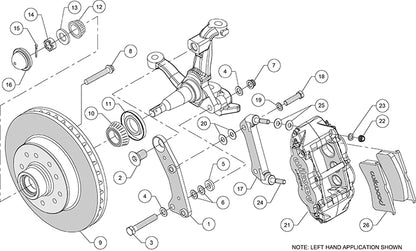

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Chevy:
  • 1964-1970 C10 Pickup 4x2
  • 1964-1966 Suburban 4x2
  • 1967-1970 C10 Suburban 4x2
  • 1964-1967 C10 Panel 4x2
  • 1970 Blazer 4x2
• GMC:
  • 1964-1966 1000 Series 4x2
  • 1967-1970 C15/C1500 Pickup 4x2
  • 1964-1966 Suburban 4x2
  • 1967-1970 C15/C1500 Suburban 4x2
  • 1970 Jimmy 4x2

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, Wilwood's Classic Series front disc brake kits for Chevrolet and GMC C10 / C15 1/2 Ton Trucks from 1964 to 1970, offer disc brake upgrade solutions for OEM Drum spindles.  A completely new kit design, featuring a one piece 11.86" x 1.25" rotor and hub assemblies.  Based on the venerable Forged Billet Narrow Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast.  Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels.  FNSL6R 1 piece kits can be used with either manual or power boost master cylinders.

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits require at least 15" diameter wheels.

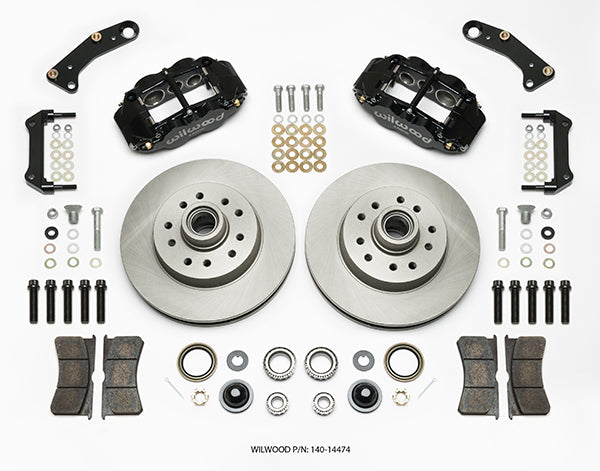

Front kit includes parts for both front wheels:

• 1.25" Thick x 11.86" O.D. 1-Piece Rotors
• Forged Superlite 6 Piston Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Bearings, Races, Seals, Dust Caps, Studs, &
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both front wheels

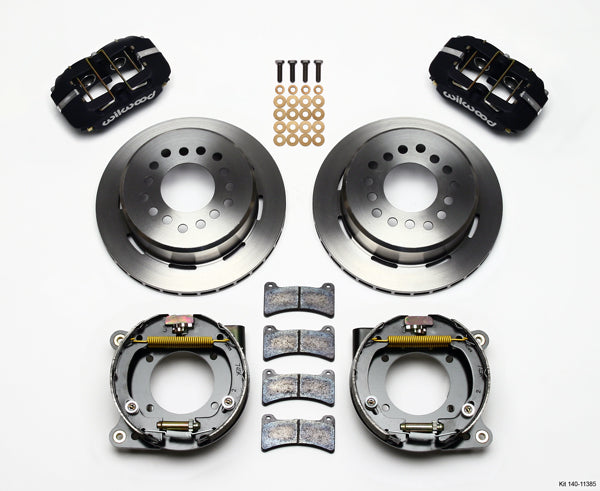

Rear kit includes parts for both rear wheels:

• .810" Thick x 11.00" O.D. 1-Piece Rotors
• Low-Profile Dynapro 4 Piston Calipers - Black
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• All bolts, washers, and shims necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 120 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
