64-70 CHEVY C10 TRUCK FRONT DISC BRAKE KIT,11.86" ROTORS,6 PISTON BLACK CALIPERS

BRAND NEW WILWOOD CLASSIC BOLT-ON FRONT HUB & 11.86" 1- PIECE DISC BRAKE KIT (PART #140-14474) FOR BOTH FRONT WHEELS.

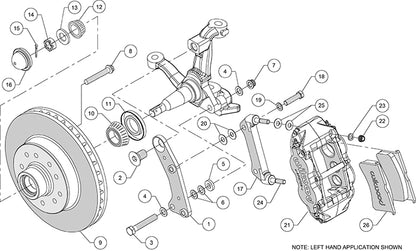

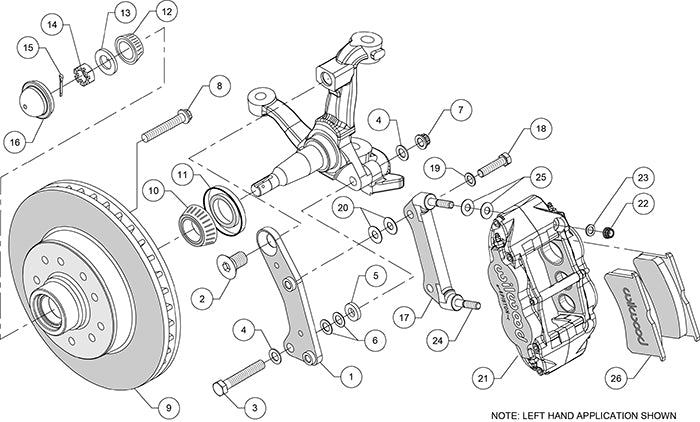

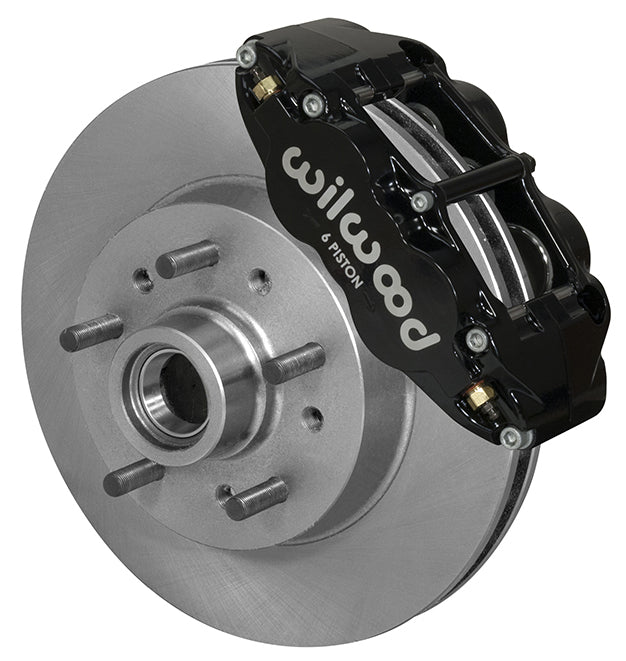

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• CHEVY:
  • 1964-1970 C10 PICKUP 4X2
  • 1964-1966 SUBURBAN 4X2
  • 1967-1970 C10 SUBURBAN 4X2
  • 1964-1967 C10 PANEL 4X2
  • 1970 BLAZER 4X2
• GMC:
  • 1964-1966 1000 SERIES 4X2
  • 1967-1970 C15/C1500 PICKUP 4X2
  • 1964-1966 SUBURBAN 4X2
  • 1967-1970 C15/C1500 SUBURBAN 4X2
  • 1970 JIMMY 4X2

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR CHEVROLET AND GMC C10 / C15 1/2 TON TRUCKS FROM 1964 TO 1970, OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. A COMPLETELY NEW KIT DESIGN, FEATURING A ONE PIECE 11.86" X 1.25" ROTOR AND HUB ASSEMBLIES. BASED ON THE VENERABLE FORGED BILLET NARROW SUPERLITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS. FNSL6R 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS.

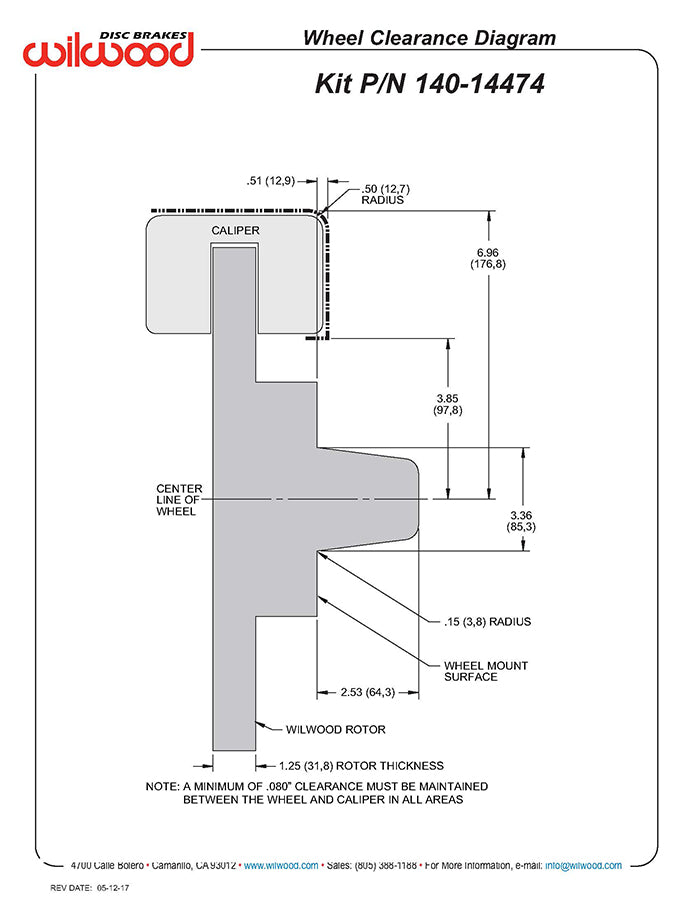

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

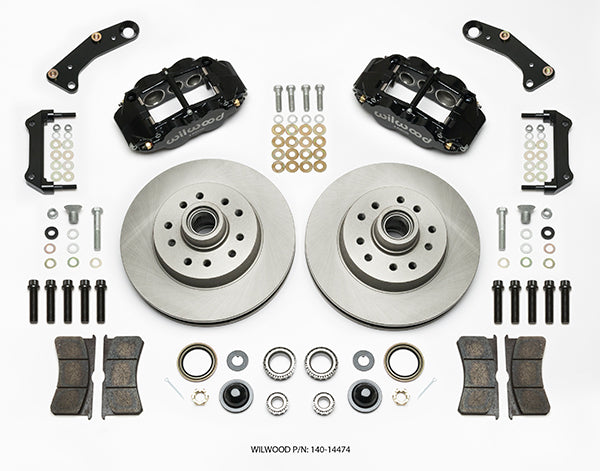

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.25" THICK X 11.86" O.D. 1-PIECE ROTORS
• FORGED SUPERLITE 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS, RACES, SEALS, DUST CAPS, STUDS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 80 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
