48-56 FORD F-100,FRONT,SL4,11.72",GRAY

BRAND NEW WILWOOD CLASSIC SERIES 11.72" FRONT DISC BRAKE KIT (PART #140-14190) FOR BOTH FRONT WHEELS.

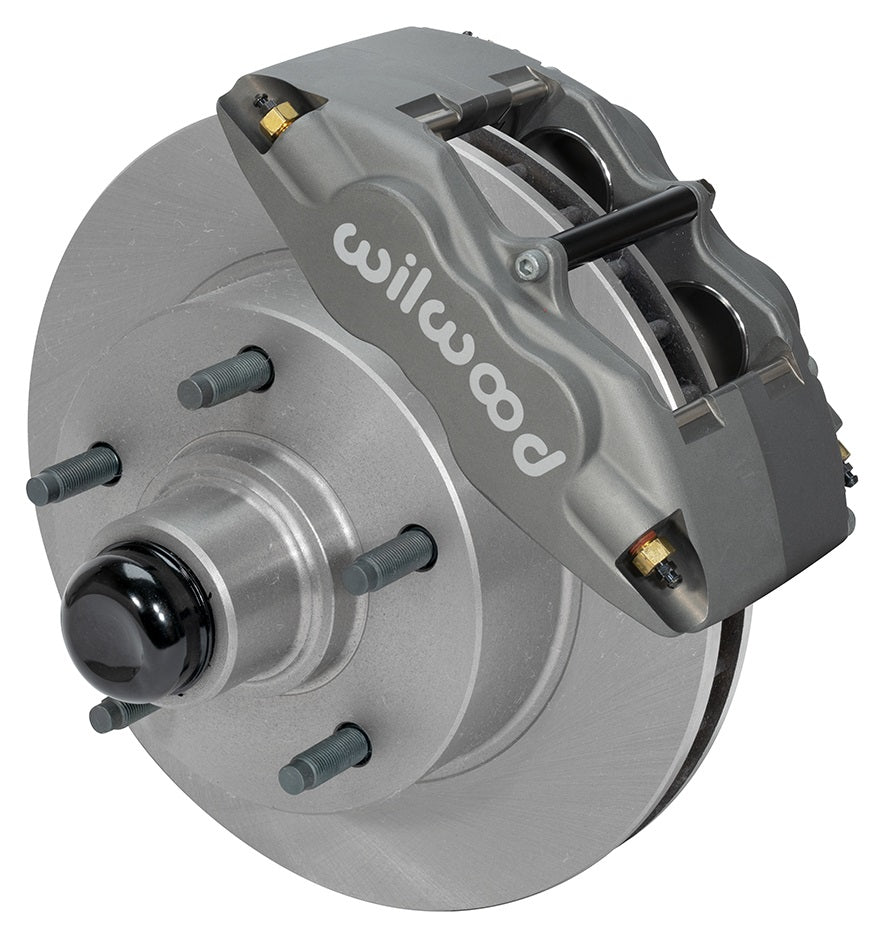

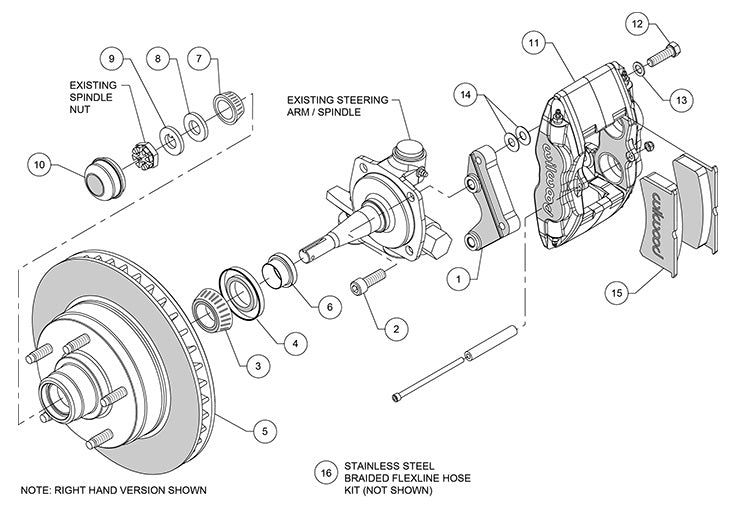

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FITS:

• FORD:
  • 1948-1955 F SERIES
  • 1948-1952 F1
  • 1953-1956 F-100

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR FORD TRUCKS FROM 1948 TO 1956, OFFERING DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. A COMPLETELY NEW KIT DESIGN, FEATURING A ONE PIECE 11.72" X 1.19" ROTOR AND HUB ASSEMBLY. BASED ON THE VENERABLE FORGED BILLET SUPERLITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS. FSL4 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE WITH CALIPERS, ROTORS AND HUB ASSEMBLY, BRACKETS, AND HARDWARE.

THESE DISC BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

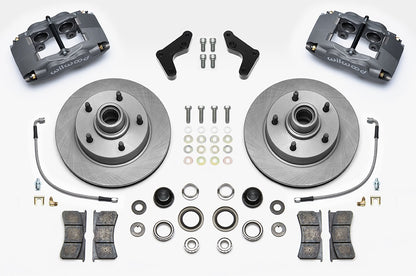

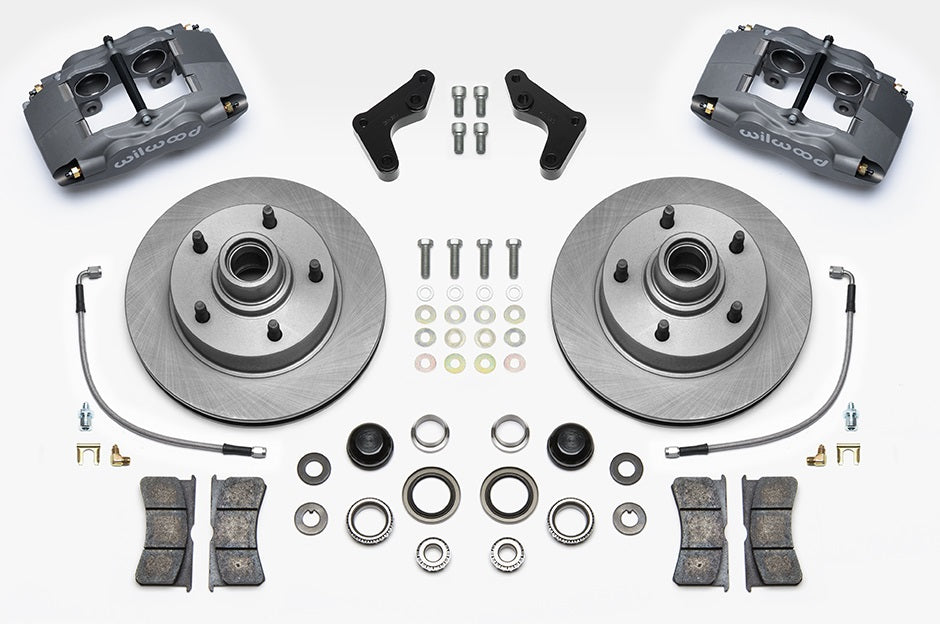

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.19" THICK X 11.72" O.D. ROTORS
• SUPERLITE 4 PISTON RADIAL CALIPERS - GRAY
• CALIPER MOUNTING BRACKETS
• WILWOOD BP-10 SMART COMPOUND BRAKE PADS,
• STEEL BRAIDED LINES WITH FITTINGS
• BEARINGS, SEALS, WASHERS, DUST CAPS, &
• ALL BOLTS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 78 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
