15-23 MUSTANG FULL DISC BRAKE KIT,14" DRILLED ROTORS,RED CALIPERS
15-23 MUSTANG FULL DISC BRAKE KIT,14" DRILLED ROTORS,RED CALIPERS
SKU:WIL 140-13886X4DR
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

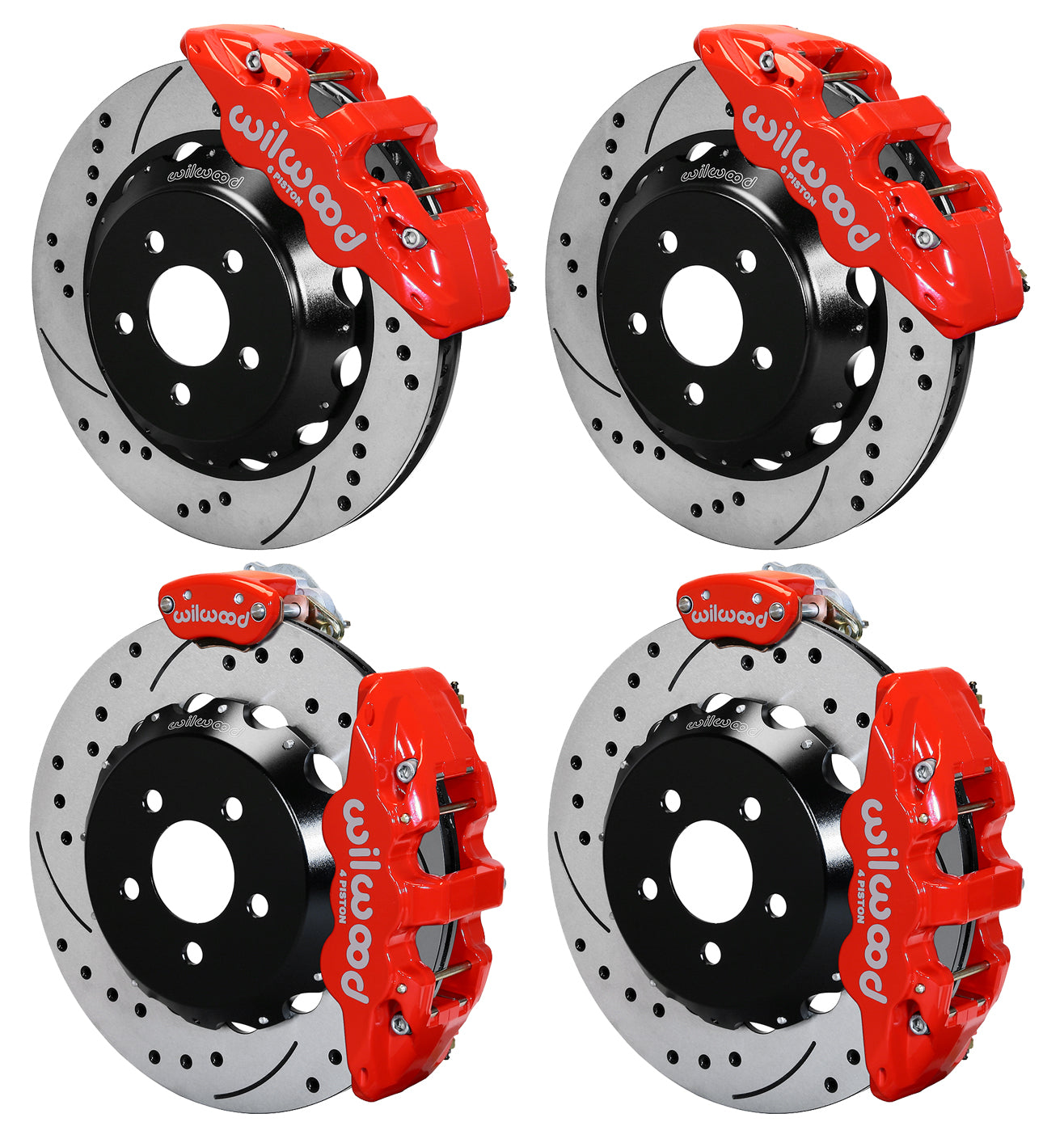

Brand New Wilwood Complete Premium Big Brake 14" Front and Rear Disc Brake Kit.
Complete Kit Includes:
- AERO6 6 Piston Bolt-On Front 14" Disc Brake Kit with Brake Lines and Fittings (Part #140-13886-DR) for Both Front Wheels
- AERO4 4 Piston Bolt-On Rear 14" Disc Brake Kit with MC4 Parking Brake Calipers, Cables, Brake Lines, and Fittings (Part #140-13888-DR) for Both Rear Wheels

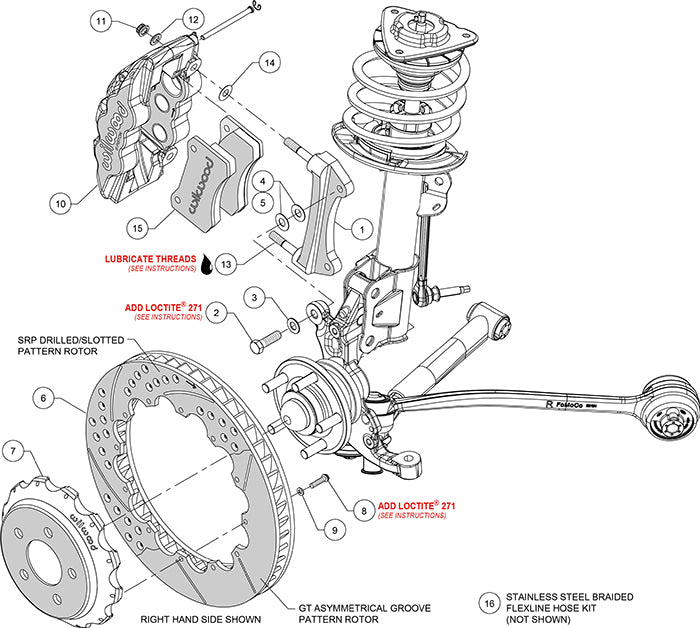

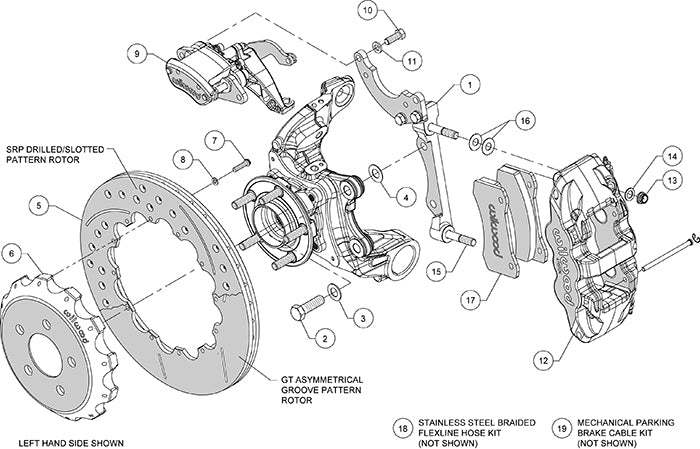

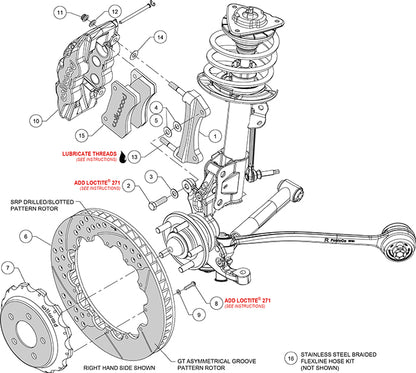

See the lists & diagrams below for a detail of the parts included.
Fits:
- Ford:
- 2015 Mustang Base
- 2019-2020 Mustang Bullitt
- 2015-2023 Mustang Ecoboost
- 2015-2023 Mustang Ecoboost Premium
- 2020-2023 Mustang GT
- 2015-2019 Mustang GT (except GT350)
- 2015 Mustang GT 50 Years Anniversary Edition (except GT350)
- 2020-2023 Mustang GT Premium
- 2015-2019 Mustang GT Premium (Except GT350)
- 2021-2023 Mustang Mach 1
- 2016-2017 Mustang V6
Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 15.00” rotors provide maximum cooling for sustained high heat durability.
AERO4-MC4 Big Brake Rear Axle Kits replace the factory disc brakes and use the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4R calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
These Big Brake kits require at least 18" diameter wheels.

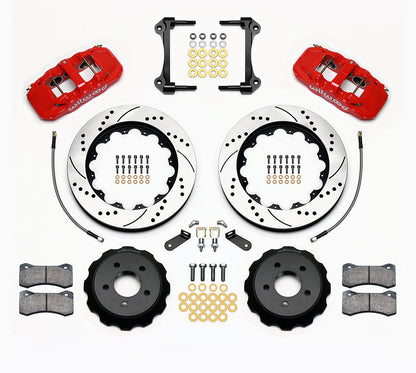

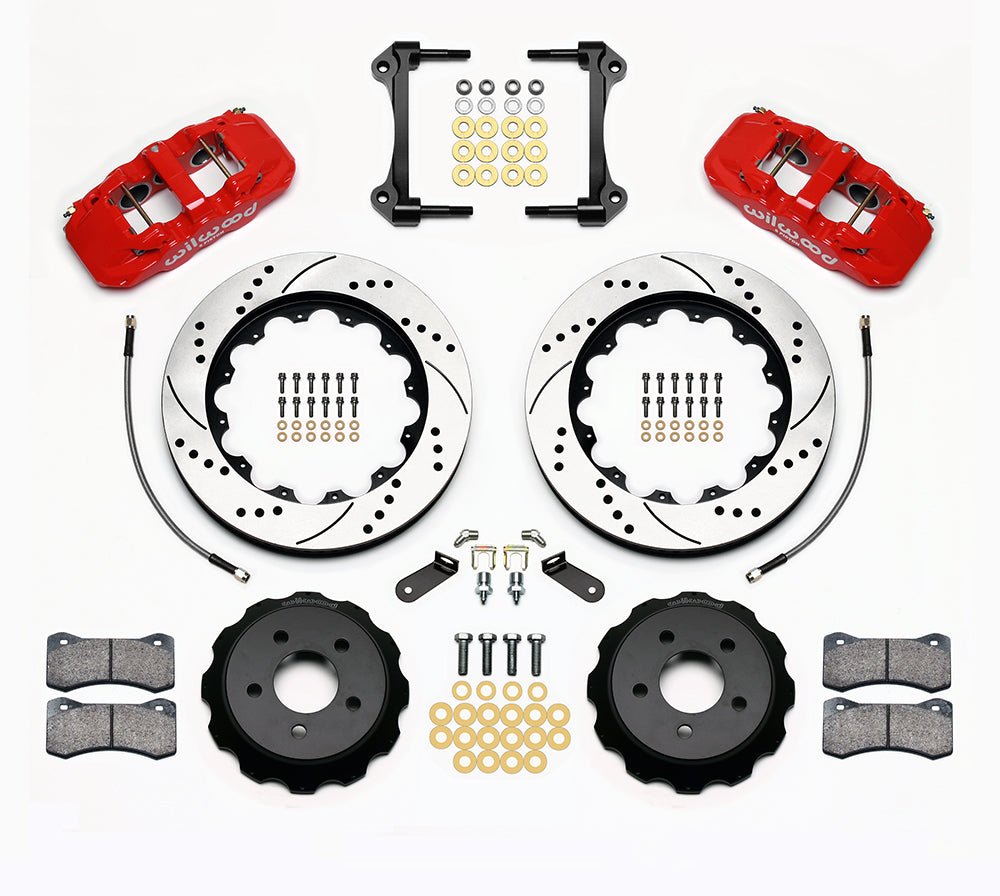

Kit includes parts for both front wheels:
- Drilled & Slotted, 1.25" Thick x 14.00" O.D. Rotors
- AERO6 Calipers - Red
- Caliper Mounting Brackets
- BP-20 Smart Compound Brake Pads
- Brake Hats
- Steel Braided Lines with Fittings
- All bolts, washers, and nuts necessary to install the complete braking system on both front wheels

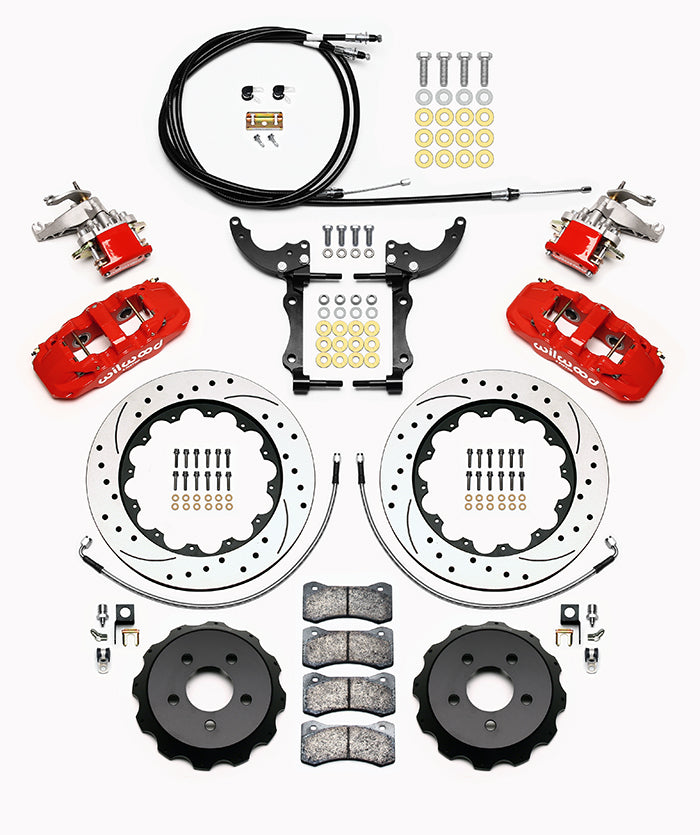

Kit includes parts for both rear wheels:
- Drilled & Slotted, .810" Thick x 14.00" O.D. Rotors
- AERO4 Calipers - Red
- MC4 Parking Brake Calipers - Red
- Caliper Mounting Brackets
- BP-10 Smart Compound Brake Pads
- Brake Hats
- Steel Braided Lines with Fittings
- Parking Brake Cable Kit
- All bolts, washers, and nuts necessary to install the complete braking system on both rear wheels
Complete kit weighs approximately 135 lbs.
You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
