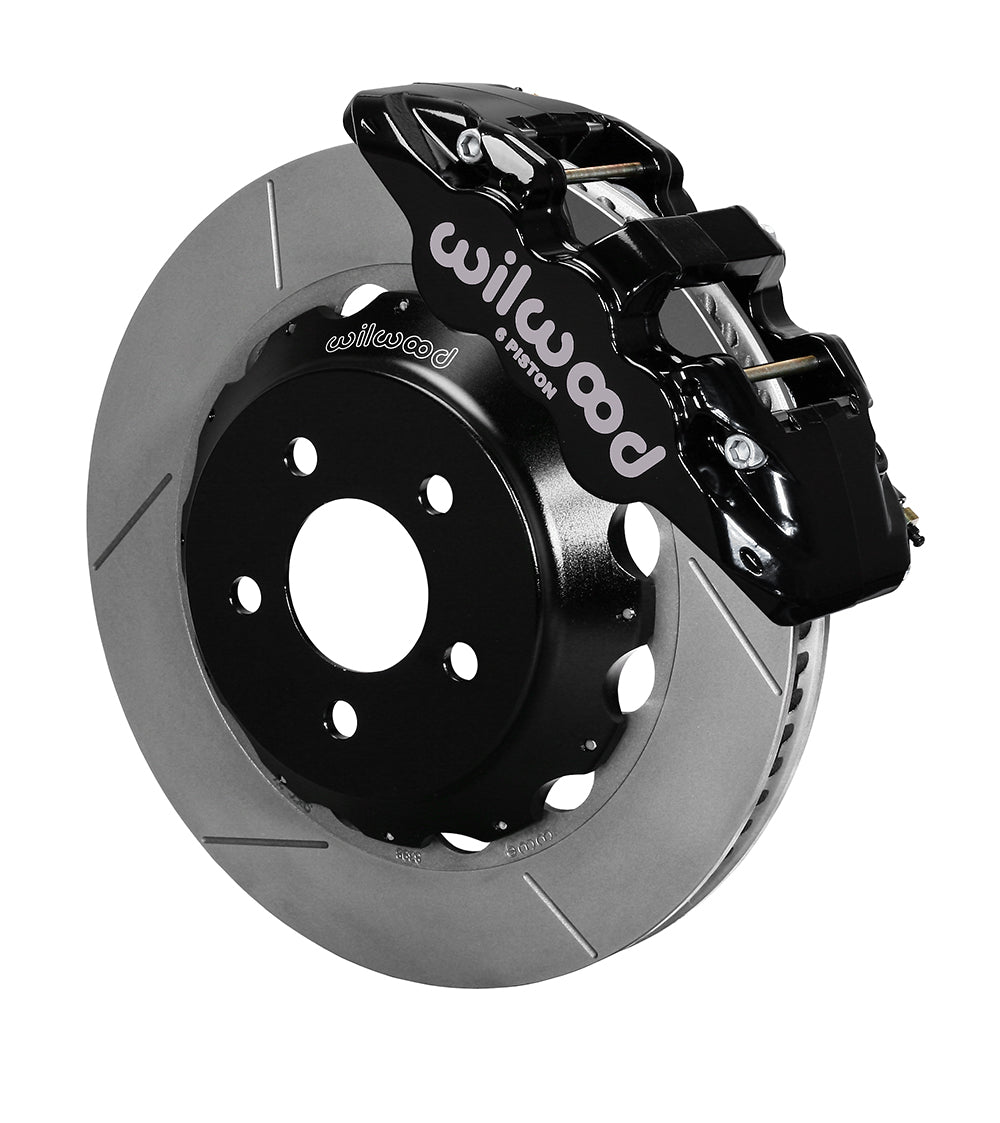

15-23 MUSTANG,FRONT,AERO6 BLACK CALIPERS,14" ROTORS

BRAND NEW WILWOOD BOLT-ON FRONT PARKING BRAKE 14" DISC BRAKE KIT (PART #140-13886) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

AERO6 CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING BIG CAPACITY BRAKING WITH LARGE DIAMETER ROTORS FOR HEAVY WEIGHT AND EXTREME DUTY VEHICLES. FOR CARS, ITS THE BIGGEST OF THE BIG PROVIDING BIG BRAKE PERFORMANCE FOR SHOW AND DUAL PURPOSE STREET AND TRACK VEHICLES. FOR TRUCKS AND SUVS, IT PROVIDES BIG STOPPING POWER FOR TOWING, OFF-ROAD, AND ENHANCED BRAKING WITH WHEEL AND TIRE UPGRADES. KITS LISTED FOR SPECIFIC VEHICLES ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. DIRECTIONAL STAGGERED VANE 14.00" TO 15.00" ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

COMPATIBLE WITH:

• FORD:
• 2015 MUSTANG BASE

• 2019-2020 MUSTANG BULLITT

• 2015-2023 MUSTANG ECOBOOST

• 2015-2023 MUSTANG ECOBOOST PREMIUM

• 2020-2023 MUSTANG GT

• 2015-2019 MUSTANG GT (EXCEPT GT350)

• 2015 MUSTANG GT 50 YEARS ANNIVERSARY EDITION (EXCEPT GT350)

• 2020-2023 MUSTANG GT PREMIUM

• 2015-2019 MUSTANG GT PREMIUM (EXCEPT GT350)

• 2021-2023 MUSTANG MACH 1

• 2016-2017 MUSTANG V6

• 1964-1966 MUSTANG W/ RIDETECH HUB SPINDLE

• 1987-1993 MUSTANG W/ RIDETECH SLA SUSPENISON W/HUB SPINDLE

• 1965-1979 F-100 W/ RIDETECH HUB SPINDLE

• 1960-1965 FALCON W/ RIDETECH HUB SPINDLE
• MERCURY:
• 1960-1965 COMET W/ RIDETECH COIL/AIR SUSPENSION W/ HUB SPINDLE

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.25" THICK X 14.00" O.D. ROTORS
• AERO6 CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-20 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• STEEL BRAIDED LINES WITH FITTINGS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 67 LBS.

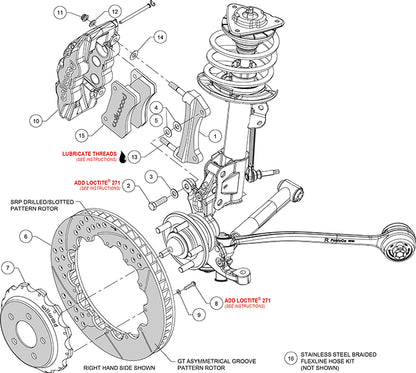

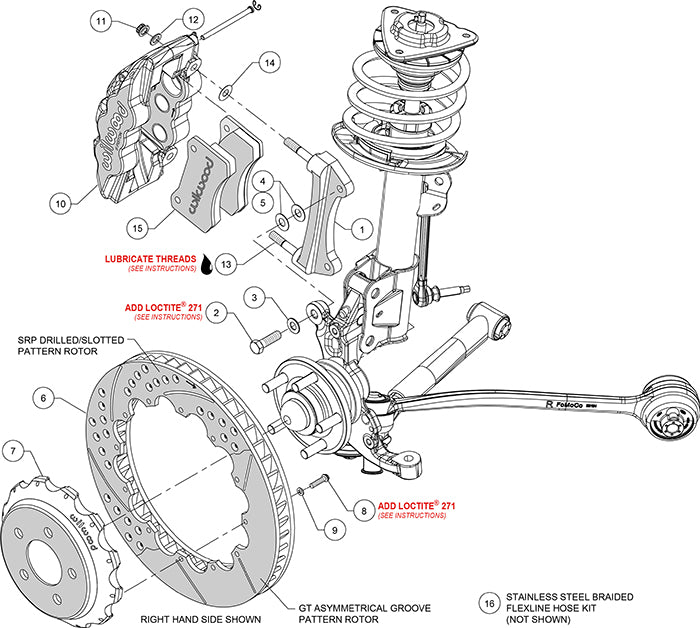

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
