11-19 GM 2500HD,3500HD FULL DISC BRAKE KIT,13" ROTORS,BLACK CALIPERS

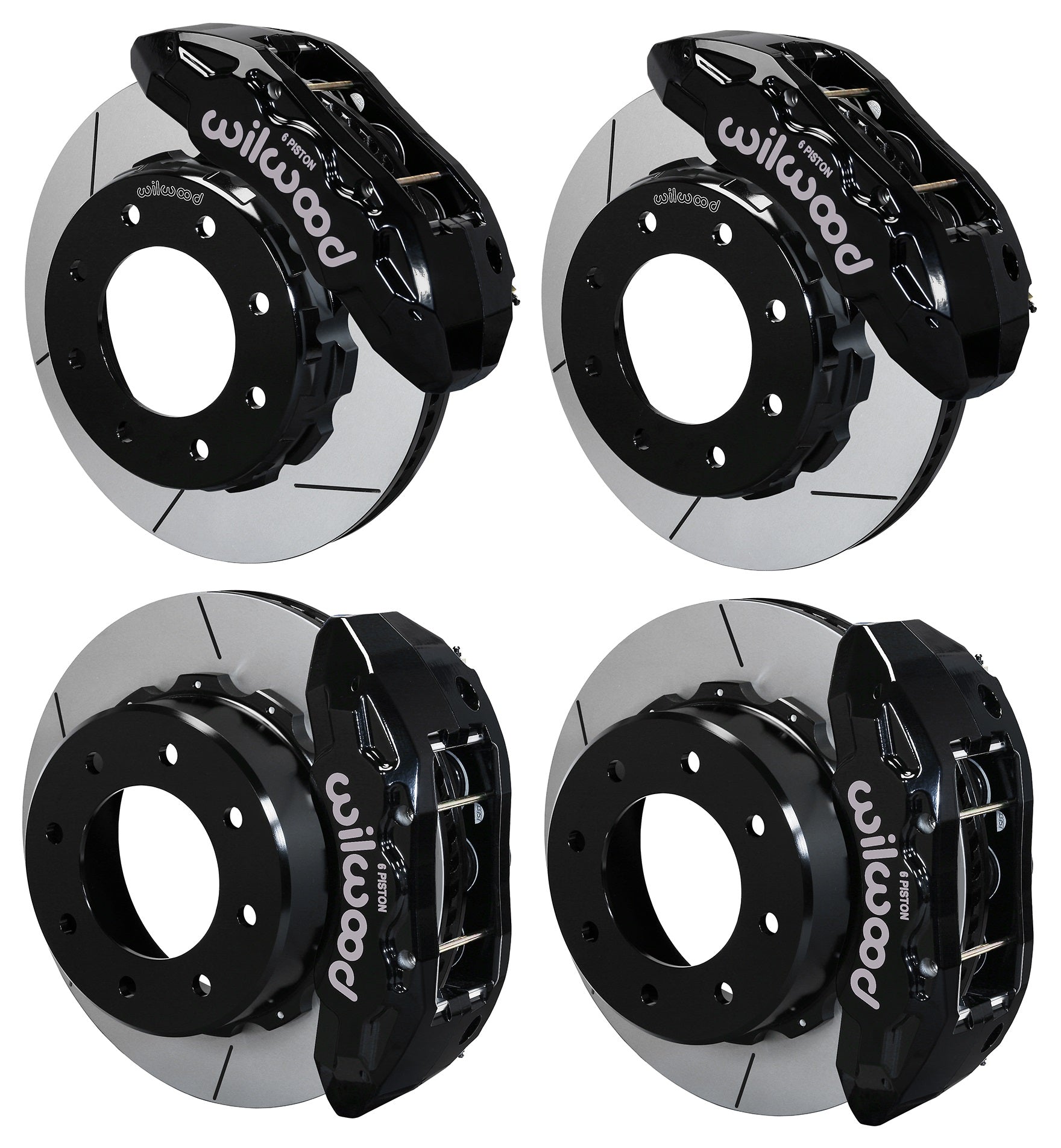

Brand New Wilwood Complete Big Brake 15" Front & 15.50" Rear Disc Brake Kit.

Complete Kit Includes:

• TX6R 6 Piston Bolt-On Front 15" Disc Brake Kit (Part #140-13873) for Both Front Wheels
• TX6R 6 Piston Bolt-On Rear 15.50" Disc Brake Kit (Part #140-13874) for Both Rear Wheels
• Full Line Kit for the Front with Steel Braided Lines and necessary Fittings
• Full Line Kit for the Rear with Steel Braided Lines and necessary Fittings

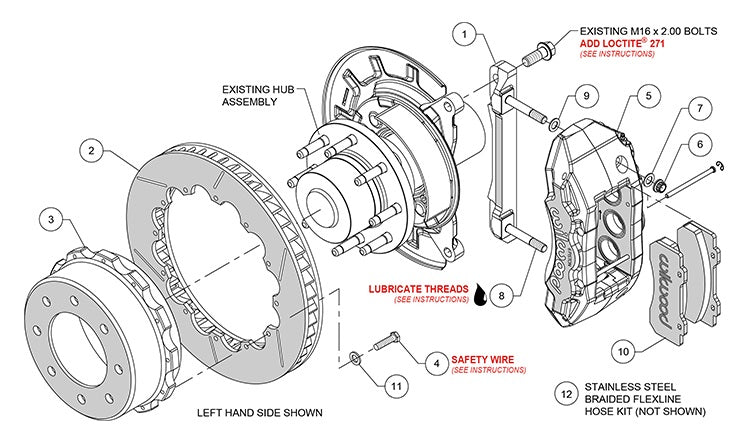

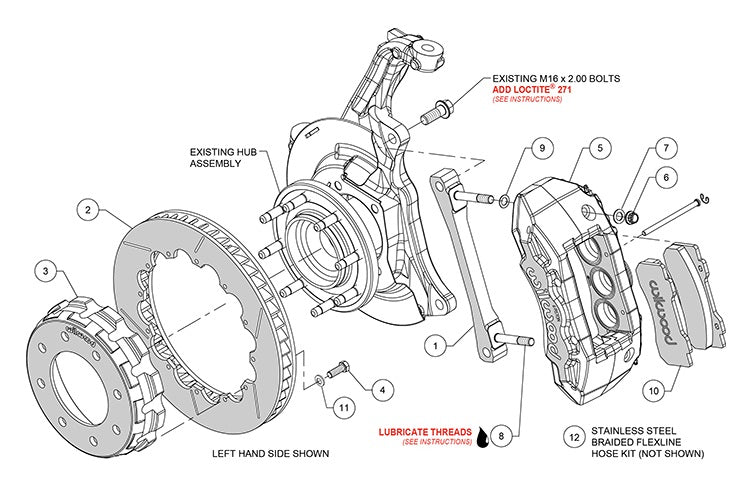

See the lists & diagrams below for a detail of the parts included.

Fits:

• Chevrolet:
• 2011-2019 Silverado 2500 HD
• 2011-2019 Silverado 3500 HD (Single Rear Wheels)
• 2011-2019 Silverado 3500 HD (Dual Rear Wheels)
• 2016 Suburban 3500 HD (LS & LT)
• GMC:
• 2011-2019 Sierra 2500 HD
• 2011-2019 Sierra 3500 HD (Single Rear Wheels)
• 2011-2019 Sierra 3500 HD (Dual Rear Wheels)

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15" and 15.50" GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

These Big Brake kits require at least 20" diameter wheels.

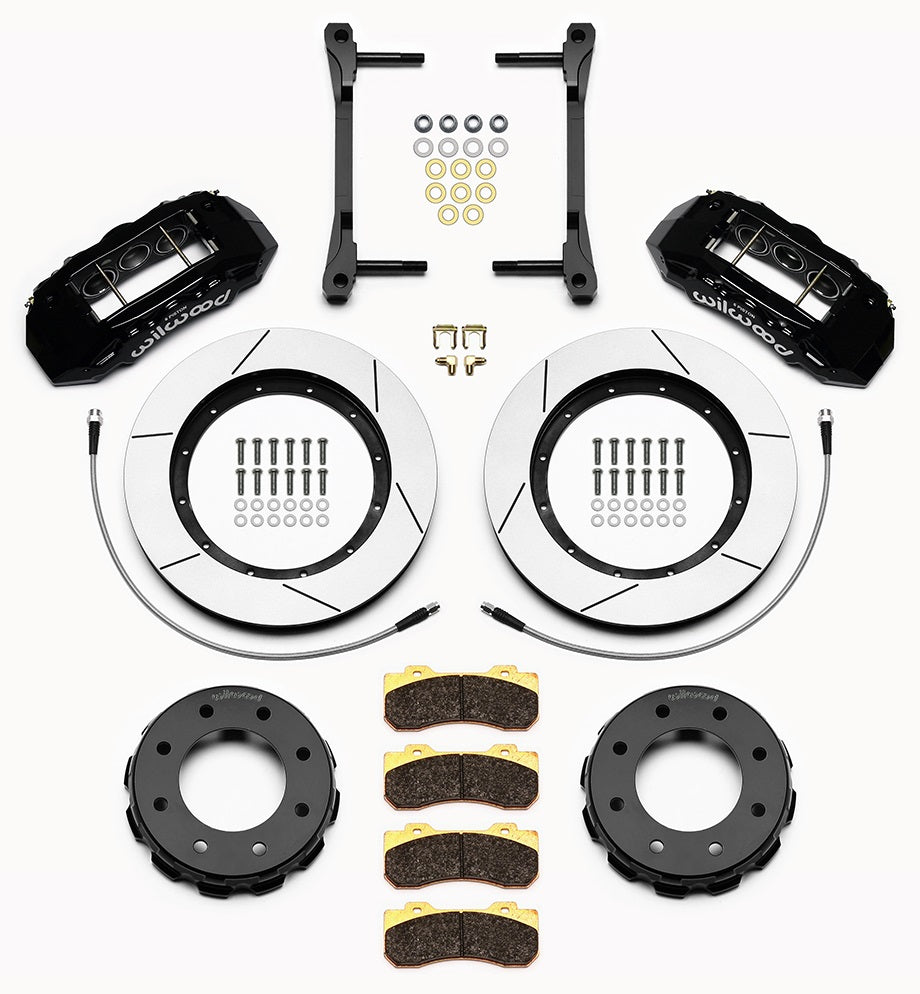

Front kit includes parts for both front wheels:

• 1.50" Thick x 15.00" O.D. Rotor
• TX6R 6 Piston Calipers - Black
• Caliper Mounting Brackets
• Brake Hats
• BP-20 Smart Compound Brake Pads
• Steel Braided Lines with Fittings
• All bolts, washers, and nuts necessary to install the complete braking system on both front wheels

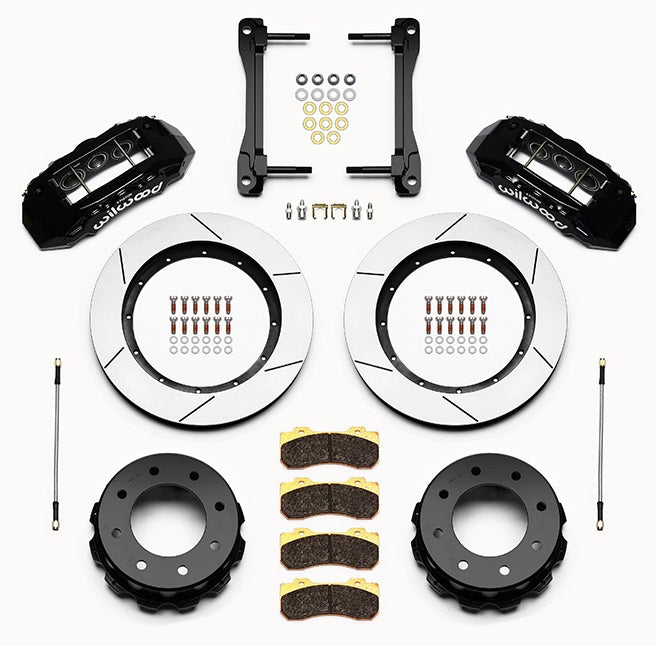

Rear kit includes parts for both rear wheels:

• 1.38" Thick x 15.50" O.D. Rotor
• TX6R 6 Piston Calipers - Black
• Caliper Mounting Brackets
• Brake Hats
• BP-20 Smart Compound Brake Pads
• Steel Braided Lines with Fittings
• All bolts, washers, and nuts necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 240 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
