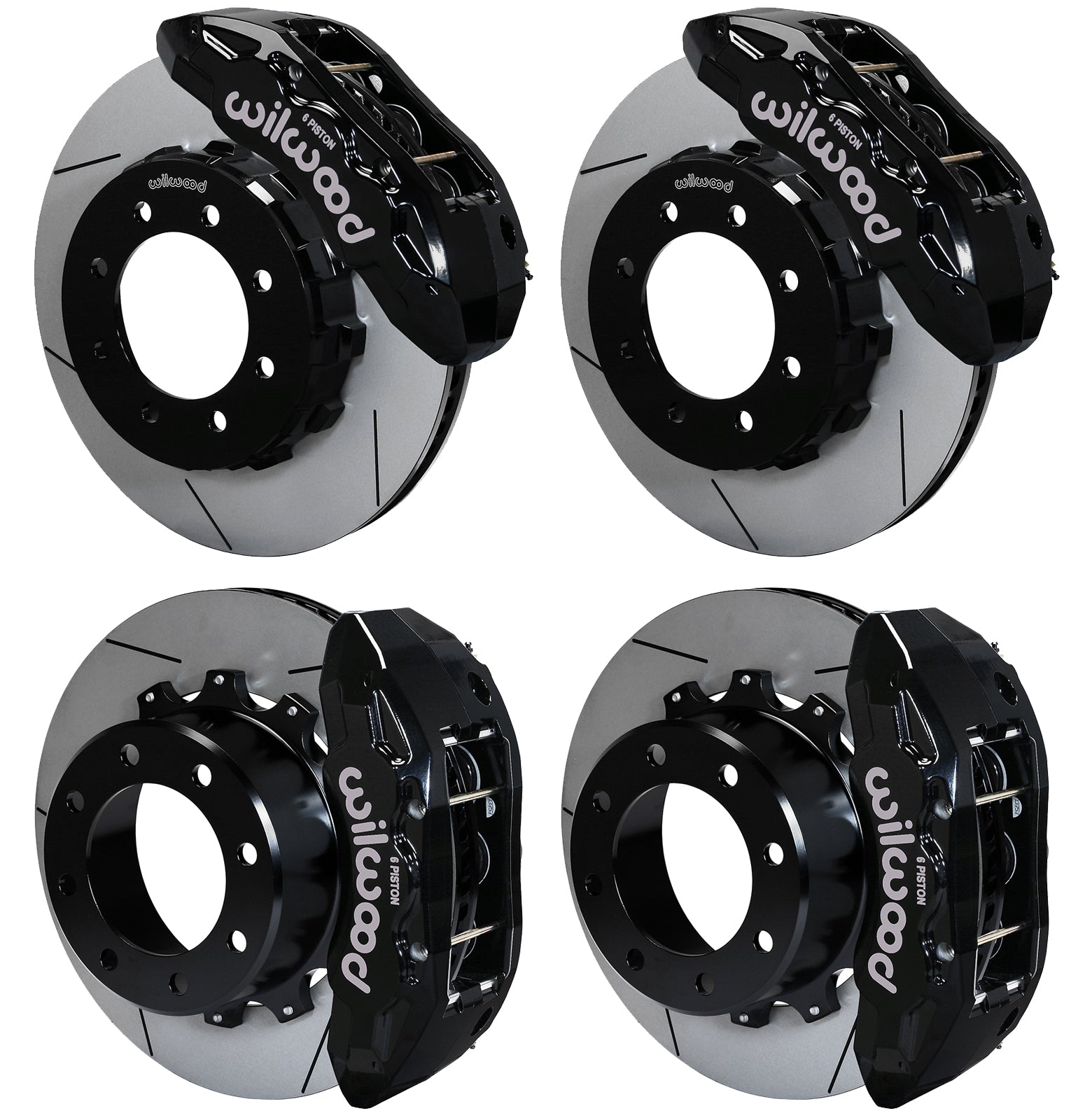

05-12 FORD F-250,F-350 4WD FULL DISC BRAKE KIT,LINES,6 PISTON,16"/15" ROTORS,BLK

BRAND NEW WILWOOD PREMIUM FRONT & REAR BIG BRAKE KIT WITH BLACK CALIPERS AND ***WITH BRAKE LINES*** (FRONT #140-13867, REAR #140-13868)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS TACTICAL EXTREME TX6R BIG BRAKE KITS ARE ULTIMATE IN BRAKING PERFORMANCE FOR TRUCK, SUV AND ARMORED VEHICLES. USING TX6R RADIAL MOUNT SIX-PISTON CALIPERS AND MASSIVE DIRECTIONAL VANE ALLOY ROTORS, THESE KITS DELIVER CONSISTENT STOPPING POWER AND EXTREME DUTY DURABILITY UNDER SUSTAINED HIGH HEAT WITH THIS READY TO BOLT-ON KIT. THE CALIPERS ARE VOLUME MATCHED FOR COMPATIBILITY WITH ORIGINAL EQUIPMENT POWER BRAKE SYSTEM OUTPUT. KITS INCLUDE RADIAL MOUNT CALIPER BRACKETS, AND ALL THE NECESSARY HARDWARE TO COMPLETE THE INSTALLATION INCLUDING STEEL BRAIDED LINE KITS WITH LINE & CALIPER FITTINGS, WHICH ARE ONLY INCLUDED IN THESE KITS AT SOUTHWEST SPEED.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

COMPATIBLE WITH:

• FORD
• 2005-2012 F-250 SUPER DUTY, 4WD
• 2005-2012 F-350 SUPER DUTY, 4WD

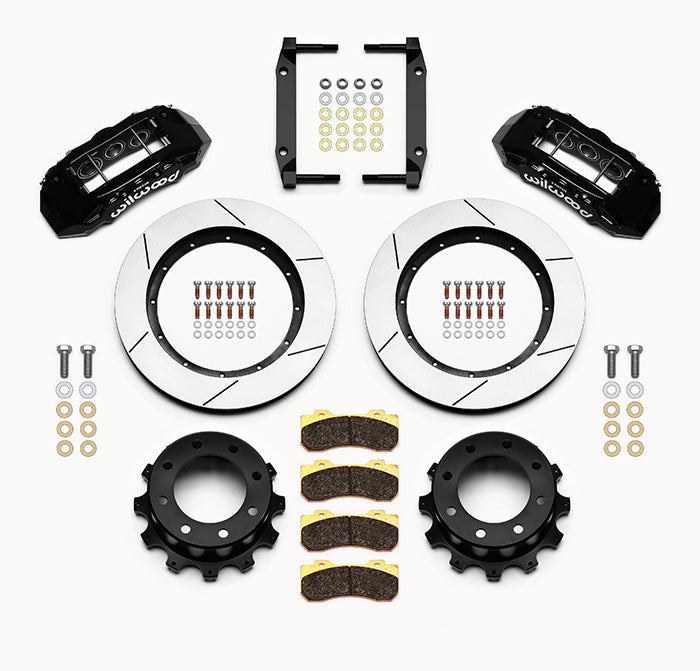

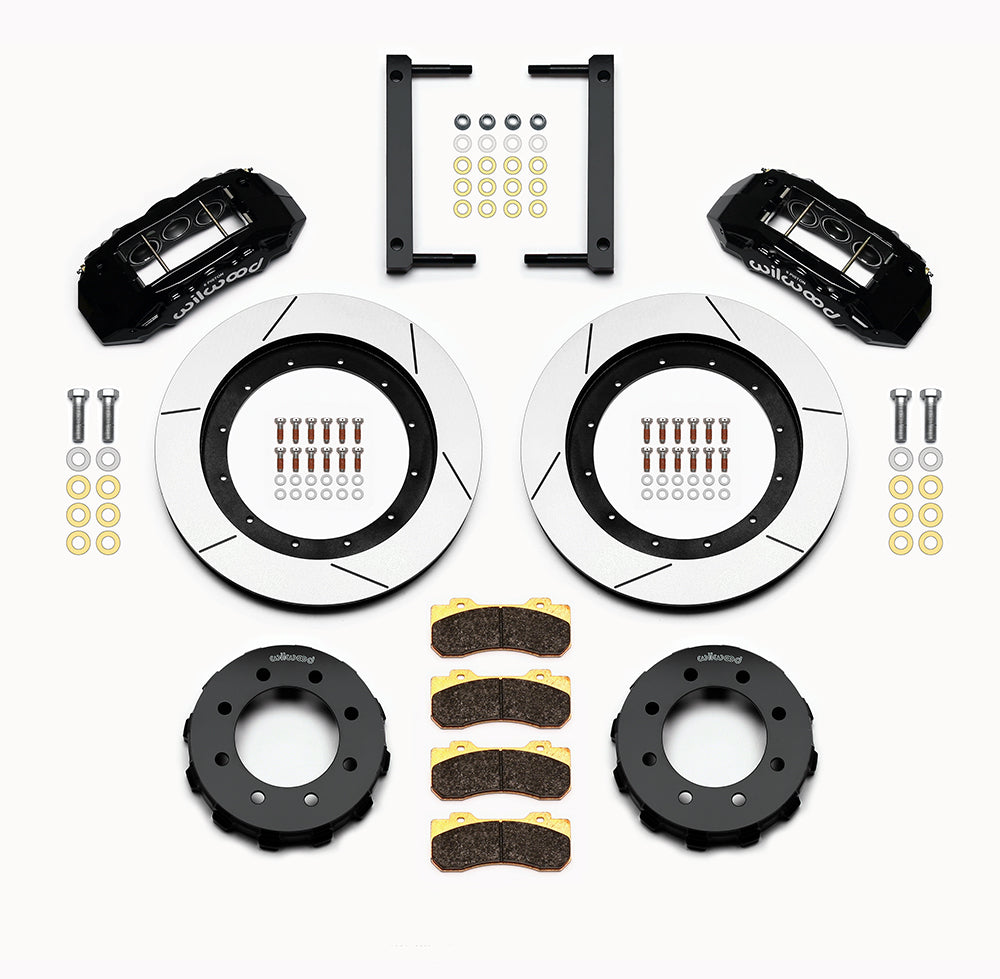

KIT INCLUDES PARTS FOR ALL 4 WHEELS:

• FRONT, 1.50" THICK X 16.00" O.D. ROTORS
• REAR, 1.38" THICK X 15.50" O.D. ROTORS
• TX6R 6 PISTON RADIAL CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-20 SMART COMPOUND BRAKE PADS

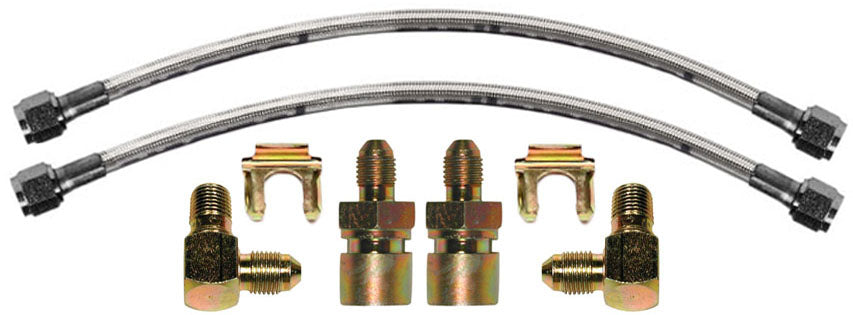

• STEEL BRAIDED LINE KITS WITH LINE & CALIPER FITTINGS
• BRAKE HATS, &
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON ALL 4 WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 240 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR FRONT KIT AND REAR KIT.
