05-12 FORD F-250,F-350 4WD FRONT DISC BRAKE KIT,TX6R 6 PISTON,16" ROTORS,BLACK

05-12 FORD F-250,F-350 4WD FRONT DISC BRAKE KIT,TX6R 6 PISTON,16" ROTORS,BLACK

SKU:WIL 140-13867

Regular price $2,819.99
Regular price Sale price $2,819.99
View full details

BRAND NEW WILWOOD PREMIUM 16" BIG BRAKE BOLT-ON FRONT HAT & DISC BRAKE KIT (PART #140-13867) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

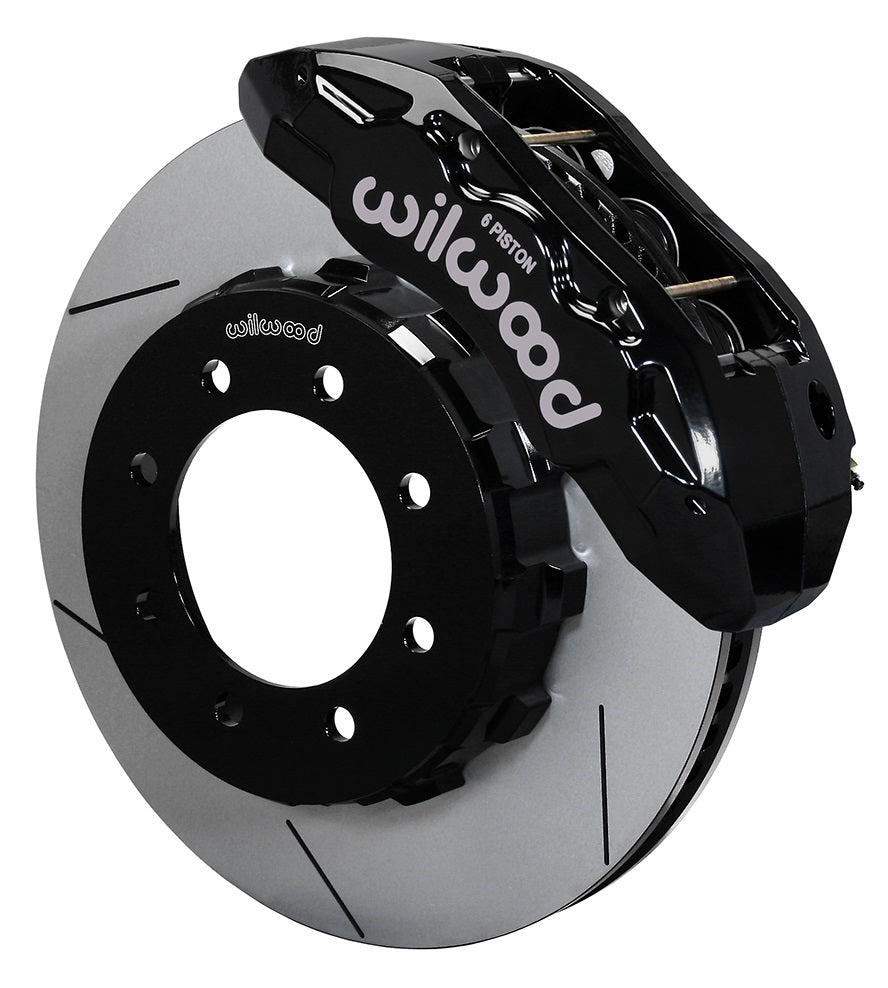

WILWOODS TACTICAL EXTREME TX6R BIG BRAKE KITS ARE ULTIMATE IN BRAKING PERFORMANCE FOR TRUCK, SUV AND ARMORED VEHICLES. USING TX6R RADIAL MOUNT SIX-PISTON CALIPERS AND MASSIVE 16" GT-60 DIRECTIONAL VANE SPEC-37 ALLOY ROTORS, THESE KITS DELIVER CONSISTENT STOPPING POWER AND EXTREME DUTY DURABILITY UNDER SUSTAINED HIGH HEAT WITH THIS READY TO BOLT-ON KIT. THE CALIPERS ARE VOLUME MATCHED FOR COMPATIBILITY WITH ORIGINAL EQUIPMENT POWER BRAKE SYSTEM OUTPUT. KITS INCLUDE RADIAL MOUNT CALIPER BRACKETS, AND ALL THE NECESSARY HARDWARE TO COMPLETE THE INSTALLATION.

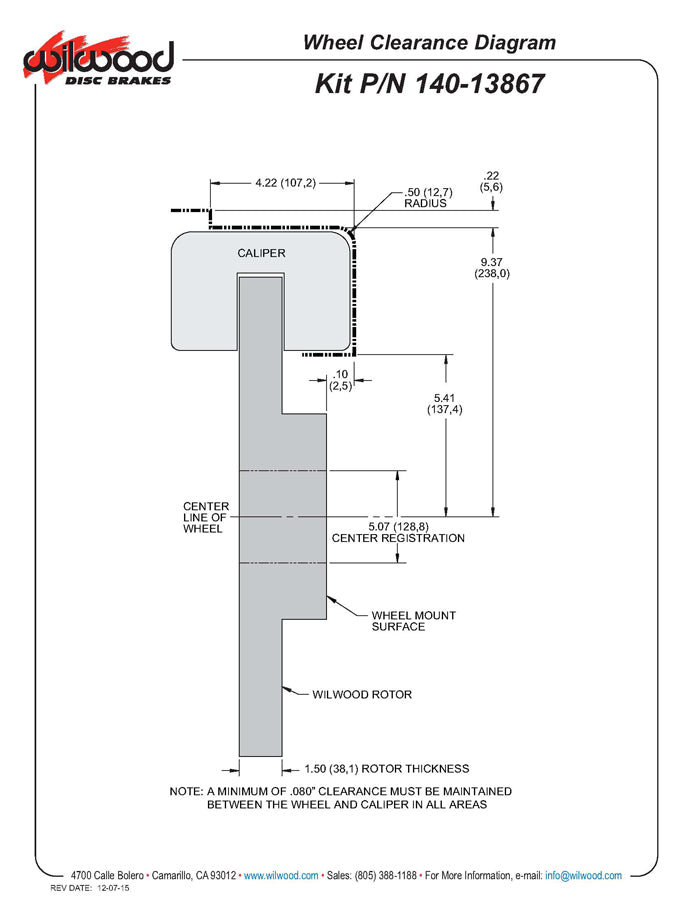

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

COMPATIBLE WITH:

  • FORD
    • 2005-2012 F-250 SUPER DUTY, 4WD
    • 2005-2012 F-350 SUPER DUTY, 4WD

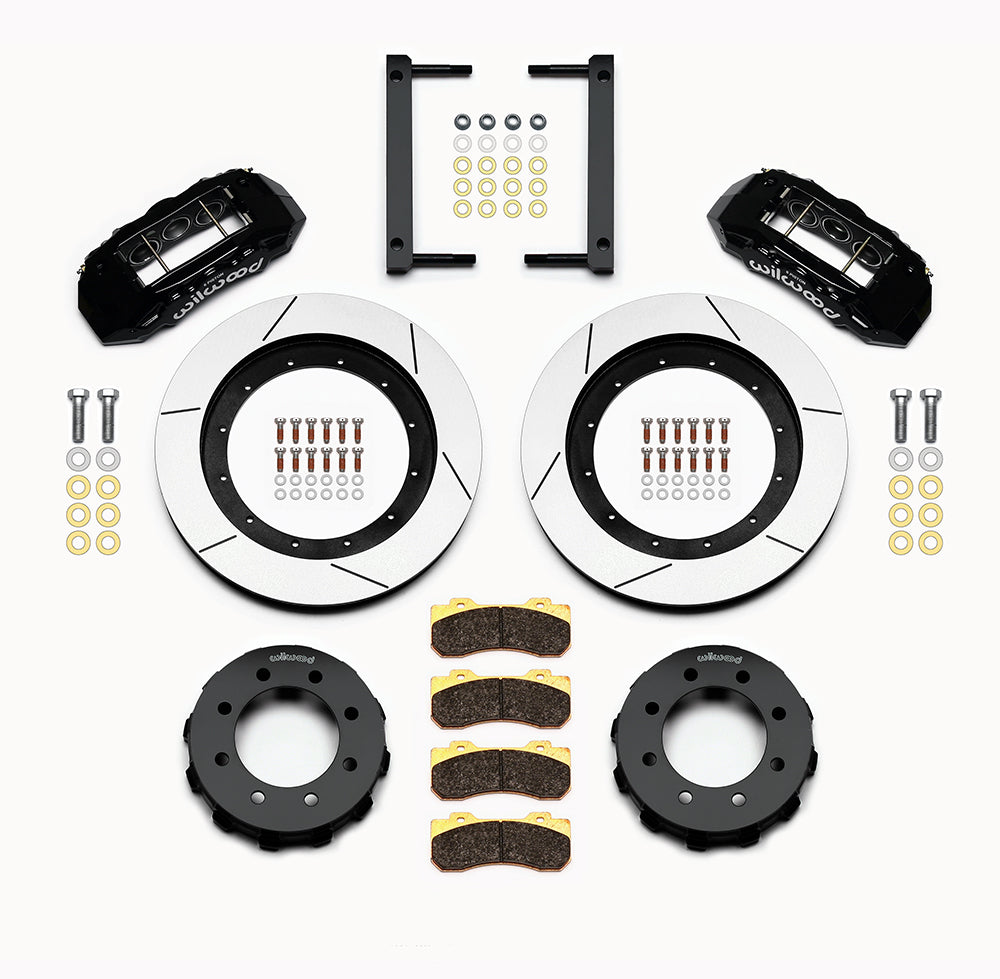

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

  • 1.50" THICK X 16.00" O.D. ROTORS
  • TX6R 6 PISTON RADIAL CALIPERS - BLACK
  • CALIPER MOUNTING BRACKETS
  • BP-20 SMART COMPOUND BRAKE PADS
  • BRAKE HATS, &
  • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 115 LBS.

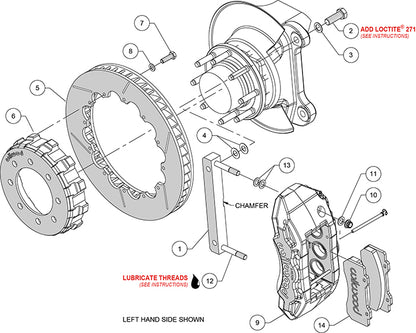

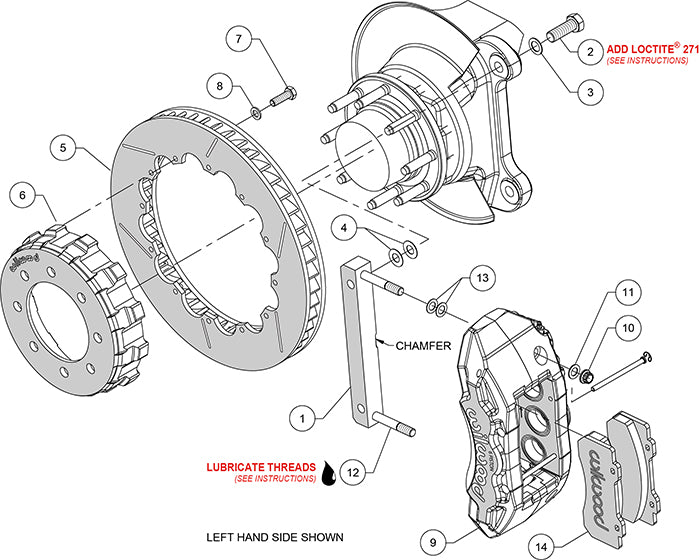

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
