GM C-KIT,2.75",REAR PB,13",STAGGERED MNT

GM C-KIT,2.75",REAR PB,13",STAGGERED MNT

WIL 140-13678B

$1,949.99
$1,949.99
View full details
  • BRAND NEW WILWOOD STAGGERED SHOCK, BIG BRAKE REAR PARKING BRAKE, SUPERLITE, BOLT-ON 12.90" DISC BRAKE KIT FOR BOTH REAR WHEELS.

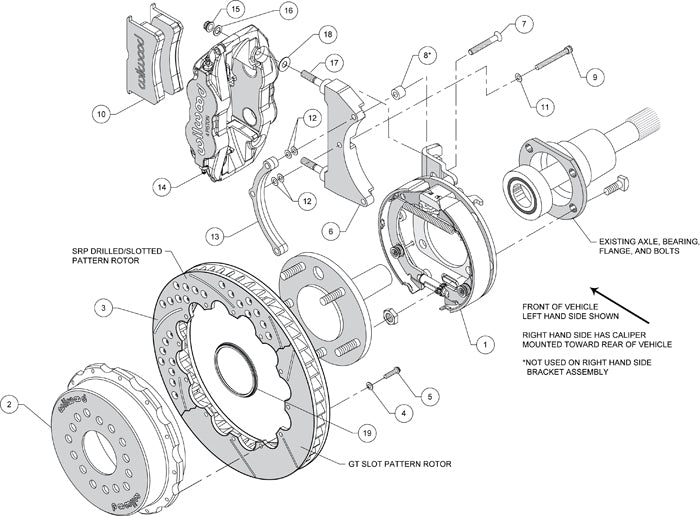

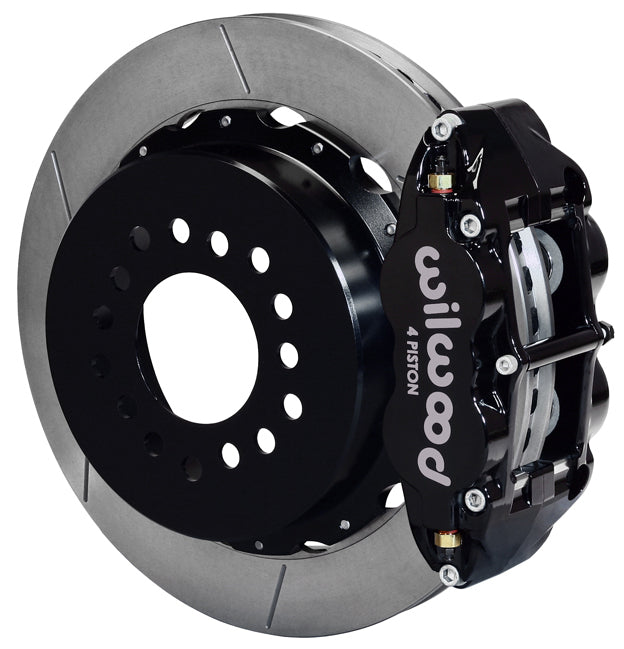

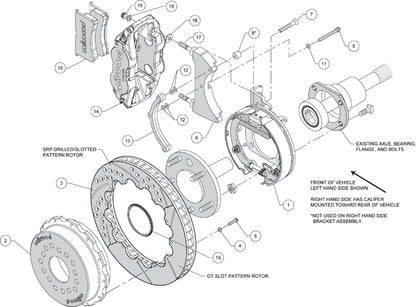

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED BLACK CALIPERS.

    • FITS:

    • GM 10 BOLT & 12 BOLT REAR ENDS WITH THE "GM / CHEVY" AXLE FLANGES AND A 2.75" AXLE FLANGE OFFSET, AND WITH STAGGERED SHOCKS***
    • ***"STAGGERED SHOCK" APPLICATIONS HAVE THE LEFT SIDE SHOCK IN BACK OF THE REAR END HOUSING AND THE RIGHT SIDE SHOCK IN FRONT. IN THESE APPLICATIONS, IT'S NECESSARY TO HAVE THIS MODIFIED LEFT SIDE BRAKE KIT, WHICH MOUNTS THE CALIPER IN FRONT OF THE HOUSING TO AVOID ANY CLEARANCE ISSUES WITH THE SHOCK.***
    • ***THIS WAS COMMON ON MANY 1967-1969 CHEVY CAMARO'S AND PONTIAC FIREBIRD'S***

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • BILLET SL4R REAR DISC KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. BILLET SL4R FOUR PISTON CALIPERS, 13" TWO-PIECE ROTORS, AND HIGH PERFORMANCE BP-10 COMPOUND PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES ON ALL TYPES OF CUSTOM, SHOW AND HIGH PERFORMANCE STREET MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

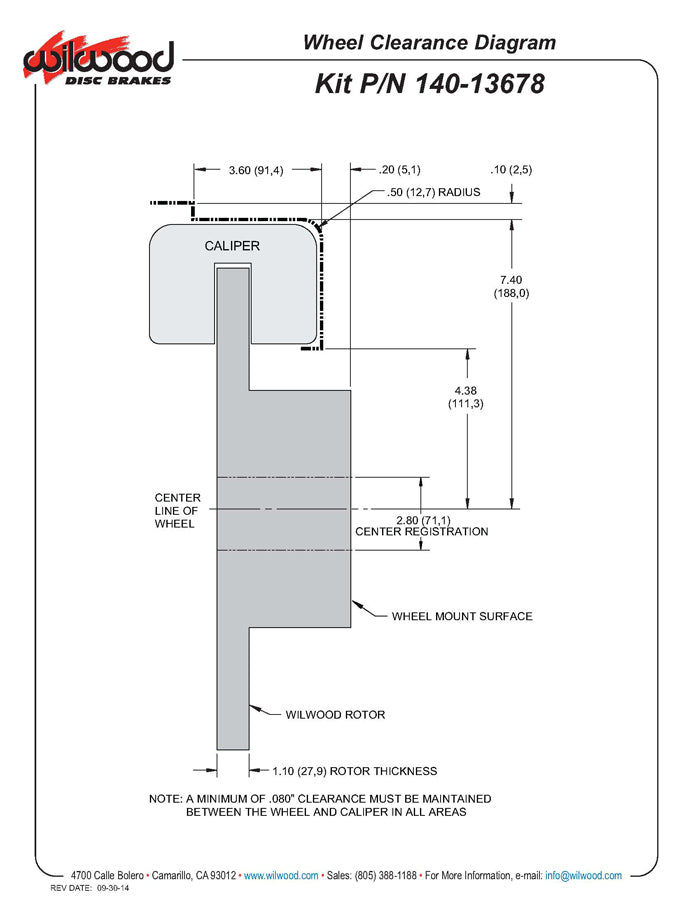

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

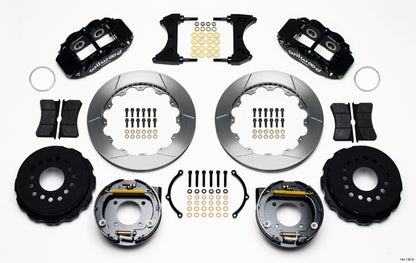

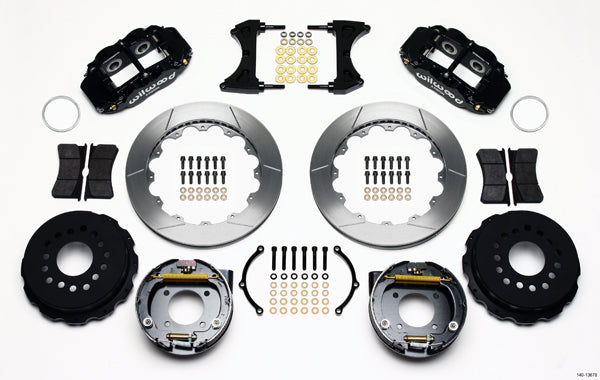

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • 1.10" THICK X 12.90" O.D. ROTORS
    • SUPERLITE 4R 4 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKETS
    • DRUM PARKING BRAKE ASSEMBLIES
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 68 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.



    • Click Picture
    For Larger View




    Click Picture
    For Larger View
