BIG FORD NEW KIT,2.38",5 x 5.5",REAR,12"

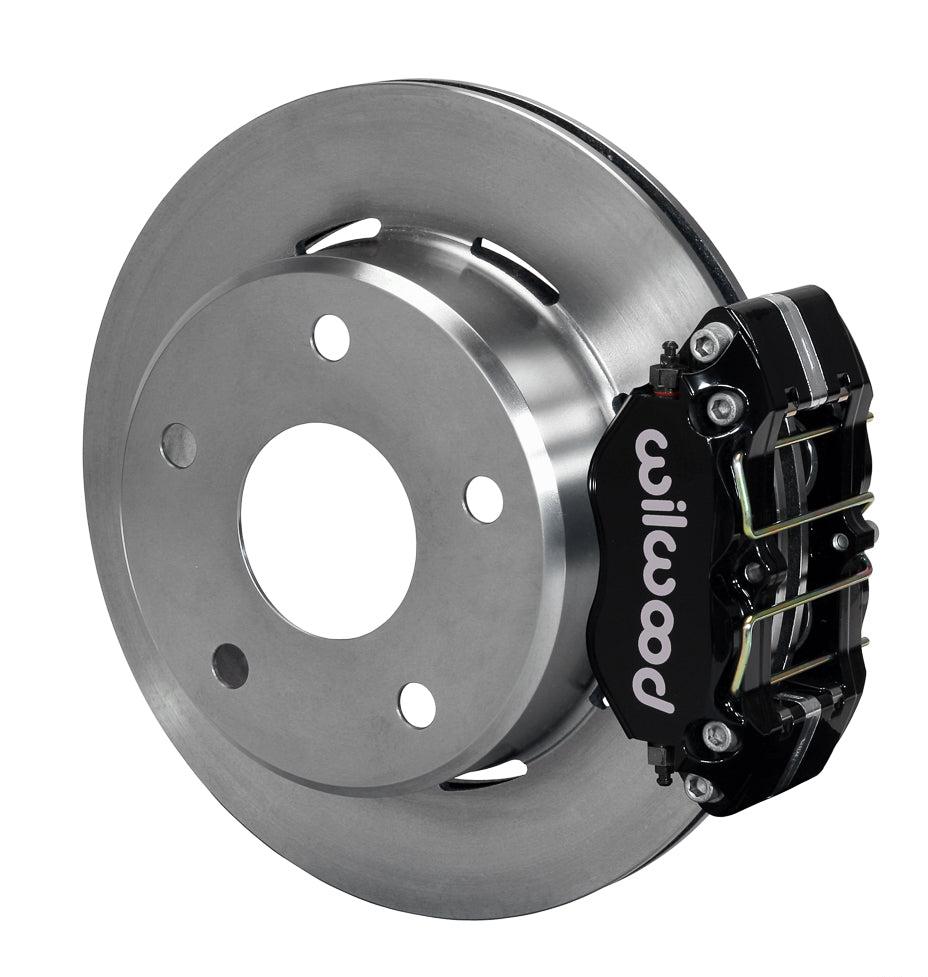

Brand New Wilwood DynaPro Lug Mount Parking Brake Kit Featuring 12.19" Solid Rotors with Black Calipers For Both Rear Wheels (Part #140-13664).

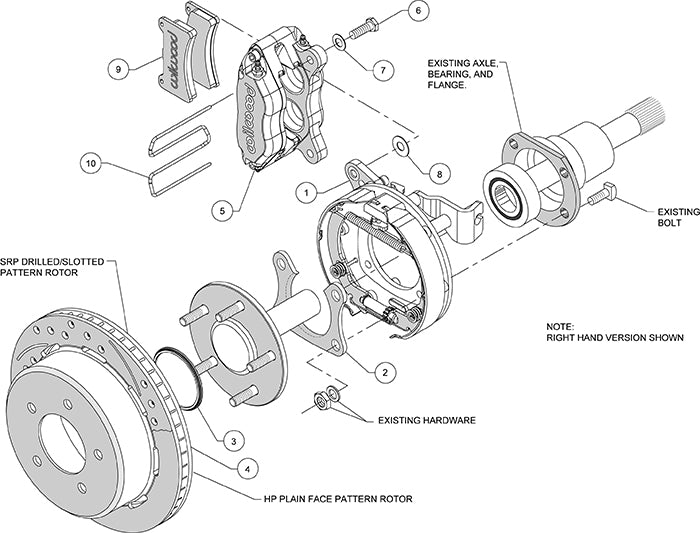

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Ford:

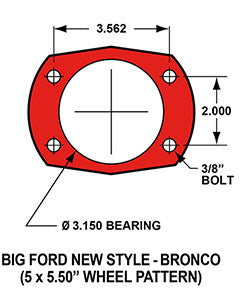

  • 1976-1977 Bronco with Big Ford New Style 2.38" Offset Flange (See Diagram Pictures)

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 76-77 rear axles with Big Ford New flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

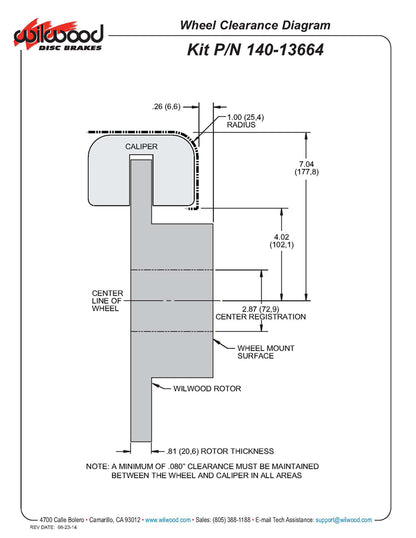

This kit require at least 15" diameter wheels.

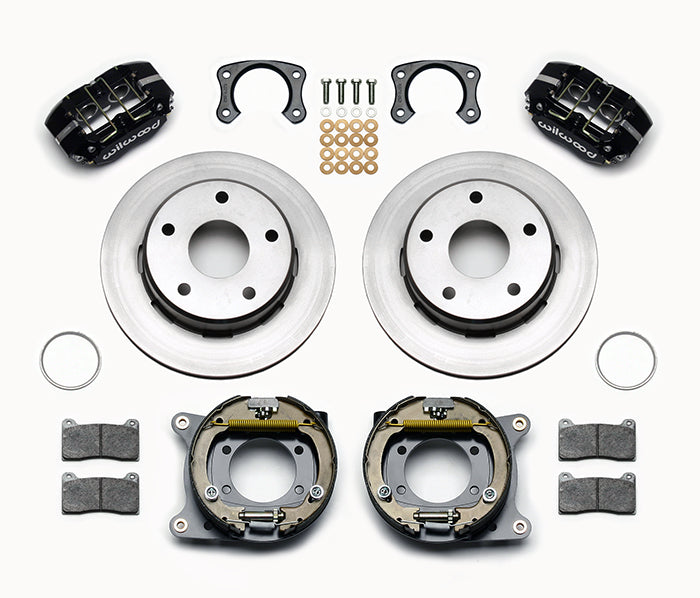

Kit includes parts for both rear wheels:

• 4 Piston DynaPro Lug Mount Calipers

• BP-10 Compound Brake Pads

• 12.19" O.D. x 0.81" Thick Rotors

• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 50 lbs.

You can view and download the assembly/instruction booklet here.
