MAZDA 3 05-UP,FRONT,DP6,13",DRILLED,RED

MAZDA 3 05-UP,FRONT,DP6,13",DRILLED,RED

WIL 140-13581DR

$1,529.99
$1,529.99
View full details
  • BRAND NEW PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT HAT & 12.88" DISC BRAKE KIT FOR BOTH FRONT WHEELS.

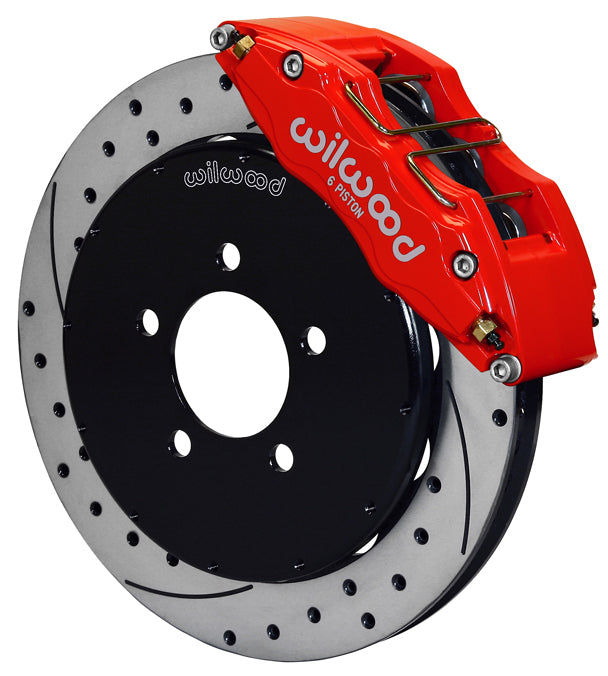

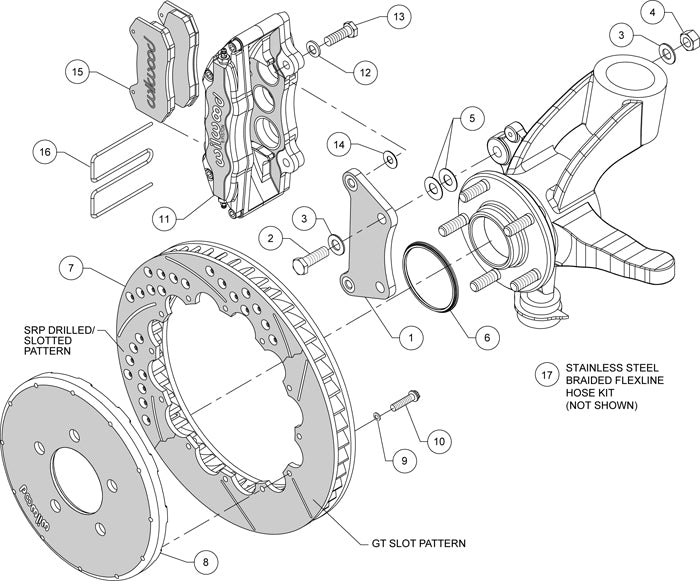

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.

    • FITS:

    • MAZDA:
      • 2004-2013 MAZDA 3, INCLUDING I, I TOURING, GRAND TOURING, GS, GS-SKY, GT, GX, MAZDASPEED, S, SP23, SPORT GS, SPORT GT, AND SPORT GX

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE DYNAPRO 6 FORGED BILLET SIX-PISTON CALIPER IS COMBINED WITH 12.88" DIAMETER ROTORS FOR THIS GROUP OF FRONT WHEEL DRIVE SPORT COMPACT KITS. THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, AND SUSPENSION UPGRADES ON DAILY DRIVERS, COMPETITION VEHICLES, AND CUSTOM STYLED SHOW MACHINES. EACH KIT IS ENGINEERED VEHICLE SPECIFIC TO MAINTAIN FULL COMPATIBILITY WITH THE OE MASTER CYLINDER OUTPUT AND FACTORY ABS FUNCTIONS.

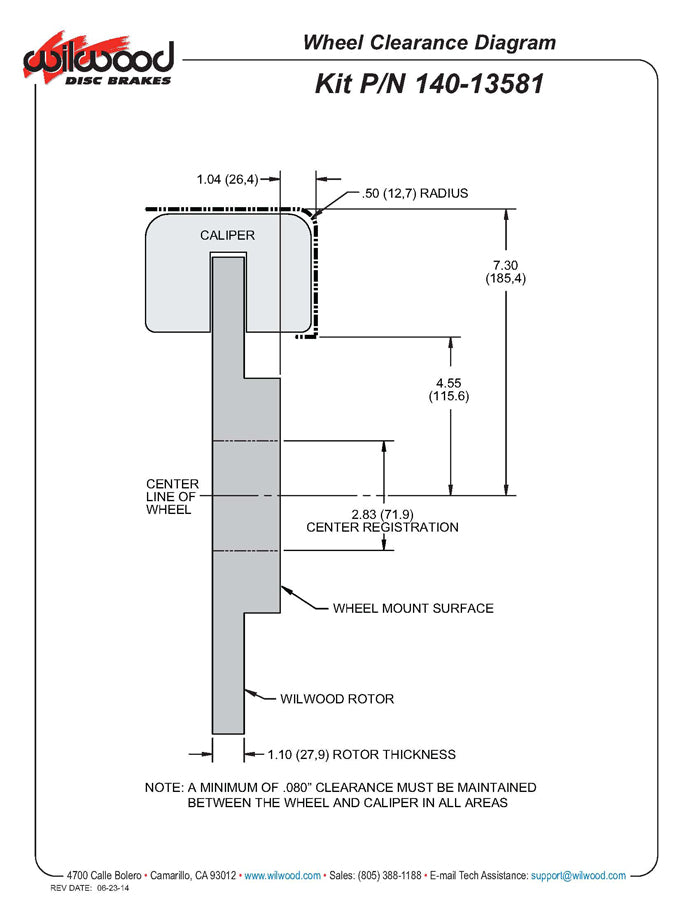

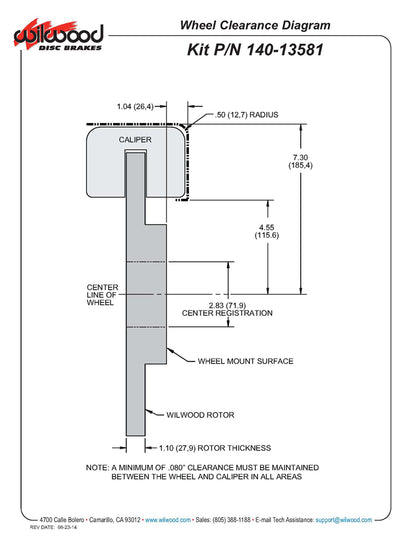

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

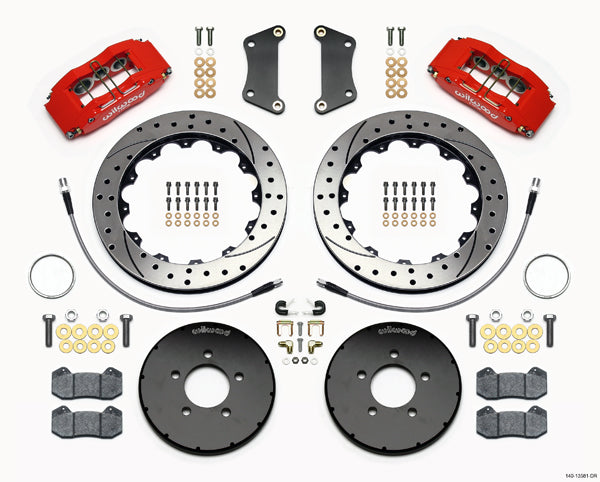

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • DRILLED & SLOTTED, 1.10" THICK X 12.88" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • BEARINGS
    • SEALS
    • STAINLESS STEEL BRAIDED BRAKE LINES WITH FITTINGS
    • ALL BOLTS, SHIMS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 54 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
    • Bolt-On Disc Brake Kits > Mazda Kits > Mazda 3 Front Kits, 2004-2013
