69-76 AMC BRAKE KIT,FRONT,FDL,12",DRILLED

69-76 AMC BRAKE KIT,FRONT,FDL,12",DRILLED

WIL 140-13395D

$1,209.99
$1,209.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE FORGED DYNALITE BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT FOR BOTH FRONT WHEELS.

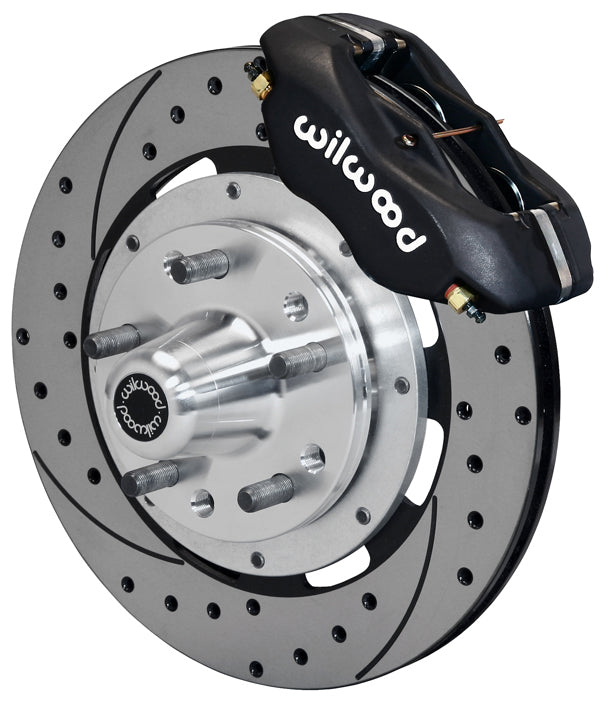

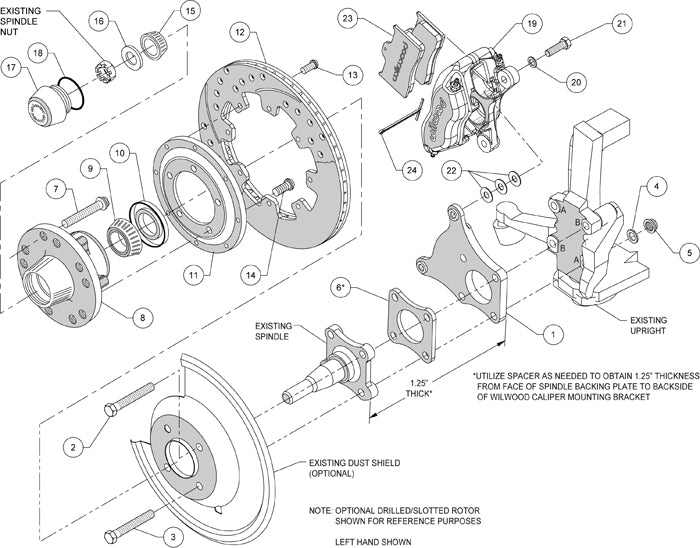

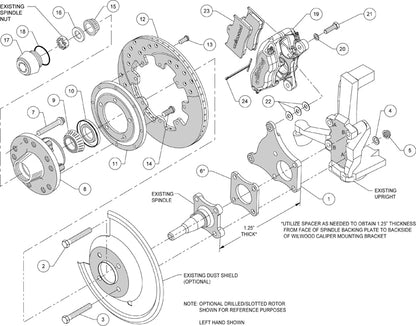

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

    • FITS:

    • AMERICAN MOTORS:
      • 1969-1973 AMBASSADOR, ALL WITH DISC BRAKE SPINDLES*
      • 1974 AMBASSADOR, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
      • 1969-1974 AMX, ALL WITH DISC BRAKE SPINDLES*
      • 1971-1973 GREMLIN, ALL WITH DISC BRAKE SPINDLES*
      • 1974-1976 GREMLIN, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
      • 1970-1973 HORNET, ALL WITH DISC BRAKE SPINDLES*
      • 1974-1976 HORNET, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
      • 1969-1973 JAVELIN, ALL WITH DISC BRAKE SPINDLES*
      • 1974 JAVELIN, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
      • 1971-1973 MATADOR, ALL WITH DISC BRAKE SPINDLES*
      • 1974 MATADOR, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
      • 1969 RAMBLER, ALL WITH DISC BRAKE SPINDLES*
      • 1969-1970 REBEL, ALL WITH DISC BRAKE SPINDLES*
      • 1969 ROGUE, ALL WITH DISC BRAKE SPINDLES*

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

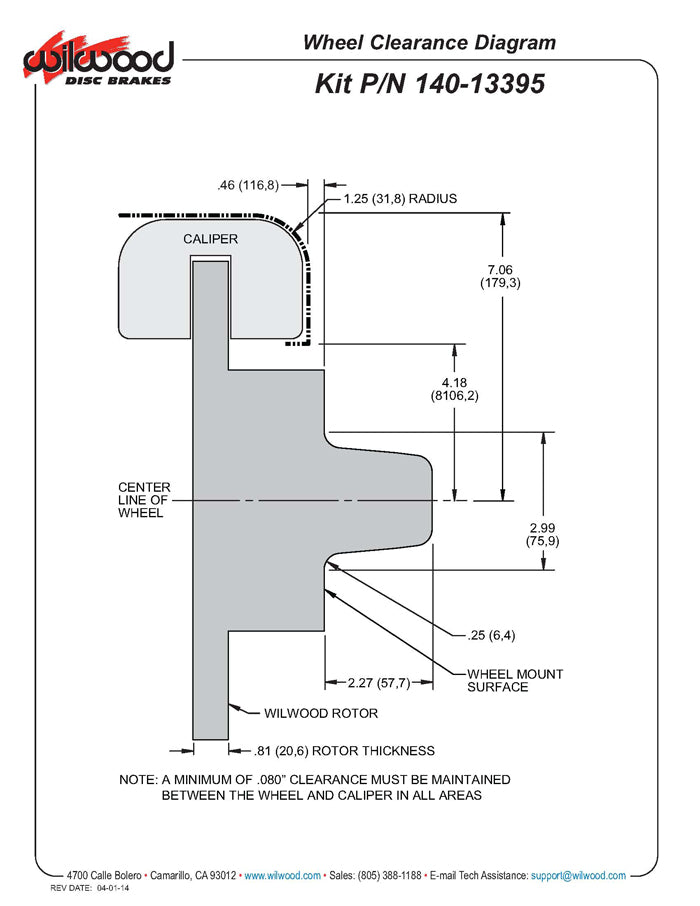

  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

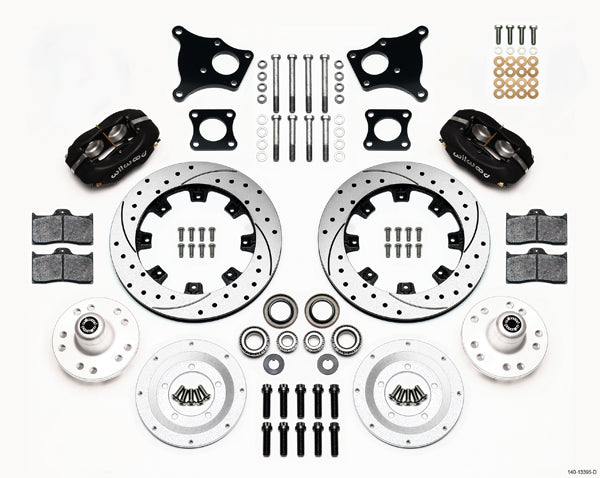

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
    • FORGED DYNALITE 4 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • HUBS
    • BEARINGS
    • SEALS
    • ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 45 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
    • Bolt-On Disc Brake Kits > AMC Kits > AMC Front Kits, 1969-1976
