65-69 FORD MUSTANG,FRONT,DP DUST BOOT,11" ROTORS,RED CALIPERS

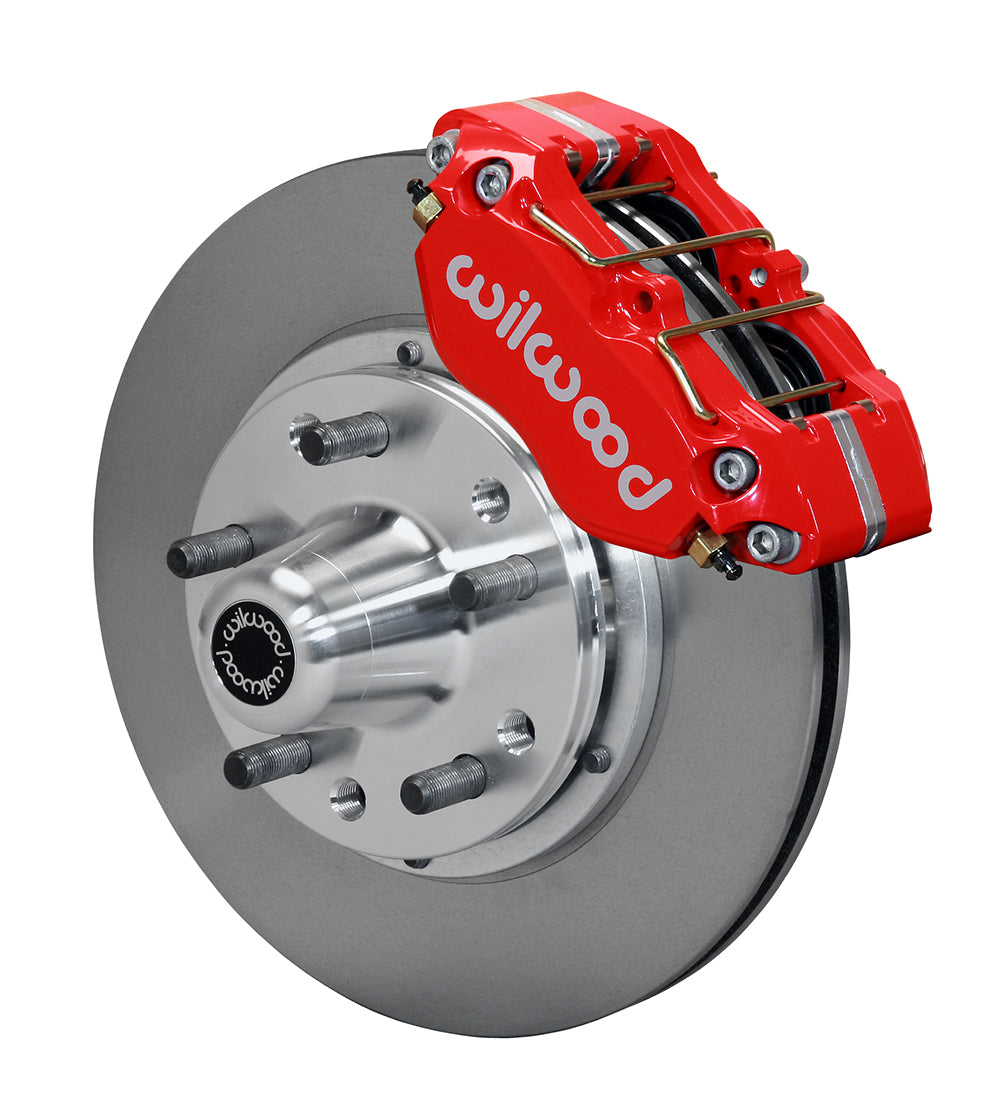

BRAND NEW WILWOOD DYNAPRO DUST-BOOT PRO SERIES BOLT-ON FRONT HUB & 11.00" DISC BRAKE KIT (PART #140-13343-R) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS NEW DP-DB PRO-SERIES FRONT HUB KITS OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM SPINDLES. WE HAVE COMPLETELY REDESIGNED OUR PRO SERIES LINE OF BRAKE KITS USING A LARGER 11" ROTOR AND NEW FORGED ALUMINUM HUBS WITH THE EXPRESS PURPOSE OF MAINTAINING THE FACTORY WHEEL POSITION. BASED ON THE VENERABLE FORGED DYNAPRO DUSTBOOT CALIPER, THESE KITS WERE DEVELOPED FOR APPLICATIONS OR LOCATIONS THAT REQUIRE OR PREFER A DUST-SEALED PISTON. DUST-BOOTED ALUMINUM PISTONS PROVIDE ADDED PROTECTION AGAINST ROAD OR TRACK BORN DIRT AND DEBRIS ON LOW TO INTERMEDIATE TEMPERATURE RANGE APPLICATIONS THAT MAY ALSO OPERATE IN HARSH ENVIRONMENTS. MOST VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS. DP-DB PRO-SERIES KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE WITH CALIPERS, ROTORS, HUB ASSEMBLY, BRACKETS AND HARDWARE. KIT INSTALLATION REQUIRES PURCHASE OF ADDITIONAL BRAKE LINES SHOWN BELOW.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

COMPATIBLE WITH:

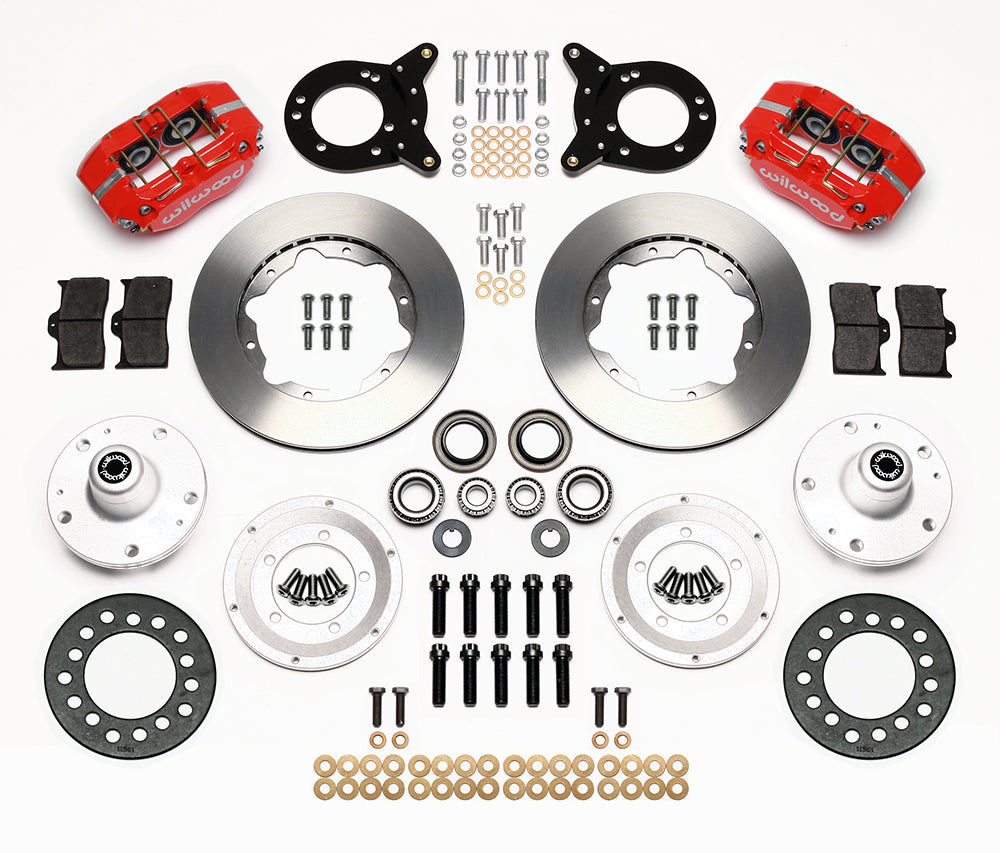

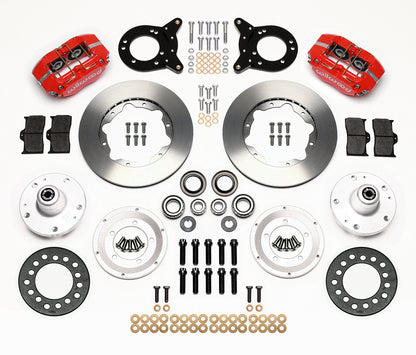

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .810" THICK X 11.00" O.D. ROTORS
• DYNAPRO DUST-BOOT 4 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS, BEARINGS, SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 40 LBS.

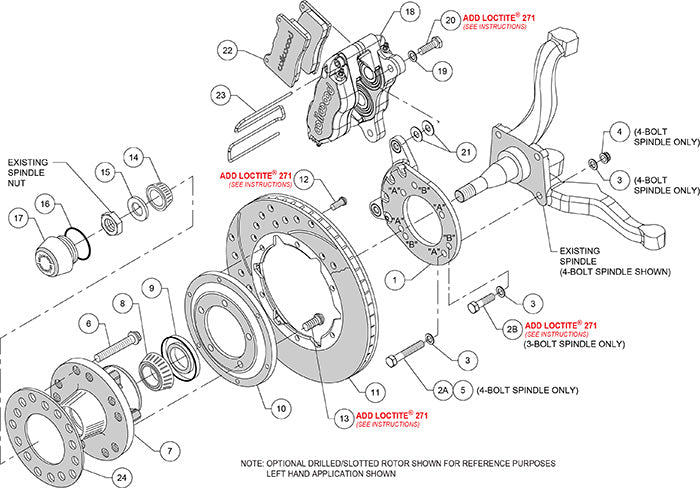

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
