66-77 BRONCO,BIG FORD,REAR,14" DRILLED ROTORS,RED

66-77 BRONCO,BIG FORD,REAR,14" DRILLED ROTORS,RED

WIL 140-13333DR

$2,199.99
$2,199.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE FORGED NARROW SUPERLITE 4R CALIPER BOLT-ON REAR HAT, & 14" DISC BRAKE KIT FOR BOTH REAR WHEELS.

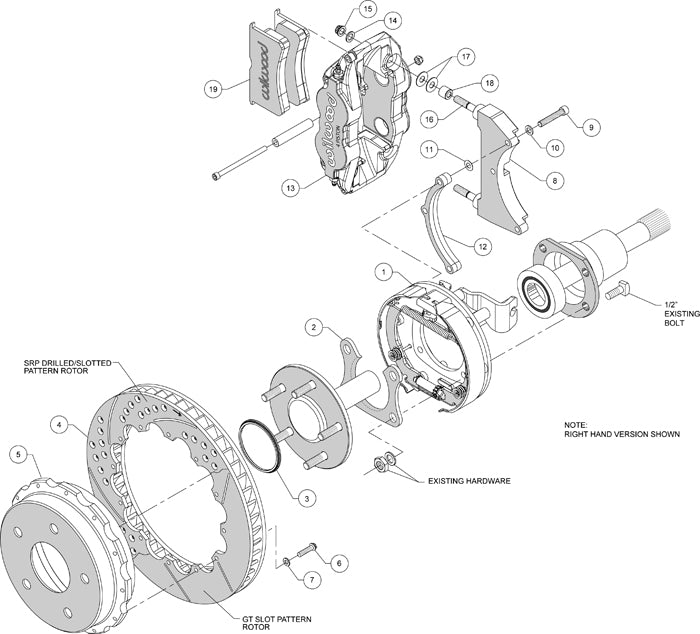

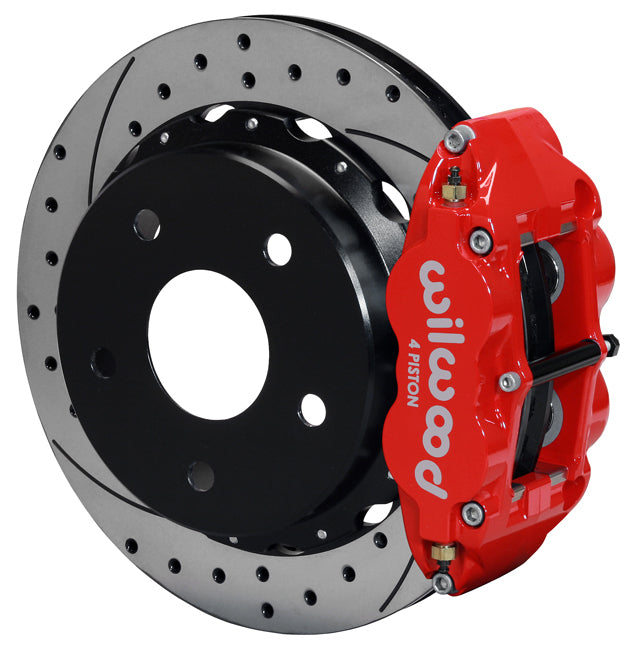

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.

    • FITS:

    • 1966-1975 FORD BRONCO (3300 LB AXLE & 11" DRUM BRAKES)*
    • 1976-1977 FORD BRONCO, ALL*

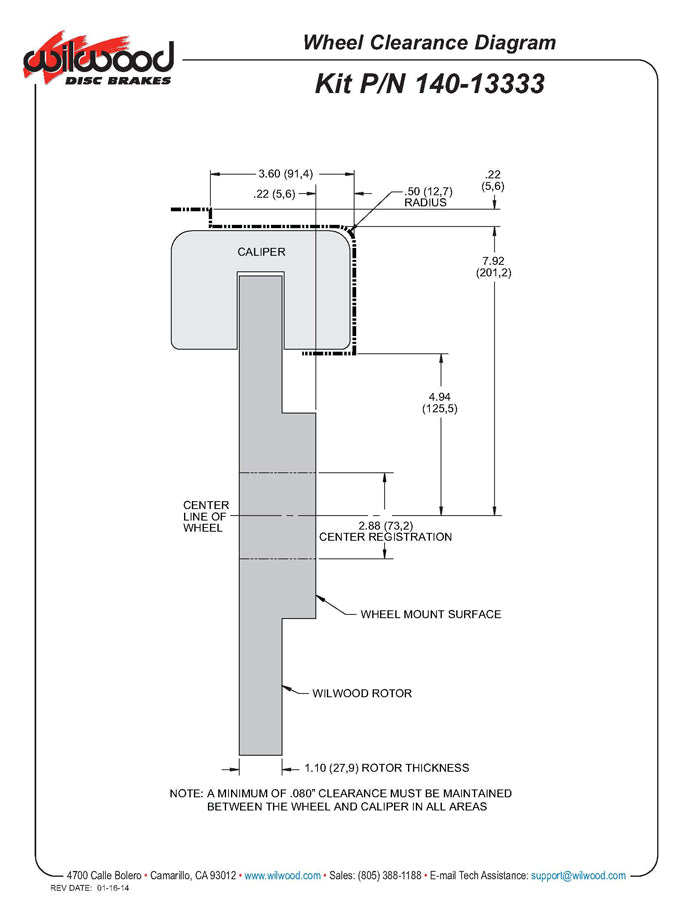

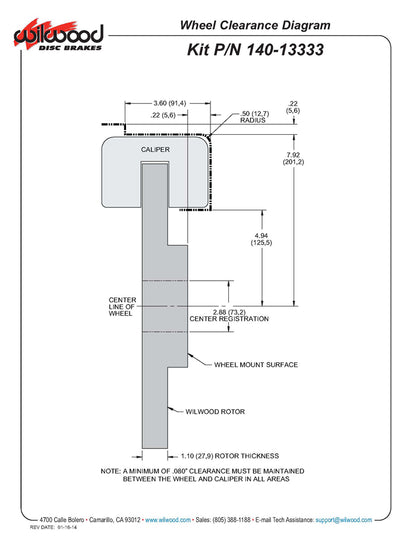

    • *THIS KIT FITS THE BIG FORD AXLE FLANGES, WHICH THE ABOVE APPLICATIONS SHOULD HAVE, BUT TO CONFIRM THE FITMENT FOR YOUR SPECIFIC BRONCO (SEE THE DIAGRAM BELOW)

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • FORGED NARROW SUPERLITE 4R REAR DISC KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FNSL4R FOUR PISTON CALIPERS, 14" TWO-PIECE ROTORS, AND HIGH PERFORMANCE BP-10 COMPOUND PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES ON ALL TYPES OF CUSTOM, SHOW AND HIGH PERFORMANCE STREET MACHINES.

  • THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ALLOW BUILDERS TO PERSONALIZE THE STYLE AND PERFORMANCE FOR EVERY APPLICATION.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

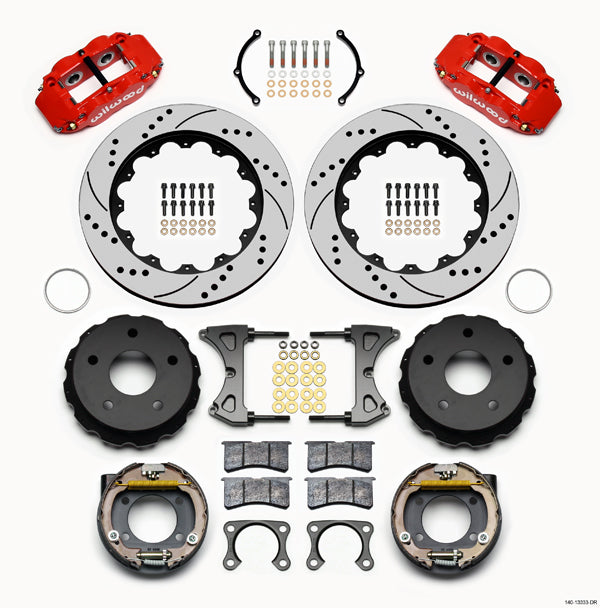

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • DRILLED & SLOTTED, 1.1" THICK X 14" O.D. ROTORS
    • FORGED NARROW SUPERLITE 4 PISTON CALIPERS - RED
    • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM FOR BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 80 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.



    • Click Picture
    For Larger View
