66-75 FORD BRONCO KIT,FRONT,14",BLACK

66-75 FORD BRONCO KIT,FRONT,14",BLACK

WIL 140-13329B

$2,405.41
$2,405.41

Yes, we have this item in stock and ready to ship immediately!
View full details

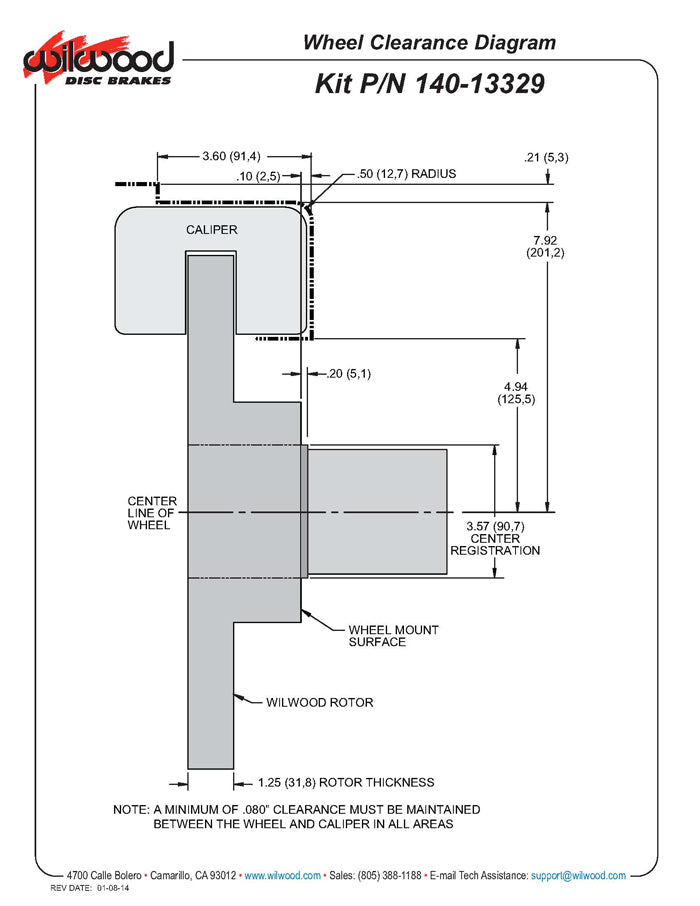

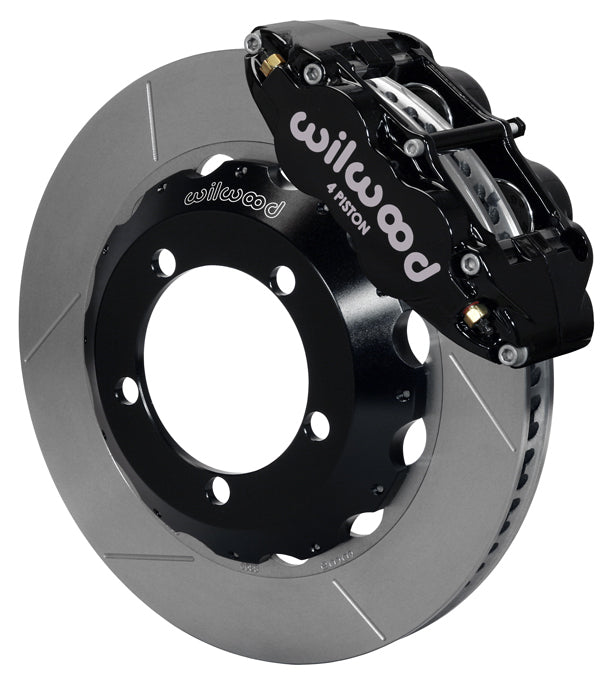

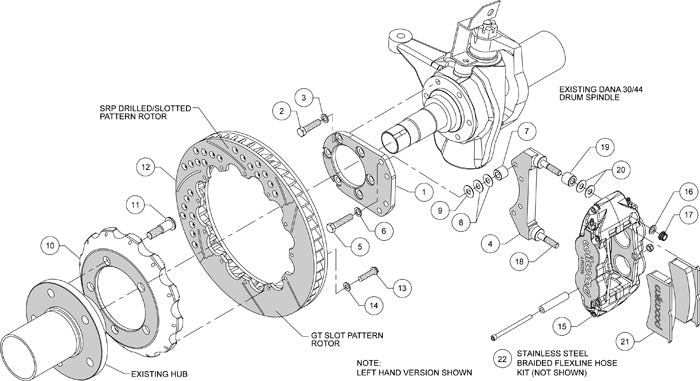

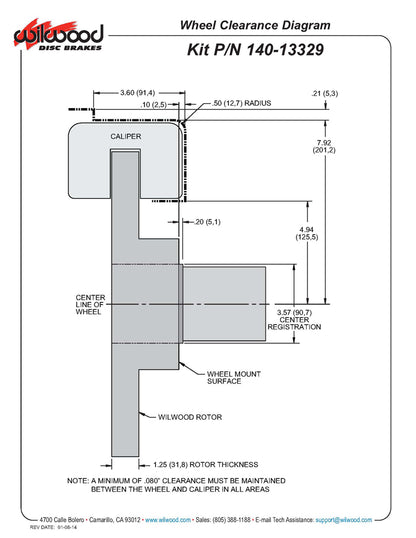

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE SL4 BOLT-ON FRONT HAT & 14" DISC BRAKE KIT FOR:
    FORD:
    -FORD BRONCO 1966-1973 2700 LBS AXLE, 10" INCH DRUM BRAKES*
    -FORD BRONCO 1974-1975 2900 LBS AXLE, 10" INCH DRUM BRAKES*
    -FORD BRONCO 1966-1975 3300 LBS AXLE, 11" INCH DRUM BRAKES*

  • FEATURING STANDARD ROTORS AND BLACK CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 4R FOUR-PISTON CALIPER SERVES AS THE BASIS OF THIS 14" BIG ROTOR KIT FOR THESE POPULAR FORD BRONCO VEHICLES
  • SL4 KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES
  • DIRECTION STAGGERED VANE 14" ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • THESE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS

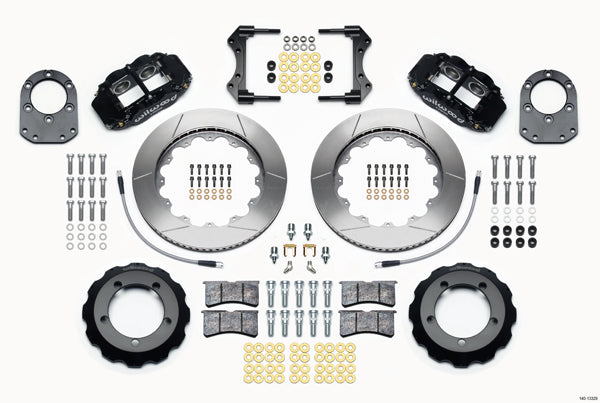

  • KIT INCLUDES:
    *STANDARD, 1.25" THICK X 14.00" O.D. ROTORS,
    *NARROW SUPERLITE 4R CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 70 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Ford Kits > Bronco Front Kits, 1966-1977
