76-77 FORD BRONCO,FRONT,12.90",BLACK,DRILLED

76-77 FORD BRONCO,FRONT,12.90",BLACK,DRILLED

WIL 140-13305D

$2,230.79
$2,230.79

Yes, we have this item in stock and ready to ship immediately!
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE SUPERLITE CALIPER, BOLT-ON FRONT HAT, & 12.88" DISC BRAKE KIT FOR BOTH FRONT WHEELS.

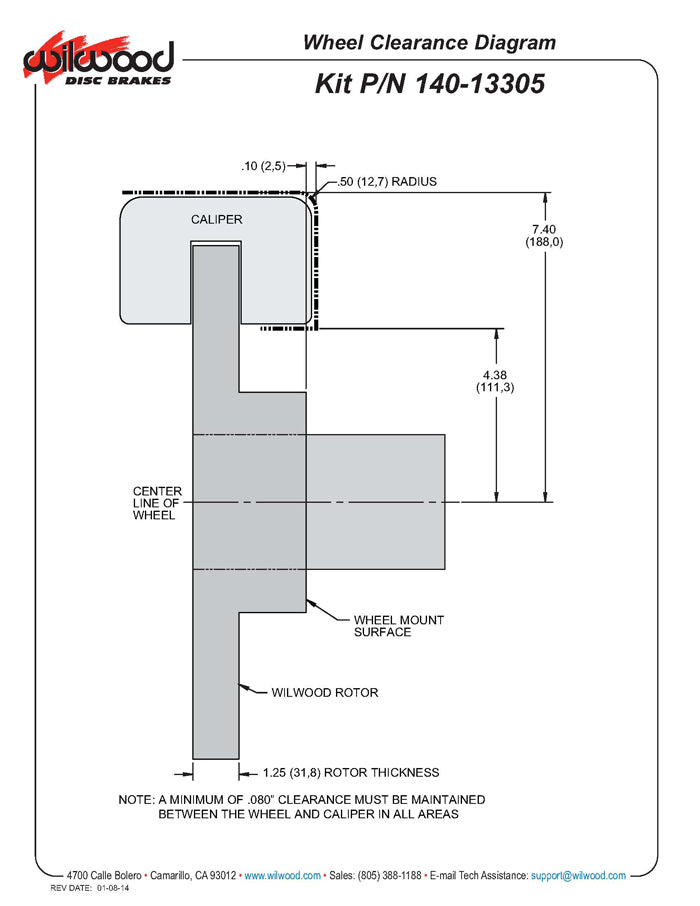

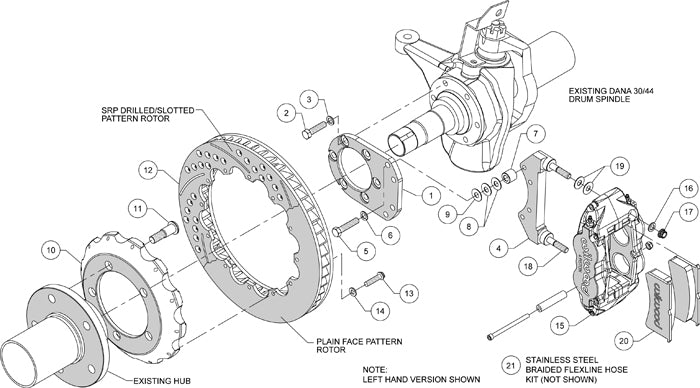

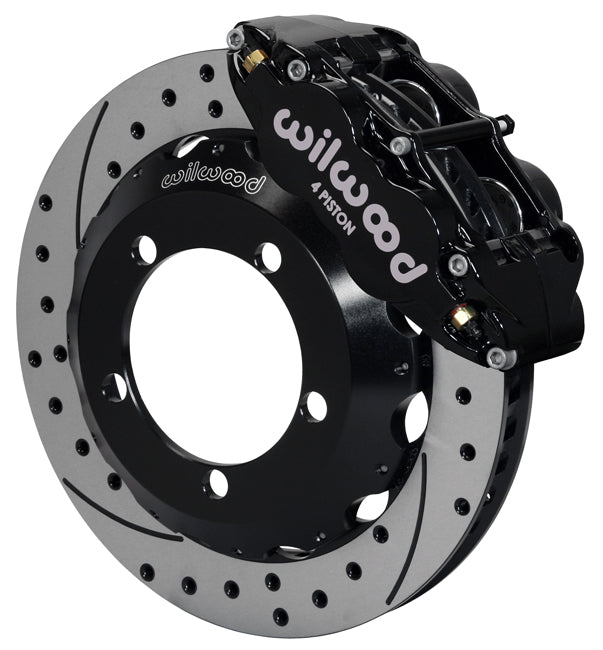

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

    • FITS:

    • 1976-1977 FORD BRONCO

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 4R FOUR-PISTON CALIPER SERVES AS THE BASIS OF THESE 12.88" BIG ROTOR KITS FOR THE POPULAR FORD BRONCOS. SL4R KITS ARE ENGINEERED APPLICATION SPECIFIC TO THESE VEHICLES, PROVIDING SIMPLIFIED INSTALLATION. EACH KIT IS ENGINEERED VEHICLE SPECIFIC AND UTILIZES THE EXISTING HUB ASSEMBLY. BIG BRAKE KITS OFFER INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

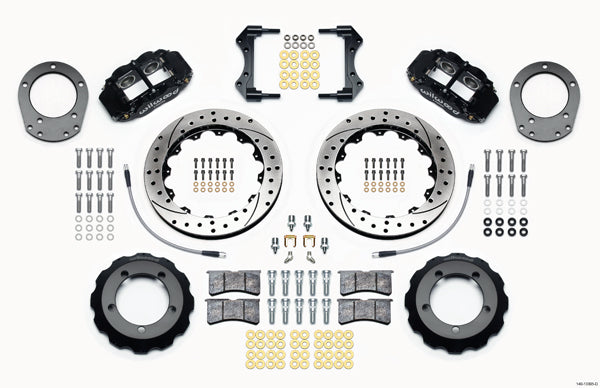

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • DRILLED & SLOTTED, 1.25" THICK X 12.88" O.D. ROTORS
    • FORGED NARROW SUPERLITE 4 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • STEEL BRAIDED LINES WITH FITTINGS
    • ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 52 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Ford Kits > Bronco Front Kits, 1966-1977
