TCI-IFS,FRONT,2 PIECE,SL6R,13",RED,DRILLED

Brand New Wilwood Forged Narrow Superlite 6R Big Brake Kit Featuring 12.88" Drilled Rotors with Red Calipers For Both Front Wheels (Part #140-13224-DR).

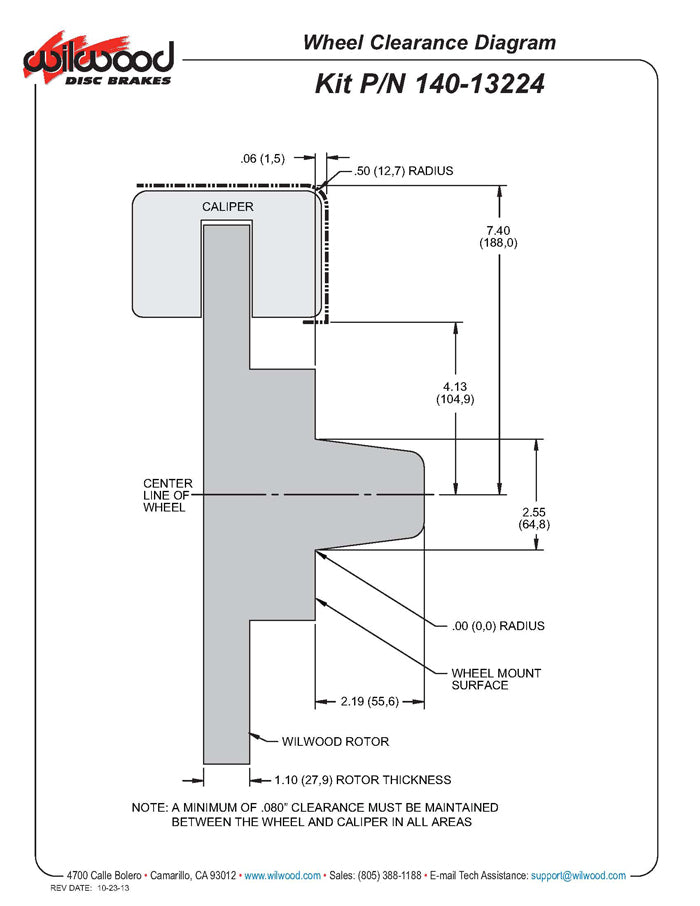

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• TCI:
  • IFS Suspension

FNSL6R billet Forged six-piston calipers with 12.88" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

This kit require at least 17" diameter wheels.

Kit includes parts for both front wheels:

• Forged Narrow Superlite 6R Calipers

• BP-10 Compound Brake Pads

• 1.10" Thick x 12.88" O.D. Rotors
• Rotor Hat
• Hub - Hat Mount
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 61 lbs.

You can view and download the assembly/instruction booklet here.
