BRAND NEW WILWOOD REAR PARKING BRAKE, PRO SERIES FORGED BILLET DYNAPRO DUST BOOT LUG MOUNT BOLT-ON 12.19" DISC BRAKE KIT FOR BOTH REAR WHEELS.

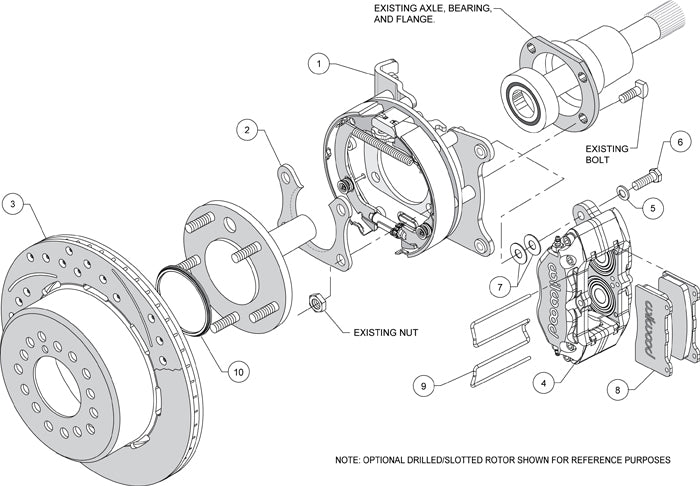

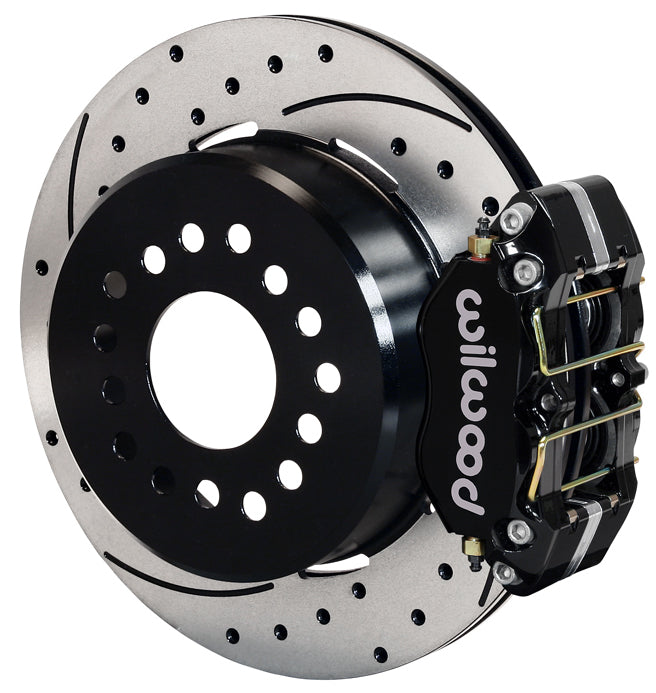

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED
FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.FITS:

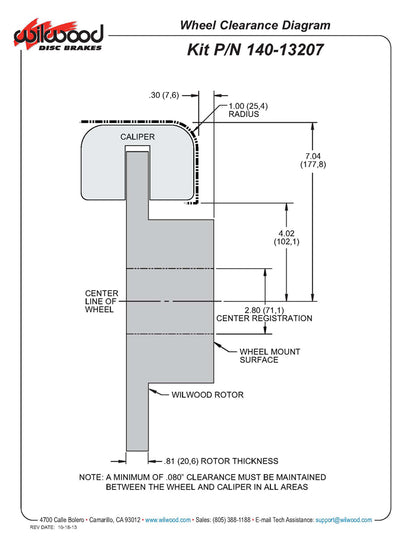

BIG BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.36" FLANGE OFFSET (SEE DIAGRAMS BELOW)
DP-DB PRO-SERIES REAR DISC KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNAPRO DUST BOOT CALIPERS, 12.19" ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES.
THESE KITS WERE DEVELOPED FOR APPLICATIONS OR LOCATIONS THAT REQUIRE OR PREFER A DUST-BOOTED PISTON. DUST-BOOTED ALUMINUM PISTONS PROVIDE ADDED PROTECTION AGAINST ROAD OR TRACK BORN DIRT AND DEBRIS ON LOW TO INTERMEDIATE TEMPERATURE RANGE APPLICATIONS THAT MAY ALSO OPERATE IN HARSH ENVIRONMENTS.
THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO PERSONALIZE THE STYLE AND OPTIMIZE BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

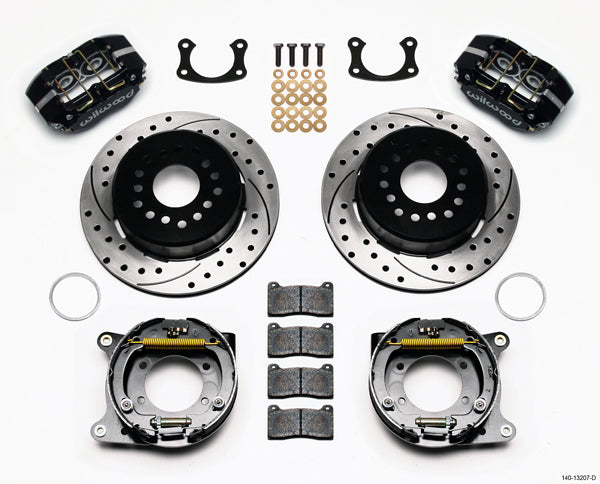

THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.KIT INCLUDES PARTS FOR BOTH REAR WHEELS:
-
DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
- FORGED BILLET DYNAPRO DUST BOOT CALIPERS - BLACK POWDER COATED
- CALIPER MOUNTING BRACKETS
- DRUM PARKING BRAKE ASSEMBLIES
- BP-10 SMART COMPOUND BRAKE PADS
- BRAKE HATS
- ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
COMPLETE KIT WEIGHS APPROXIMATELY 50 LBS.
YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
