SMALL FORD KIT,2.66",REAR PB,DPDB,12",DR

SMALL FORD KIT,2.66",REAR PB,DPDB,12",DR

WIL 140-13205D

$1,253.44
$1,253.44

Yes, we have this item in stock and ready to ship immediately!
View full details
  • BRAND NEW WILWOOD REAR PARKING BRAKE, PRO SERIES FORGED BILLET DYNAPRO DUST BOOT LUG MOUNT BOLT-ON 12.19" DISC BRAKE KIT FOR BOTH REAR WHEELS.

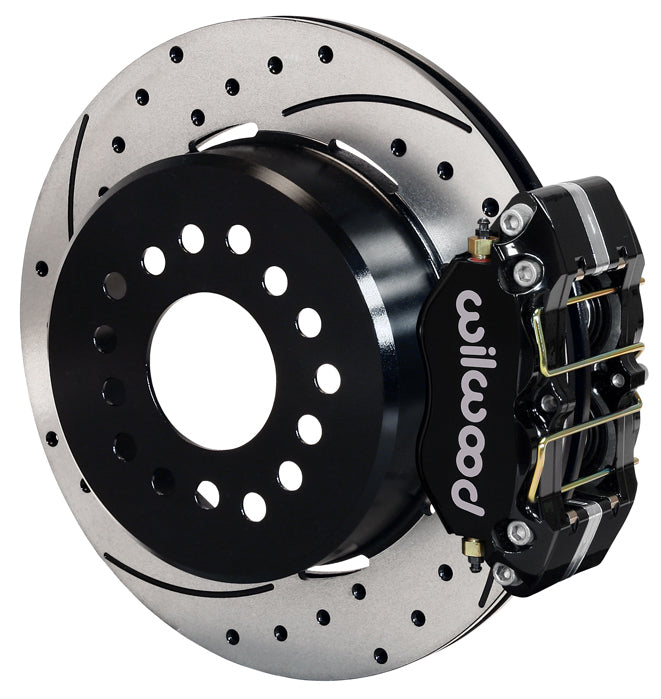

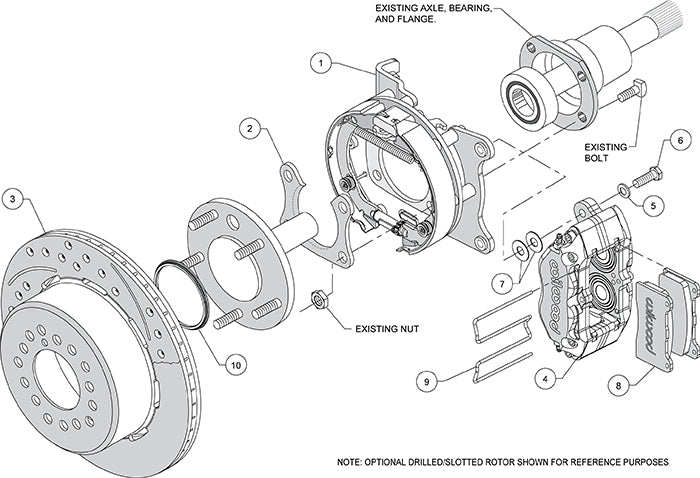

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

    • FITS:

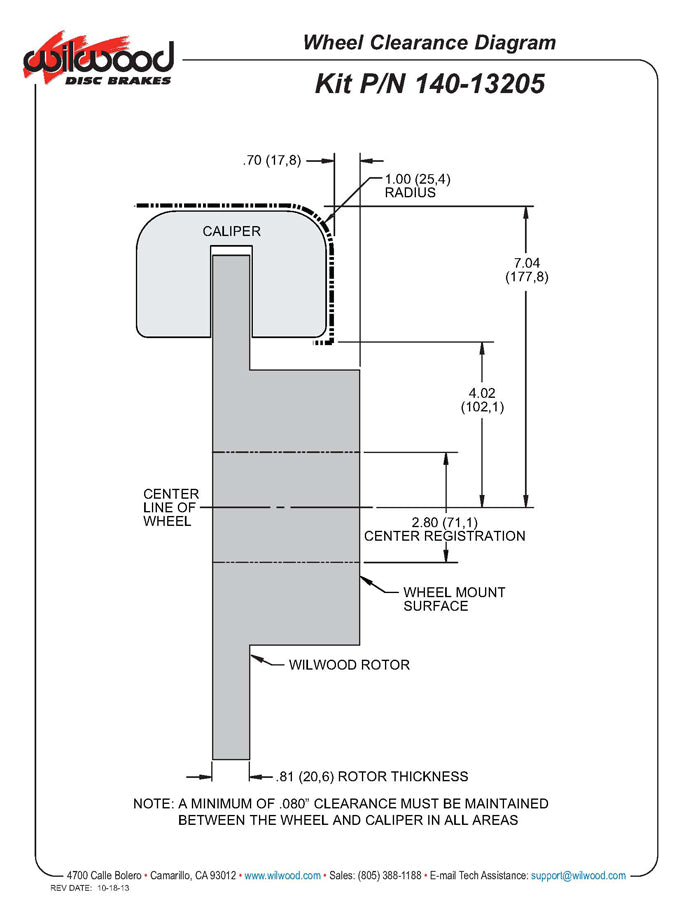

  • SMALL BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.336" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.66" FLANGE OFFSET (SEE DIAGRAMS BELOW)

  • DP-DB PRO-SERIES REAR DISC KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNAPRO DUST BOOT CALIPERS, 12.19" ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES.

  • THESE KITS WERE DEVELOPED FOR APPLICATIONS OR LOCATIONS THAT REQUIRE OR PREFER A DUST-BOOTED PISTON. DUST-BOOTED ALUMINUM PISTONS PROVIDE ADDED PROTECTION AGAINST ROAD OR TRACK BORN DIRT AND DEBRIS ON LOW TO INTERMEDIATE TEMPERATURE RANGE APPLICATIONS THAT MAY ALSO OPERATE IN HARSH ENVIRONMENTS.

  • THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO PERSONALIZE THE STYLE AND OPTIMIZE BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

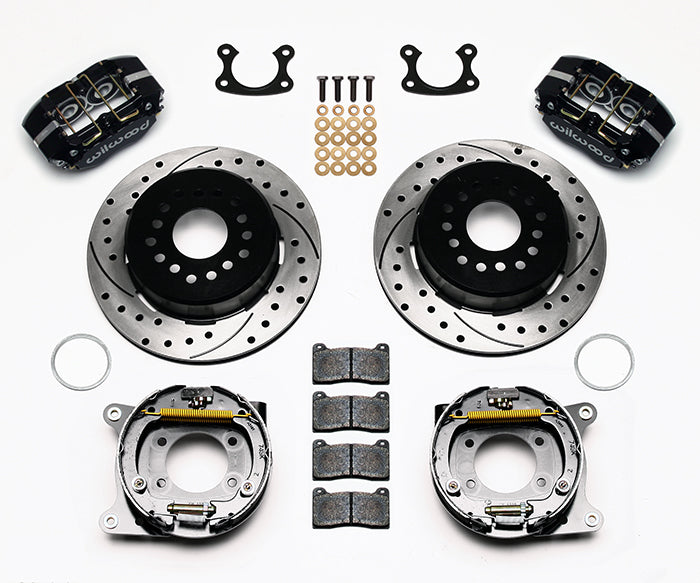

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
    • FORGED BILLET DYNAPRO DUST BOOT CALIPERS - BLACK POWDER COATED
    • CALIPER MOUNTING BRACKETS
    • DRUM PARKING BRAKE ASSEMBLIES
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 50 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View
