HONDA/ACURA CALIPER KIT,FRONT,DPHA,BLUE

HONDA/ACURA CALIPER KIT,FRONT,DPHA,BLUE

WIL 140-13029-CB

$539.99
$539.99
View full details
  • BRAND NEW WILWOOD STOCK REPLACEMENT DPHA 4 PISTON BRAKE CALIPER AND PAD SET FOR BOTH FRONT WHEELS.

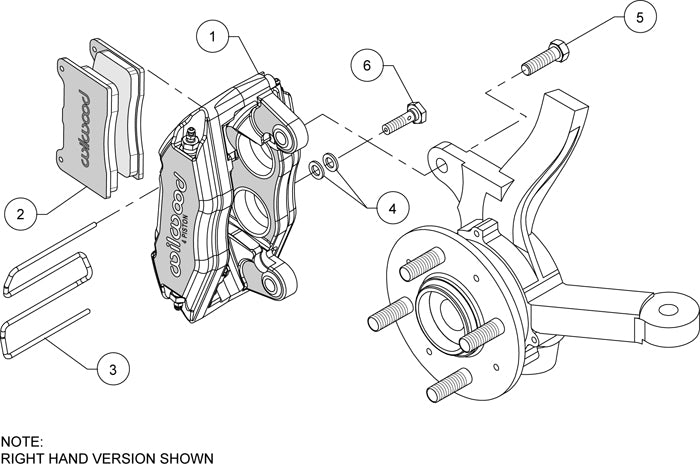

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED BLUE CALIPERS.

    • FITS:

    • ACURA:
      • INTEGRA:
        • 1990-1996, ALL*
        • 1997-2001, ALL EXCEPT TYPE R*
      • LEGEND:
        • 1986-1990, ALL*
    • HONDA:
      • ACCORD:
        • 1988-1989 LXI / SEI*
      • CIVIC:
        • 1993-2005 COUPE EX*
        • 1999-2000 COUPE SI*
        • 1994-1995 HATCHBACK SI*
        • 1996-1997 HATCHBACK, ALL*
        • 1990-2005 SEDAN EX*
        • 1994-1996 SEDAN LX*
        • 2001-2005 SEDAN GX*
        • 2002-2003 SI / SIR*
        • 2004-2005 LX*
        • 2004-2005 SE*
        • 2005 DX, HX, AND VP*
      • PRELUDE:
        • 1988 SI / SE, LATE YEAR MODEL ONLY*
        • 1989-1991 SI / SE, ALL*

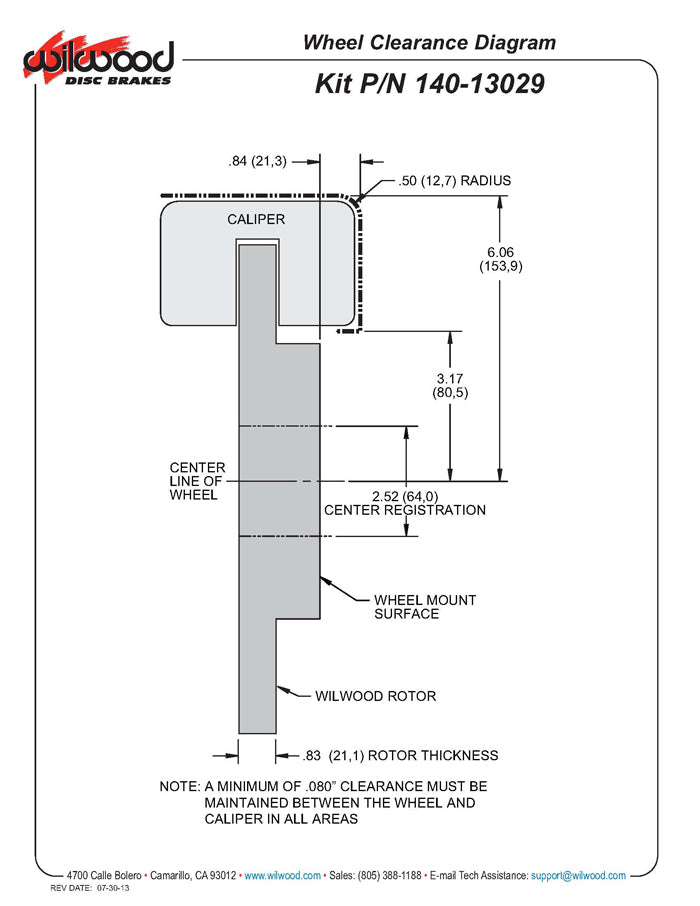

    • *THIS KIT WILL NOT WORK WITH VEHICLES EQUIPPED WITH OE 240MM ROTORS AND SPINDLES (EVEN IF UPGRADED TO 262MM ROTORS) DUE TO THE LOWER HEIGHT OF THE CALIPER MOUNT POINTS ON THESE SPINDLES. THIS KIT WILL REQUIRE A MINIMUM OF 15" DIAMETER WHEELS AND MAY NOT FIT ALL OE OR AFTERMARKET 15" RIMS WITHOUT SPACERS OR SPECIAL OFFSET REPLACEMENT WHEELS. PLEASE VERIFY YOUR WHEEL CLEARANCE USING FIGURE 2, ON PAGE 3 OF THIS INSTRUCTION BOOKLET (LINKED BELOW) BEFORE ATTEMPTING INSTALLATION OF THIS KIT.

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • WILWOODS DYNAPRO HONDA/ACURA CALIPERS (DPHA), FOR HONDA AND ACURA MODELS ORIGINALLY EQUIPPED WITH 262MM DIAMETER ROTORS, BOLT DIRECTLY TO THE STOCK MOUNTS ON FACTORY SPINDLES, FIT OVER THE OE 262MM DIAMETER ROTOR, ACCEPT THE OE BRAKE HOSE, AND CLEAR MANY FACTORY ALUMINUM WHEELS INCLUDING THE EM1 SI 15" WHEEL. DESIGNED AROUND WILWOODS PROVEN DYNAPRO SERIES 4-PISTON CALIPERS, THE FORGED BILLET BODIED DPHA CALIPER DELIVERS HIGH-STRENGTH CLAMPING FORCE AND POSITIVE STOPPING POWER. FOUR STAINLESS STEEL PISTONS PROVIDE FULLY BALANCED PAD LOADING, ALONG WITH THE CORROSION RESISTANCE AND THERMAL RETARDANT QUALITIES OF THE STAINLESS ALLOY THAT WILL KEEP YOUR CALIPERS COOLER AND RUNNING TROUBLE FREE FOR MANY MORE MILES. CALIPERS WORK PERFECTLY WITH THE OE MASTER CYLINDER AND ABS FUNCTIONS, AND FEATURE HIGH-GLOSS, HIGH-TEMP, BRAKE FLUID RESISTANT SEALED POWDER COAT AND WILWOODS SIGNATURE LOGO.

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • DYNAPRO HA 4 PISTON CALIPERS - BLUE
    • BP-10 SMART COMPOUND BRAKE PADS
    • MOUNTING BOLTS NECESSARY TO INSTALL THE CALIPERS ON BOTH FRONT WHEELS

    • COMPLETE KIT WEIGHS APPROXIMATELY 13 LBS.

    • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
