SUBARU IMPREZA WRX,REAR,DP,13" DRILLED ROTORS,RED

Brand New Wilwood DynaPro Radial Brake Kit Featuring 12.88" Drilled Rotors with Red Calipers For Both Rear Wheels (Part #140-13013-DR).

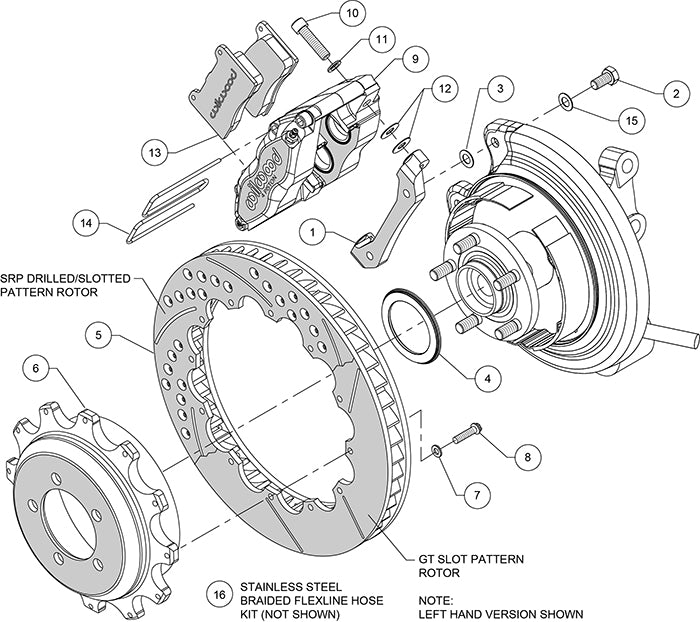

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Subaru:
  • 2006-2007 Impreza WRX

  • 2006-2007 Impreza WRX Limited

  • 2006-2007 Impreza WRX TR
• Factory Five Racing:
  • 2013+ 818 2006-2007 WRX Spindle & Disc Rear End

Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.

This kit require at least 17" diameter wheels.

Kit includes parts for both rear wheels:

• 1.10" Thick x 12.88" O.D. Rotors
• DynaPro 4 Piston Radial Mount Calipers

• BP-10 Compound Brake Pads

• Rotor Hat
• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 54 lbs.

You can view and download the assembly/instruction booklet here.
