GM C-KIT,2.75",REAR PB,12.88",DRILLED,RED

GM C-KIT,2.75",REAR PB,12.88",DRILLED,RED

SKU:WIL 140-12964DR

Regular price $1,949.99
Regular price Sale price $1,949.99
View full details
  • BRAND NEW WILWOOD BIG BRAKE REAR PARKING BRAKE, SUPERLITE, BOLT-ON 12.88" DISC BRAKE KIT FOR BOTH REAR WHEELS

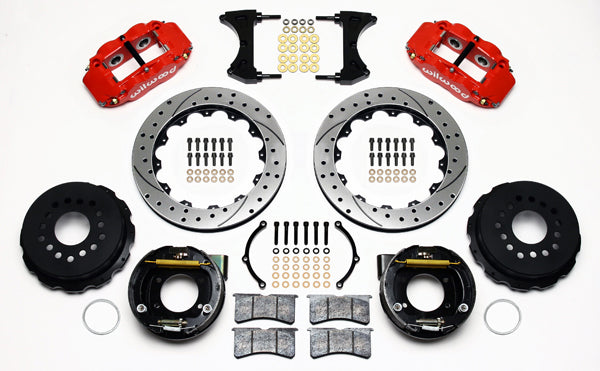

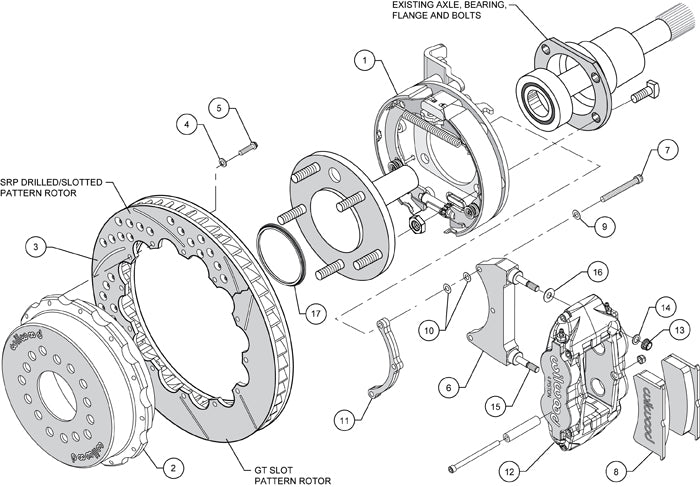

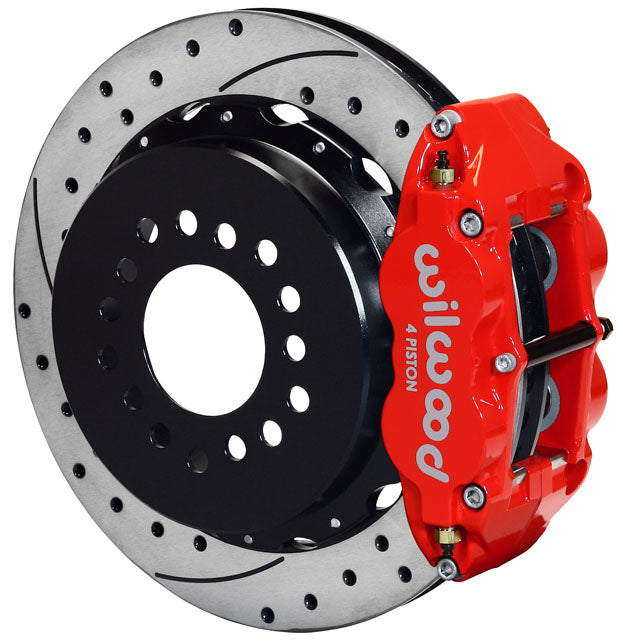

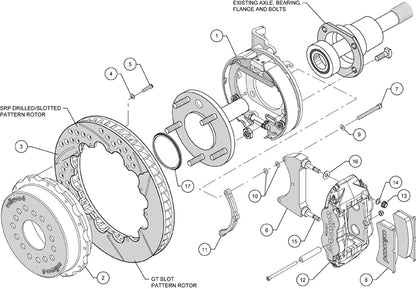

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.
  • FITS:

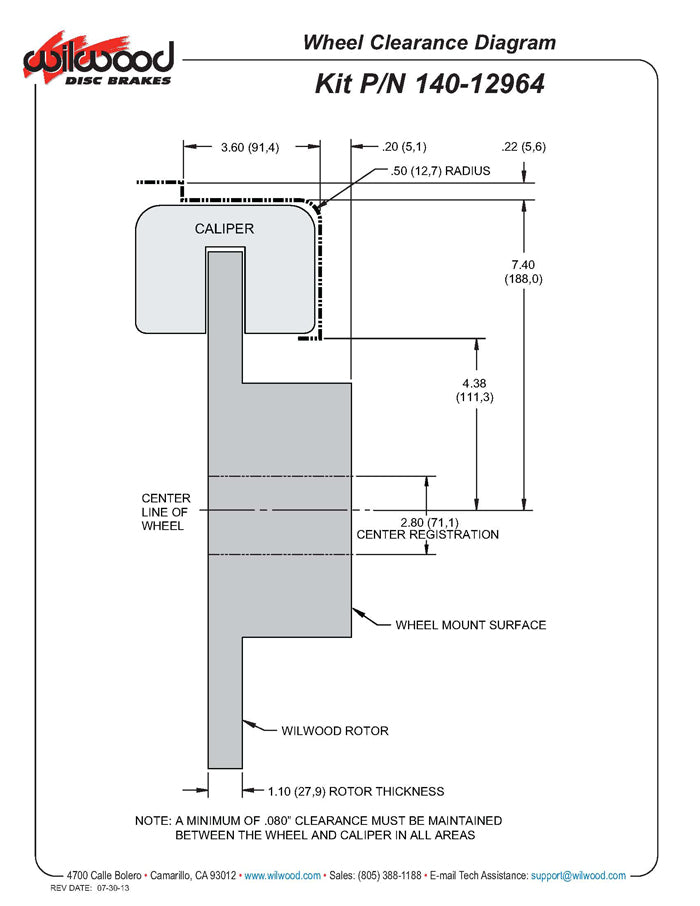

    • GM REAR ENDS WITH THE "GM/CHEVY" AXLE FLANGES & WITH A 2.75" FLANGE OFFSET (SEE DIAGRAMS TO THE RIGHT)
    • THIS WAS THE MAIN REAR END THAT GM USED ON ALMOST ALL A-BODY AND F-BODY CARS FROM 1964-1978, AMONG MANY OTHERS. MAKE SURE TO CHECK THE DIAGRAMS AT THE RIGHT OF PAGE TO CONFIRM THE FITMENT WITH YOUR REAR END.

    • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

    • SUPERLITE 4 PISTON REAR DISC KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. SUPERLITE CALIPERS, 13" TWO-PIECE ROTORS, AND HIGH PERFORMANCE BP-10 COMPOUND PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES ON ALL TYPES OF CUSTOM, SHOW AND HIGH PERFORMANCE STREET MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

    • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.
    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

      • DRILLED & SLOTTED, 1.10" THICK X 12.88" O.D. ROTORS
      • SUPERLITE 4 PISTONS CALIPERS - RED
      • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
      • BP-10 SMART COMPOUND BRAKE PADS
      • BRAKE HATS
      • ALL BOLTS, WASHERS, NUTS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

    • COMPLETE KIT WEIGHS APPROXIMATELY 67 LBS.
