65-69 FORD MUSTANG KIT,FRONT,12.19",RED

65-69 FORD MUSTANG KIT,FRONT,12.19",RED

WIL 140-12947R

$1,259.99
$1,259.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT. FOR BOTH FRONT WHEELS.

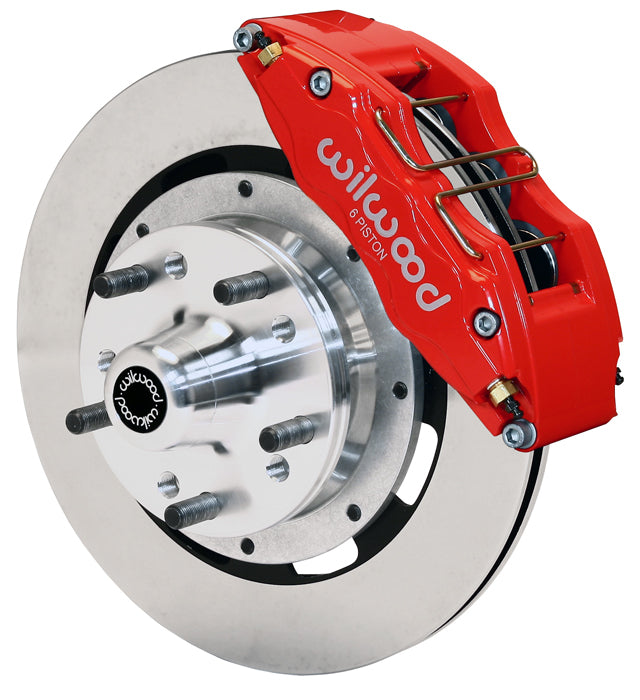

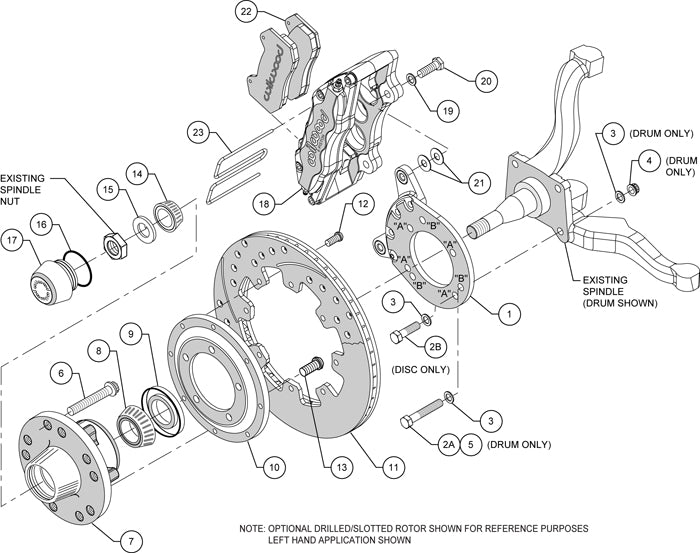

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED RED CALIPERS.

    • FITS:

    • FORD:
      • 1965-1966 MUSTANG WITH V-8 SPINDLES
      • 1967-1969 MUSTANG, ALL
      • 1970 MUSTANG, GT350 & 500 ONLY
      • 1966-1969 FAIRLANE, ALL
      • 1965 FALCON WITH V-8 SPINDLES
      • 1966-1969 FALCON, ALL
      • 1970 FALCON WITH DRUM BRAKE SPINDLES (THROUGH 8/24/1969 ONLY)
      • 1970 MAVERICK WITH DRUM BRAKE SPINDLES (THROUGH 8/24/1969 ONLY)
      • 1965 RANCHERO WITH V-8 SPINDLES
      • 1966-1969 RANCHERO, ALL
      • 1968-1969 TORINO, ALL
    • MERCURY:
      • 1965 COMET WITH V-8 SPINDLES
      • 1966-1969 COMET, ALL
      • 1967-1969 COUGAR, ALL
      • 1967-1969 CYCLONE, ALL
      • 1968-1969 MONTEGO, ALL

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER SIX PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

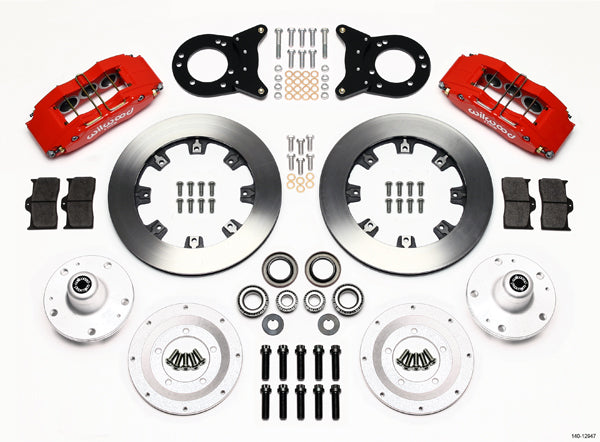

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • 1.10" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • HUBS
    • BEARINGS
    • SEALS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 47 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
