70-73 FORD MUSTANG KIT,FRONT,DP6,12.19"

70-73 FORD MUSTANG KIT,FRONT,DP6,12.19"

SKU:WIL 140-12945B

Regular price $1,259.99
Regular price Sale price $1,259.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT. FOR BOTH FRONT WHEELS.

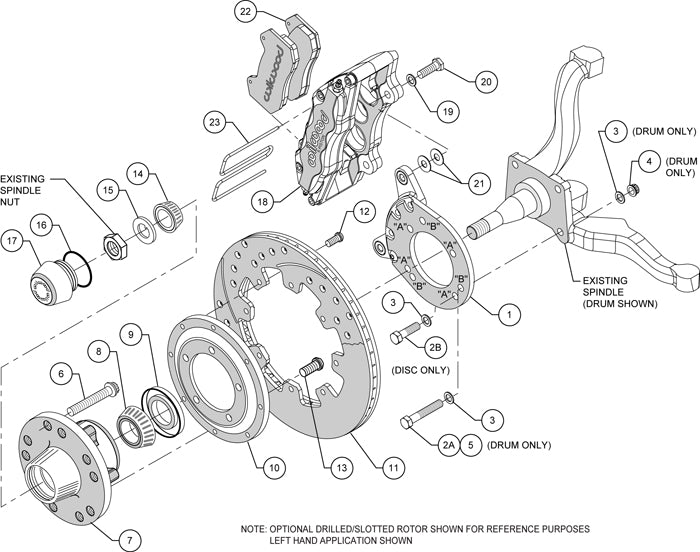

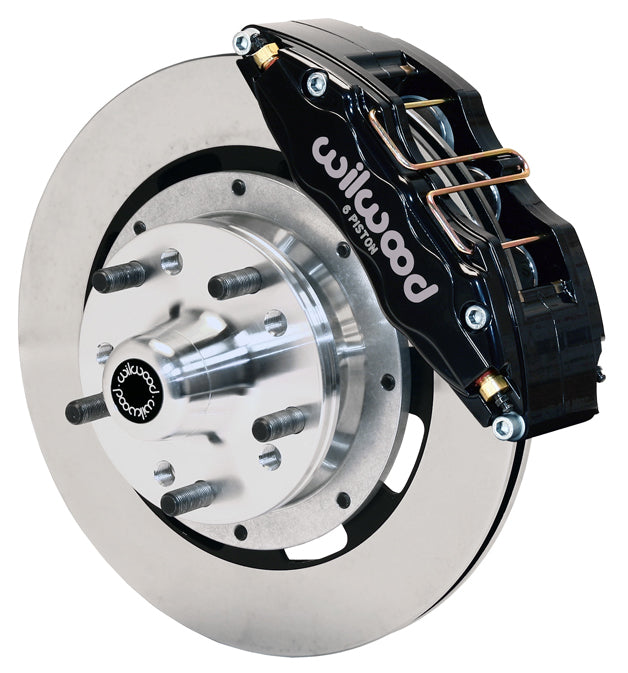

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED BLACK CALIPERS.
  • FITS:

    • FORD:
      • 1969 MUSTANG, BOSS 302/429 ONLY
      • 1970-1973 MUSTANG, ALL
      • 1970 FAIRLANE, ALL
      • 1971 FAIRLANE WITH DISC BRAKE SPINDLES
      • 1970 FALCON WITH DISC BRAKE SPINDLES
      • 1970 FALCON WITH DRUM BRAKE SPINDLES (FROM 8/25/69 THROUGH 12/31/69)
      • 1970 MAVERICK WITH DRUM BRAKE SPINDLES (FROM 8/25/69 THROUGH 12/31/69)
      • 1971-1974 MAVERICK WITH DRUM BRAKE SPINDLES
      • 1970 RANCHERO, ALL
      • 1971 RANCHERO WITH DISC BRAKE SPINDLES
      • 1970-1971 TORINO, ALL
    • MERCURY:
      • 1970-1971 COMET, ALL
      • 1972-1973 COMET WITH DRUM BRAKE SPINDLES
      • 1970-1972 COUGAR, ALL
      • 1973 COUGAR WITH DISC BRAKE SPINDLES
      • 1970 CYCLONE, ALL
      • 1970-1971 MONTEGO, ALL

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER SIX PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

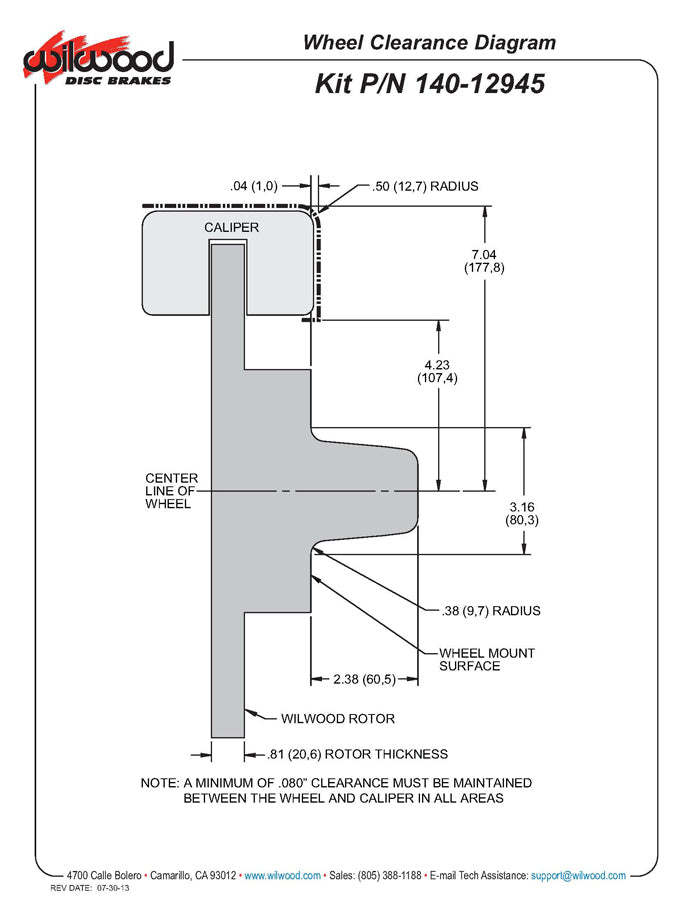

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

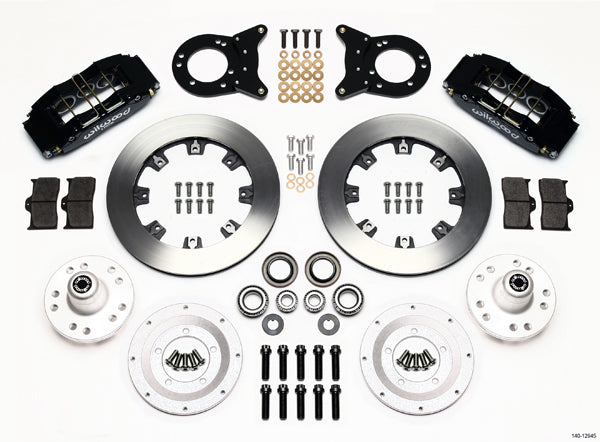

  • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • .810" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • HUBS
    • BEARINGS
    • SEALS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 47 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
