54-56 FORD KIT,FRONT,FDL,11.28"

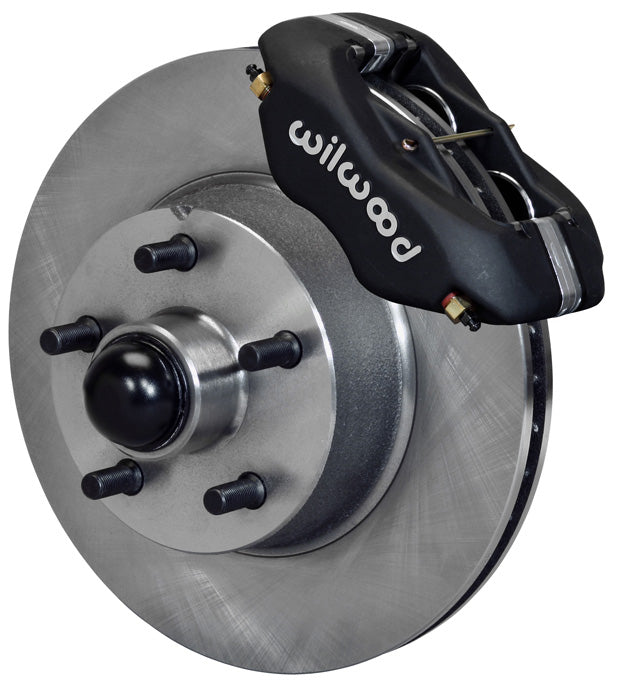

BRAND NEW WILWOOD PRO SERIES DYNALITE BRAKE FRONT HUB & 11.28" DISC BRAKE KIT (PART #140-12922) FOR BOTH FRONT WHEELS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE WILWOOD FDL PRO-SERIES FRONT 1 PIECE HUB AND ROTOR KITS FOR FORD VEHICLES FROM 1954-1956 OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. THIS COMPLETELY NEW KIT DESIGN, UTILIZES A LARGE 11.28" X 1.00" ROTOR AND HUB ASSEMBLY. BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS. FDL 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE CALIPERS, ROTORS AND, HUB ASSEMBLY, BRACKETS, HARDWARE, AND LINE KIT.

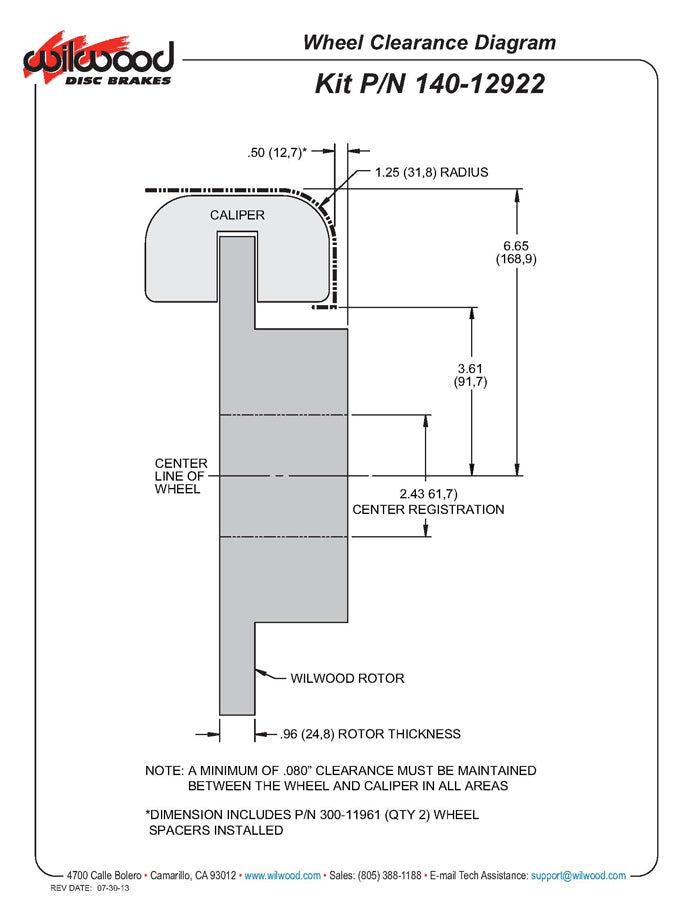

NOTE: ONLY ONE SIDE PICTURED. THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

FITS:

• FORD:
• 1954-1956 COUNTRY SEDAN
• 1954-1956 COUNTRY SQUIRE
• 1954-1956 COURIER SEDAN DELIVERY
• 1954 CRESTLINE
• 1954-1956 CUSTOMLINE
• 1955-1956 FAIRLANE
• 1954-1956 MAINLINE
• 1956 PARK LANE WAGON
• 1954-1956 SKYLINER
• 1956 SQUIRE
• 1954-1956 SUNLINER
• 1955-1957 THUNDERBIRD
• 1954-1956 VICTORIA
• MERCURY:
• 1954-1956 CUSTOM, REQUIRES CHANGE TO 5 X 4 1/2" BOLT PATTERN
• 1956 MEDALIST, REQUIRES CHANGE TO 5 X 4 1/2" BOLT PATTERN
• 1955-1956 MONTCLAIR, REQUIRES CHANGE TO 5 X 4 1/2" BOLT PATTERN
• 1954-1956 MONTEREY, REQUIRES CHANGE TO 5 X 4 1/2" BOLT PATTERN

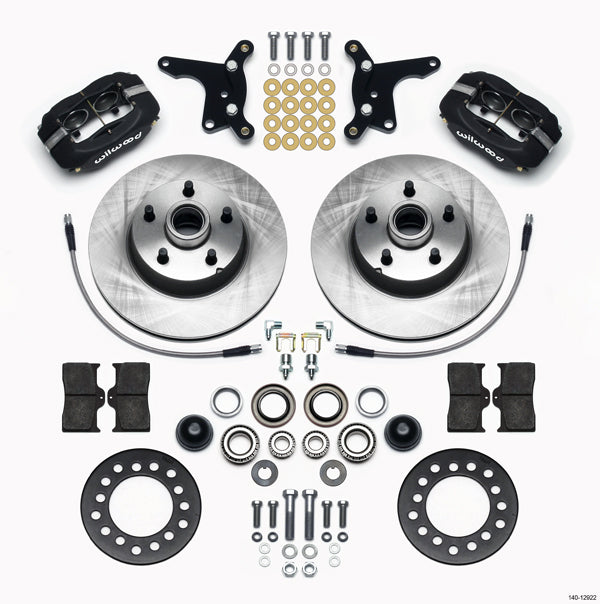

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.00" THICK X 11.28" O.D. 1 PIECE HUBS & ROTORS WITH A 5 X 4.50" BOLT CIRCLE
• FORGED DYNALITE 4 PISTON CALIPERS
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED LINE KIT WITH FITTINGS
• BEARINGS, SEALS, WASHERS, DUST CAPS, & ALL BOLTS, SHIMS, & SPACERS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

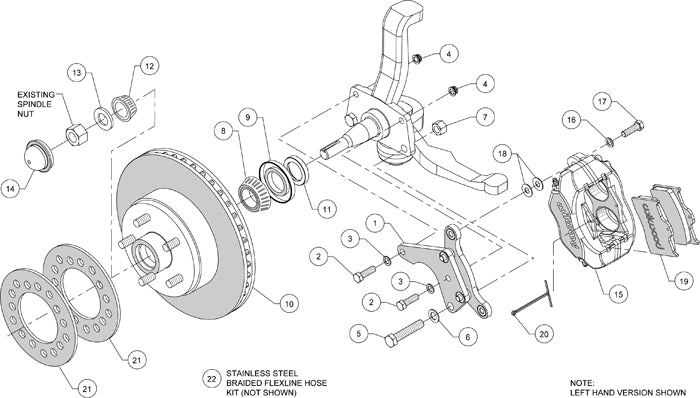

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISC BRAKE KIT HERE.
