49-53 FORD KIT,FRONT,FDL,11.28"

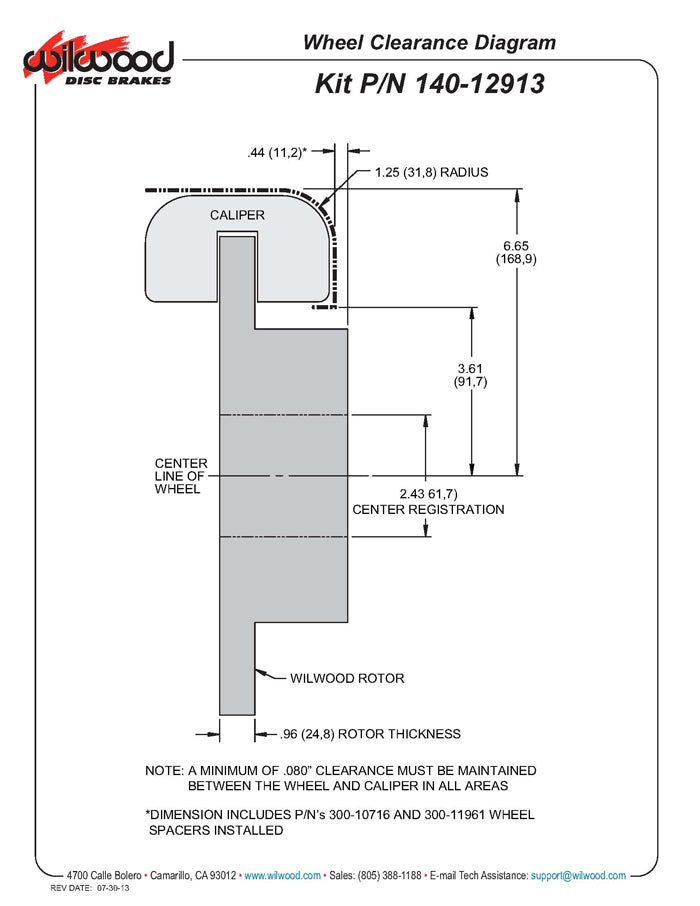

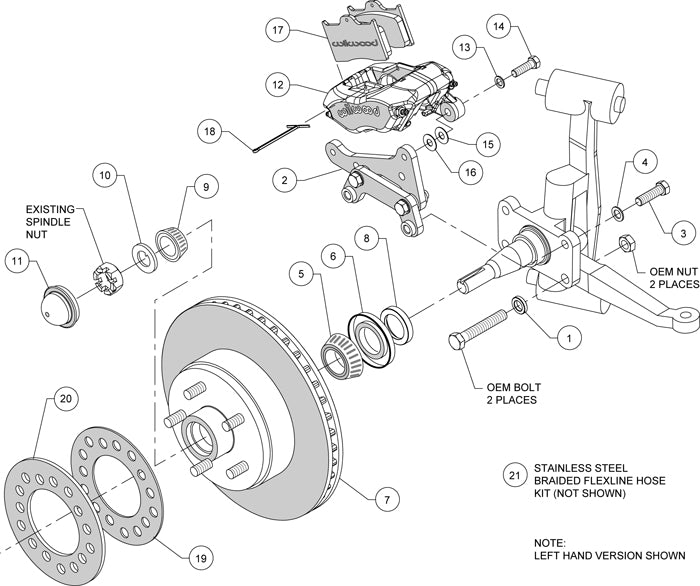

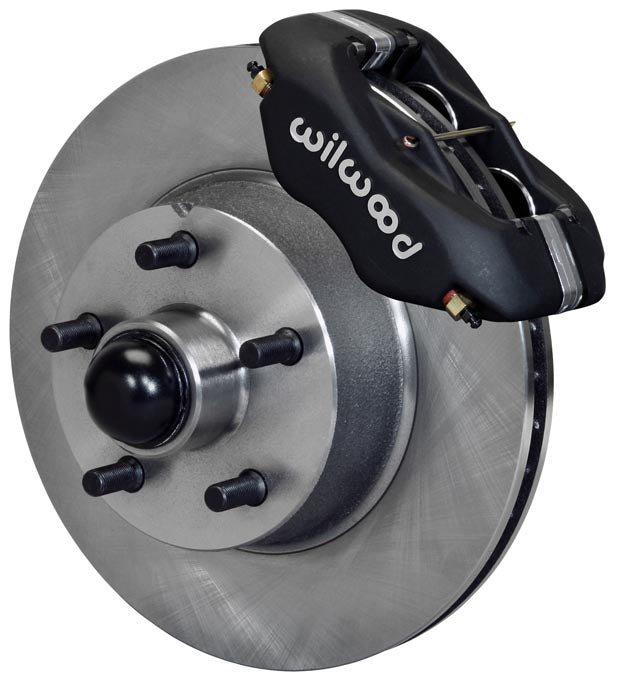

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

NEW WILWOOD PRO SERIES DYNALITE BRAKE FRONT HUB & 11.28" DISC BRAKE KIT (PART #140-12913) FOR BOTH FRONT WHEELS.

FOR:
* FORD:
-1950-1952 COUNTRY SQUIRE
-1950-1951 CRESTLINE, ALL
-1952 CRESTLINE, TUDOR, FORDOR COUPE
-1952 CRESTLINE VICTORIA
-1953 CRESTLINE, TUDOR, FORDOR COUPE, CONVERTIBLE & WAGON
-1950 CRESTLINER
-1949-1951 CUSTOM, TUDOR, FORDOR COUPE & CONVERTIBLE
-1953 CUSTOMLINE, TUDOR, FORDOR COUPE, CONVERTIBLE, & WAGON
-1949-1951 DELUXE, TUDOR, FORDOR COUPE & CONVERTIBLE
-1952 MAINLINE, TUDOR, FORDOR COUPE
-1953 MAINLINE, TUDOR, FORDOR COUPE, CONVERTIBLE & WAGON
-1952 SUNLINER
-1951-1953 VICTORIA

* MERCURY:
-1952-1953 CUSTOM
-1953-1953 MONTEREY

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS FDL PRO-SERIES FRONT 1 PIECE HUB AND ROTOR KITS FOR FORD AND SELECT MERCURY VEHICLES FROM 1949-1953 OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES.

THIS COMPLETELY NEW KIT DESIGN, UTILIZES A LARGE 11.28" X 1.00" ROTOR AND HUB ASSEMBLY. BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST.

INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS.

FDL 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE CALIPERS, ROTORS AND, HUB ASSEMBLY, BRACKETS, HARDWARE, AND LINE KIT.

THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

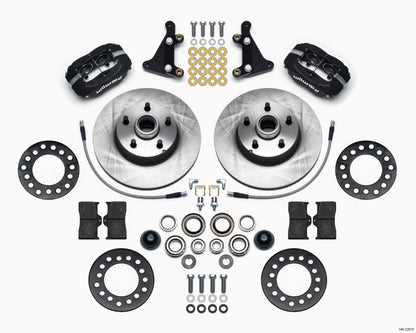

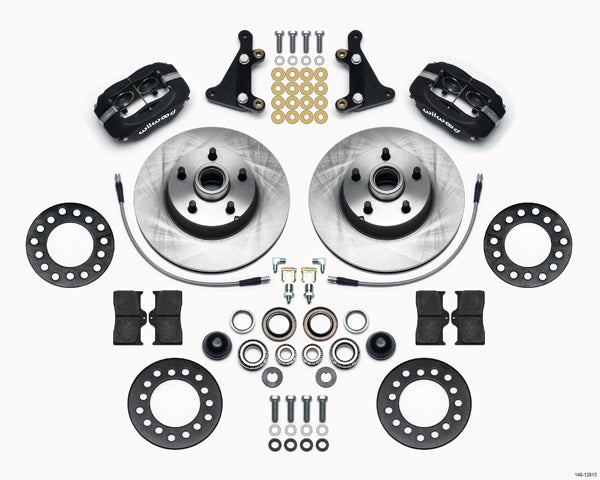

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

* 1.00" THICK X 11.28" O.D. 1 PIECE HUBS & ROTORS WITH A 5 X 4.50" BOLT CIRCLE
* FORGED DYNALITE 4 PISTON CALIPERS
* CALIPER MOUNTING BRACKETS
* BP-10 SMART COMPOUND BRAKE PADS
* STEEL BRAIDED LINE KIT WITH FITTINGS BEARINGS, SEALS, WASHERS, DUST CAPS, & ALL BOLTS, SHIMS, & SPACERS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

* YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
