06-12 MAZDA MIATA MX-5,FRONT,13",DRILLED,RED

06-12 MAZDA MIATA MX-5,FRONT,13",DRILLED,RED

WIL 140-12907DR

$2,019.99
$2,019.99
View full details

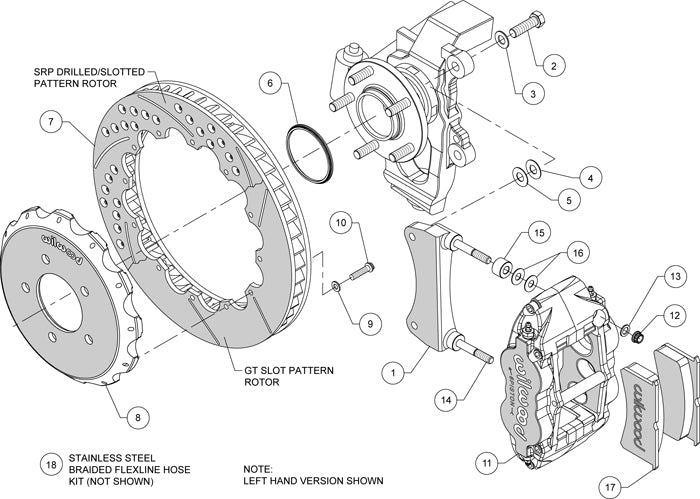

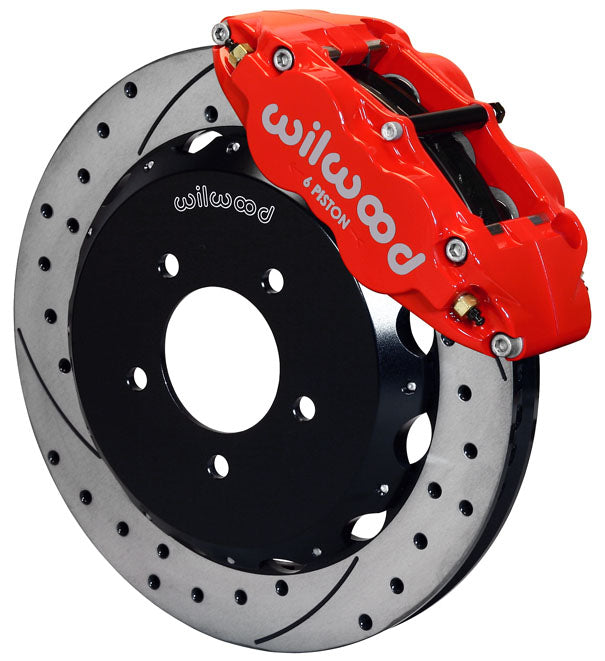

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE SUPERLITE BOLT-ON FRONT HAT & 12.88" DISC BRAKE KIT FOR:
    MAZDA:
    -2006-2014 MAZDA MIATA MX-5*

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • THE UNSURPASSED BRAKING CAPACITY OF THE SL6 FORGED BILLET SIX-PISTON CALIPER SERVES AS THE BASE OF THESE BIG ROTOR KITS
  • THEY ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED
  • BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES

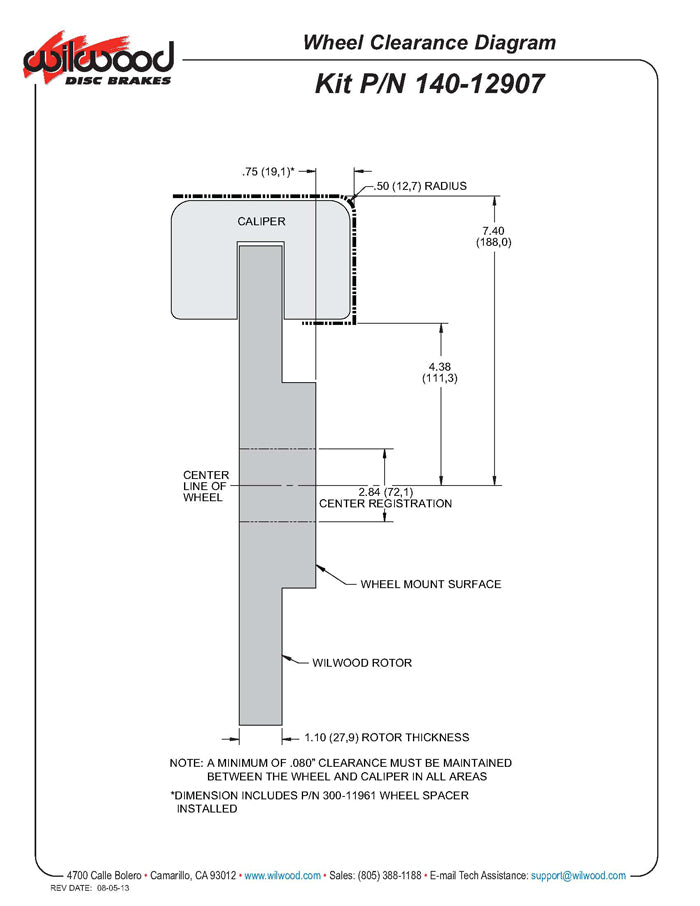

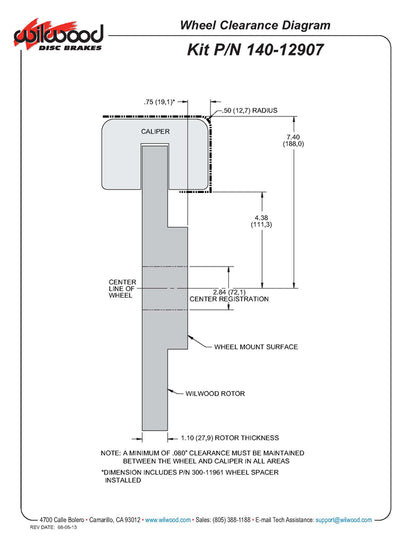

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS

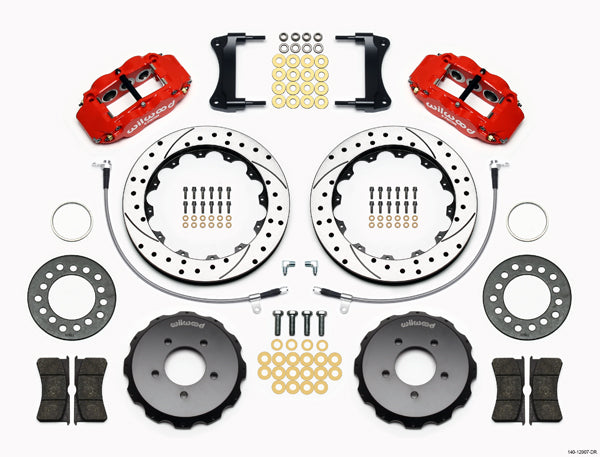

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 1.10" THICK X 12.88" O.D. ROTORS,
    *SUPERLITE 6 PISTON CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HATS,
    *STEEL BRAIDED LINES WITH FITTINGS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Mazda Kits > Miata Front Kits, 2006-2012
