08-12 SUBARU WRX,REAR,13",DRILLED,RED

08-12 SUBARU WRX,REAR,13",DRILLED,RED

SKU:WIL 140-12877DR

Regular price $2,019.99
Regular price Sale price $2,019.99
View full details
  • BRAND NEW WILWOOD PREMIUM 12.88 BIG BRAKE KIT WITH FORGED NARROW SUPERLITE 4 PISTON CALIPERS FOR OE PARKING BRAKE FOR BOTH REAR WHEELS.

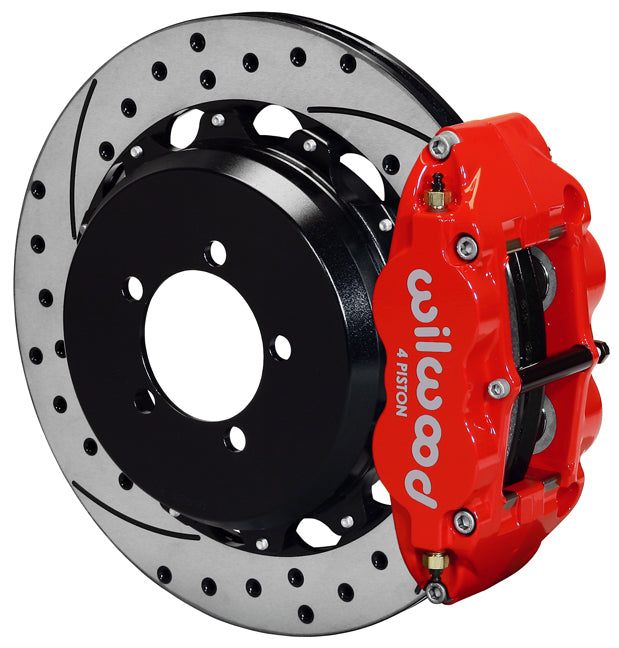

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.
  • FITS:

    • SUBARU:
      • 2013-2014 IMPREZA WRX
      • 2008-2012 IMPREZA WRX STI
      • 2013-2014 IMPREZA WRX LIMITED
      • 2013-2014 IMPREZA WRX PREMIUM
      • 2013-2014 IMPREZA WRX STI
      • 2013-2014 IMPREZA WRX STI LIMITED
      • 2008-2012 IMPREZA WRX, EXCEPT STI

  • FORGED NARROW SUPERLITE 4R FOUR PISTON CALIPERS ARE COMBINED WITH BP-10 COMPOUND PADS AND 12.88" ROTORS IN THIS GROUP OF BIG BRAKE KITS FOR CUSTOM HIGH PERFORMANCE STREET AND SHOW MACHINES. THIS GROUP OF SPECIALIZED KITS FOR IMPORT CARS RETAIN FULL USE OF THE OE PARKING BRAKE, MASTER CYLINDER OUTPUT, AND ABS WHERE USED.

  • THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 4R FOUR-PISTON CALIPER SERVES AS THE BASE OF THIS GROUP OF THESE BIG ROTOR KITS FOR POPULAR LATE MODEL VEHICLES. FNSL4R KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.
  • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • DRILLED & SLOTTED, 0.81" THICK X 12.88" O.D. ROTORS
    • FORGED NARROW SUPERLITE 4 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • HUBS
    • STEEL BRAIDED LINES WITH FITTINGS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 52 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
  • "
