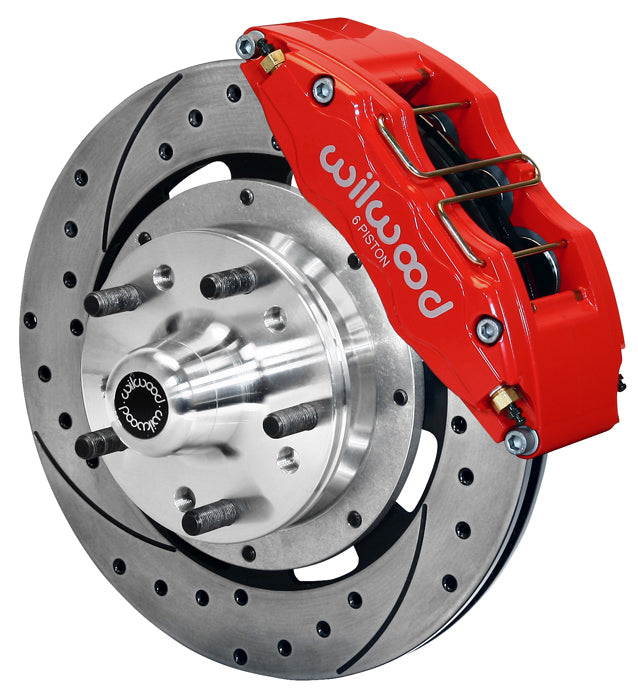

80-87 GM KIT,FRONT,DP6,12.19",DRILLED,RED

80-87 GM KIT,FRONT,DP6,12.19",DRILLED,RED

WIL 140-12837DR

$1,309.99
$1,309.99
View full details

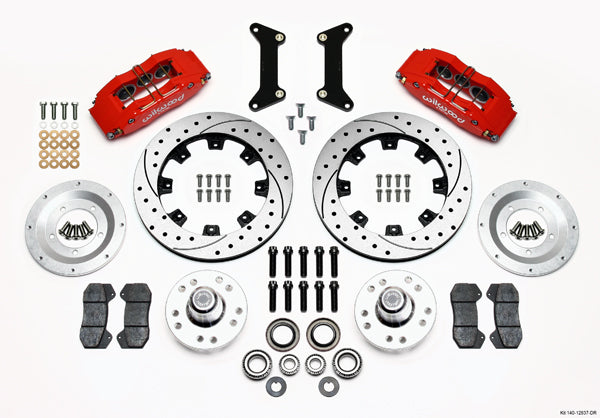

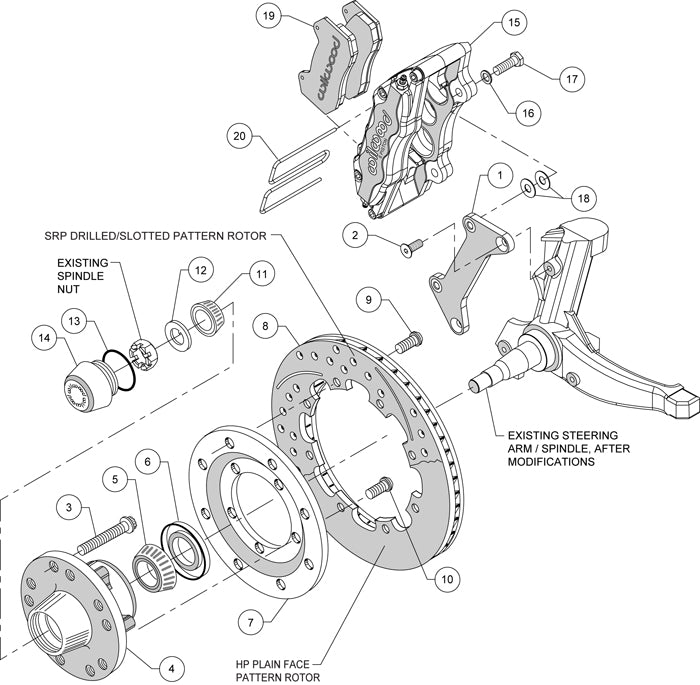

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD DYNAPRO 6 BIG BRAKE FRONT HUB KIT & 12.19" DISC BRAKE KIT FOR:
    *CHEVROLET:
    -1979-1987 EL CAMINO
    -1979-1987 MALIBU
    -1979-1988 MONTE CARLO
    -1983-1997 S10 BLAZER 4X2
    -1982 S10 PICKUP
    -1983-2002 S10 PICKUP 4X2

    *GMC:
    -1983-1997 S15 JIMMY 4X2
    -1982 S15 PICKUP
    -1983-2002 S15 PICKUP 4X2
    -1979-1987 SPRINT

    *BUICK:
    -1979-1981 CENTURY
    -1982-1987 GRAND NATIONAL
    -1979-1987 REGAL

    *ISUZU:
    -1996-2000 HOMBRE 4X2

    *OLDSMOBILE:
    -1979-1981 CUTLASS
    -1979-1983 CUTLASS CRUISER
    -1982-1988 CUTLASS SUPREME RWD ONLY

    *PONTIAC:
    -1982-1987 BONNEVILLE
    -1979-1980 GRAND AM
    -1979-1987 GRAND PRIX
    -1979-1983 LEMANS

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR THESE KITS WITH TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS & VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF 6 PISTON CALIPERS PROVIDES AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER 6 PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, & SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW & HIGH PERFORMANCE STREET/STRIP MACHINES
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

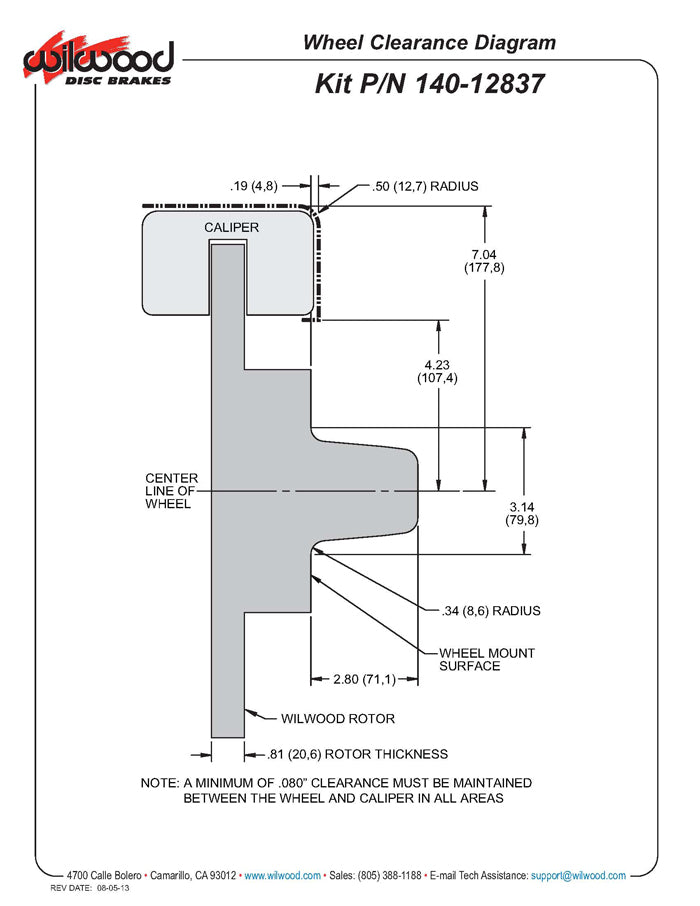

  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 12.19" O.D. ROTORS,
    *DYNAPRO 6 PISTON CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Chevelle, Malibu, M/C, El Camino Front Kits, 1980-1987
