12-NEWER FIAT 500 KIT,FRONT,DP6,12.19"

12-NEWER FIAT 500 KIT,FRONT,DP6,12.19"

WIL 140-12767B

$1,149.99
$1,149.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT. FOR BOTH FRONT WHEELS.

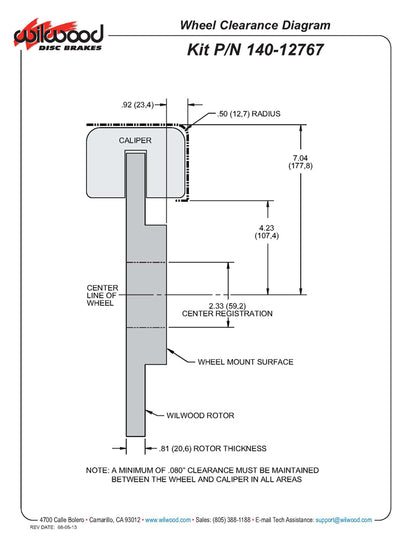

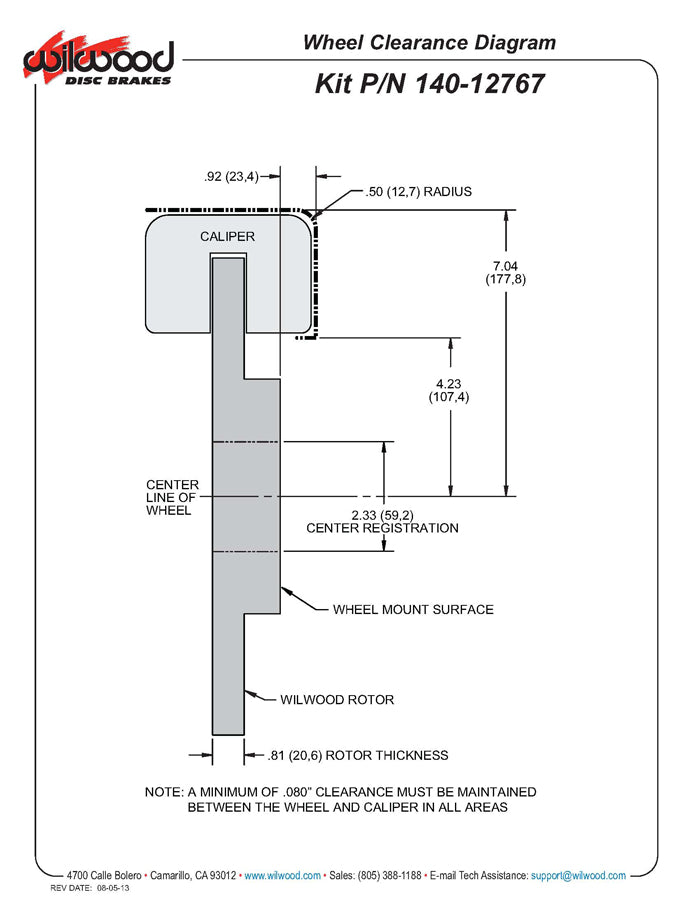

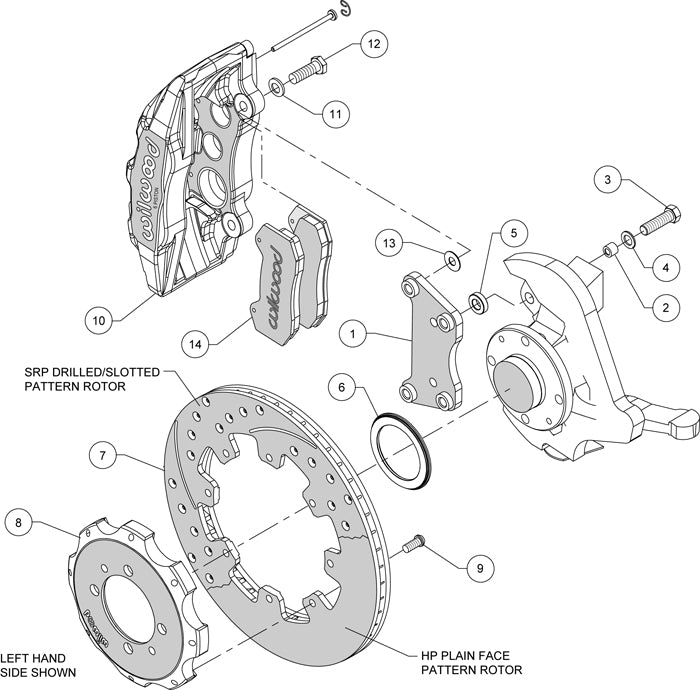

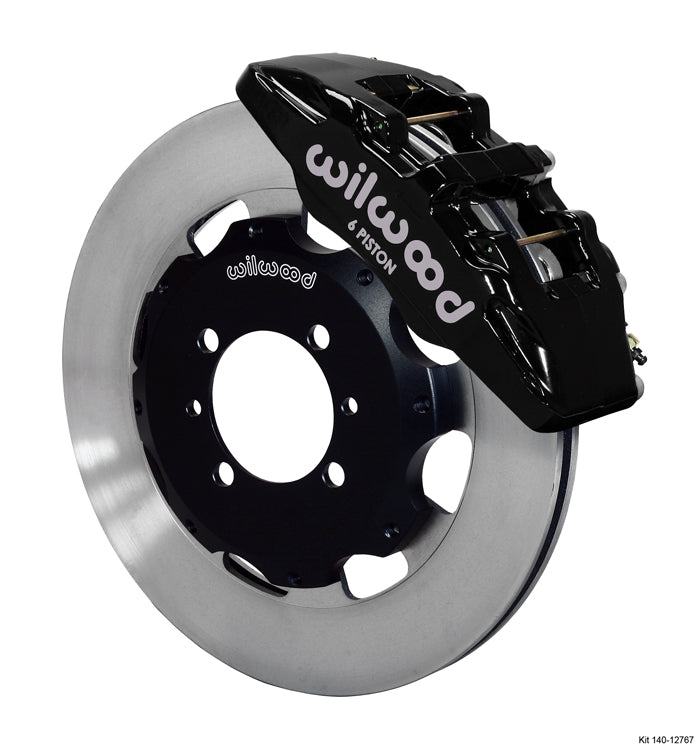

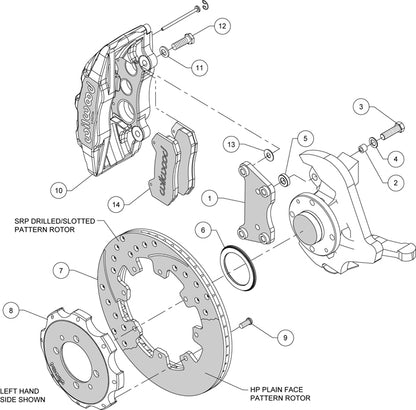

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED BLACK CALIPERS.

    • FITS:

    • FIAT:
      • FIAT 500 2012-2015 ABARTH
      • FIAT 500 2013-2015 ABARTH CABRIO
      • FIAT 500 2012 C GUCCI
      • FIAT 500 2012-2015 C LOUNGE
      • FIAT 500 2012-2015 C POP
      • FIAT 500 2013-2015 E
      • FIAT 500 2014 GQ
      • FIAT 500 2012 GUCCI
      • FIAT 500 2012-2015 LOUNGE
      • FIAT 500 2012-2015 POP
      • FIAT 500 2012-2015 SPORT
      • FIAT 500 2013-2015 TURBO

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER SIX PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

  • NOTE: BRAKE LINE KIT 220-12780 IS INCLUDED IN THIS BRAKE KIT

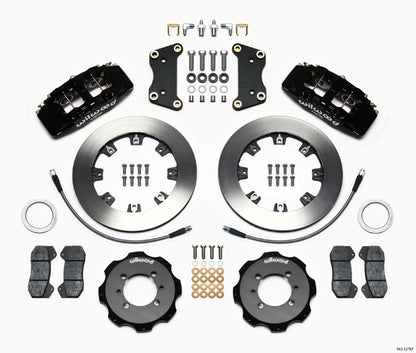

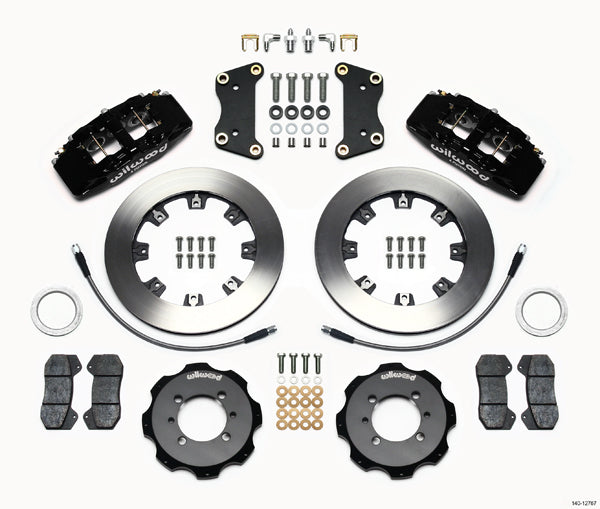

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • .810" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • ROTOR HATS
    • HUBS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 39 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Fiat Kits
