64-66 FORD MUSTANG 6CYL,4 LUG,REAR,11",RED

64-66 FORD MUSTANG 6CYL,4 LUG,REAR,11",RED

SKU:WIL 140-12589R

Regular price $1,069.99
Regular price Sale price $1,069.99
View full details

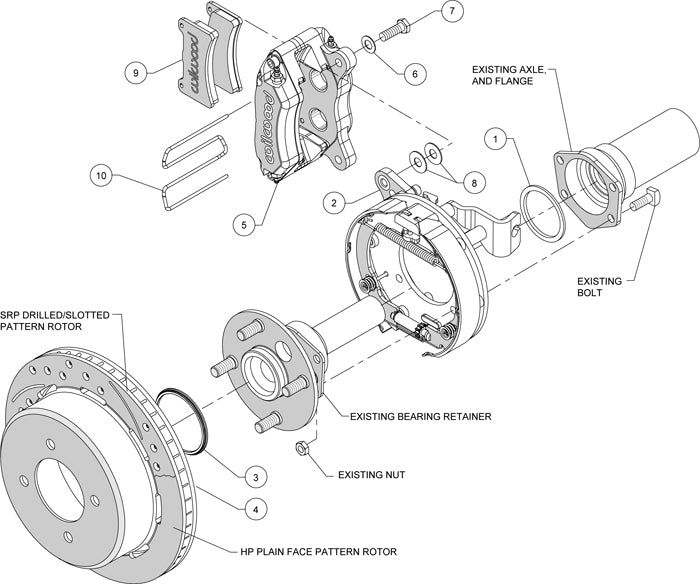

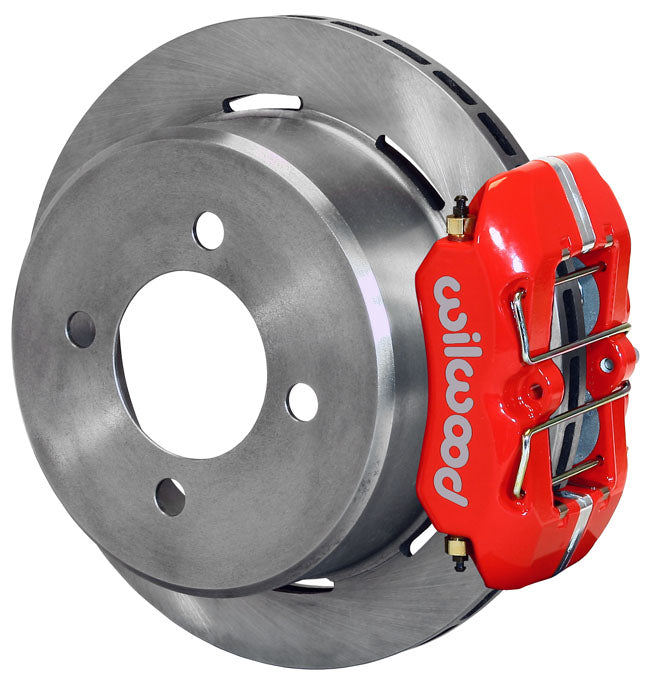

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

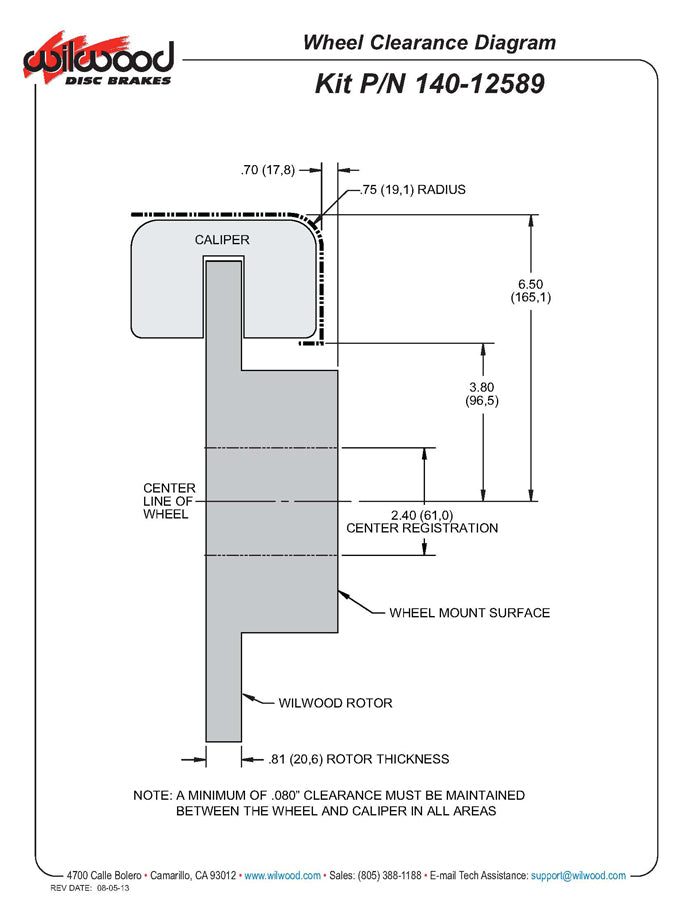

  • ***THIS KIT FITS REAR ENDS WITH FORD 7 1/4" AXLE FLANGES (SHOWN BELOW) WITH A 2.80" AXLE FLANGE OFFSET (ALSO SHOWN BELOW), WHICH SHOULD BE THE STOCK FLANGES AND STOCK OFFSET ON ALL OF THE APPLICATIONS LISTED BELOW. IT IS ALWAYS A GOOD IDEA TO DOUBLE CHECK YOUR REAR END TO CONFIRM THAT THESE ARE THE FLANGES AND THE OFFSET THAT IT HAS.***

  • WILWOOD REAR PARKING BRAKE, DYNAPRO LOW-PROFILE, BOLT-ON 11" DISC BRAKE KIT FOR:
    FORD:
    -1963-1964 FALCON WITH 6 CYLINDER SPINDLES ONLY (4 LUG)*
    -1965-1966 FALCON WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*
    -1964-1966 MUSTANG WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*
    -1963-1964 RANCHERO WITH 6 CYLINDER SPINDLES ONLY (4 LUG)*
    -1965 RANCHERO WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*
    MERCURY:
    -1963-1964 COMET WITH 6 CYLINDER SPINDLES ONLY (4 LUG)*
    -1965-1966 COMET WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*

  • FEATURING STANDARD ROTORS & RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • DYNAPRO LOW-PROFILE PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS THAT REQUIRE A PARKING BRAKE ASSEMBLY AND EXTRA CLEARANCE FOR 15.00" RIM APPLICATIONS
  • FORGED BILLET DYNAPRO LOW-PROFILE FOUR-PISTON CALIPERS 11.00" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES
  • THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

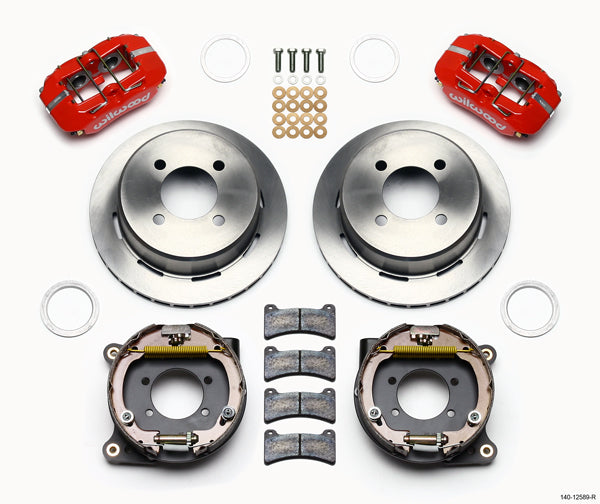

  • KIT INCLUDES:
    *STANDARD, .810" THICK x 11.00" O.D. ROTORS WITH HATS,
    *LOW PROFILE DYNAPRO CALIPERS - RED,
    *DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
