87-89 JEEP WRANGLER YJ,FRONT,FNSL4R,12"

87-89 JEEP WRANGLER YJ,FRONT,FNSL4R,12"

WIL 140-12576B

$1,089.99
$1,089.99
View full details

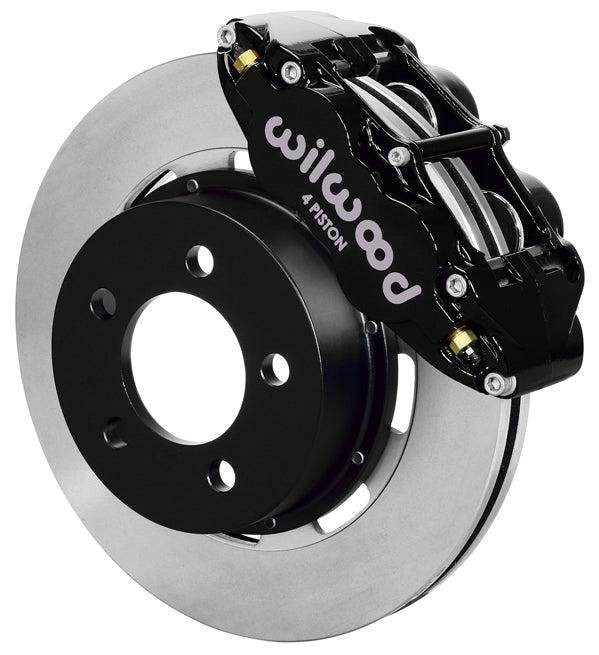

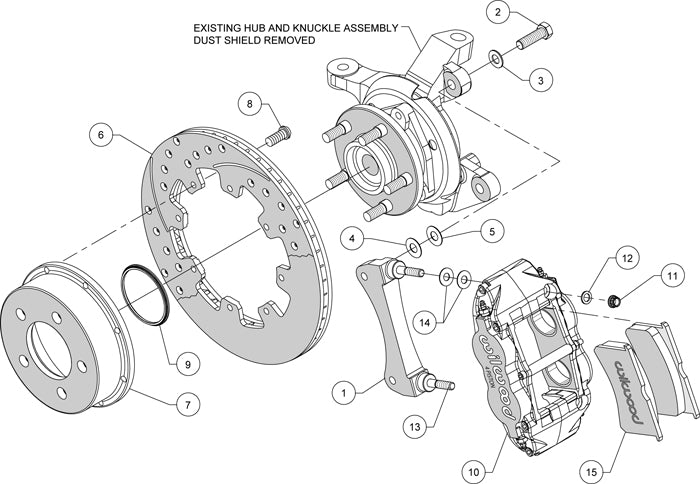

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE SUPERLITE BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT FOR:
    JEEP CHEROKEE:
    -1984-1985, ALL*
    -1986-1989, 4 X 4 ONLY*
    JEEP COMANCHE:
    -1986-1989, 4 X 4 ONLY*
    JEEP WAGONEER:
    -1984-1985, ALL*
    -1986-1989, 4 X 4 ONLY*
    JEEP WRANGLER:
    -1987-1989, ALL*
    JEEP YJ SERIES:
    -1987-1989, ALL*
    **THIS KIT WILL ALSO FIT MANY NEWER APPLICATIONS, IF THEY ARE CONVERTED TO THE 87-89 YJ FRONT SPINDLES, INCLUDING:
    **1990-2001 CHEROKEE**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES
    **1990-1992 COMANCHE**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES
    **1993-1998 GRAND CHEROKEE**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES
    **1993 GRAND WAGONEER**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES
    **1997-2006 TJ SERIES**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES
    **1990 WAGONEER**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES
    **1990-2006 WRANGLER**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES
    **1990-1995 YJ SERIES**, REQUIRES CONVERSION TO 87-89 YJ FRONT SPINDLES

  • FEATURING STANDARD ROTORS AND BLACK CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 4R FOUR-PISTON CALIPER SERVES AS THE BASE OF THIS 12.19" BIG ROTOR KIT FOR THESE POPULAR 84-89 JEEP YJ MODEL VEHICLES (INCLUDING CHEROKEE, COMANCHE, WRANGLER AND WAGONEER)
  • KITS ALSO CAN BE FITTED TO SELECT 1990 TO 2006 YJ & TJ VEHICLES IF RETROFITTED TO THE EARLIER 84-89 YJ SPINDLE
  • SL4R KITS ARE ENGINEERED APPLICATION SPECIFIC TO THESE VEHICLES, PROVIDING SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED
  • BIG BRAKE KITS OFFER INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES

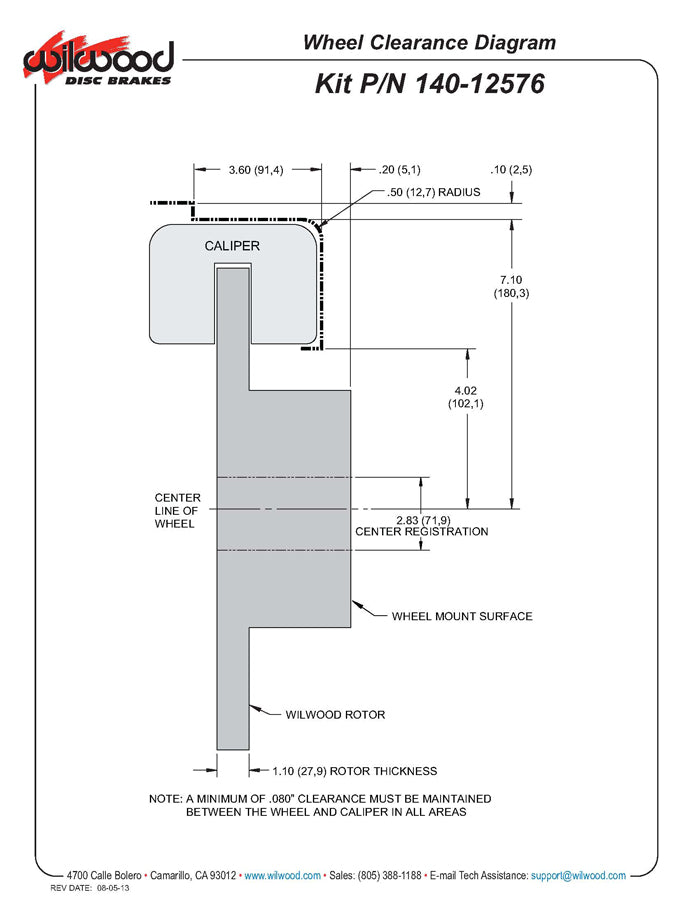

  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

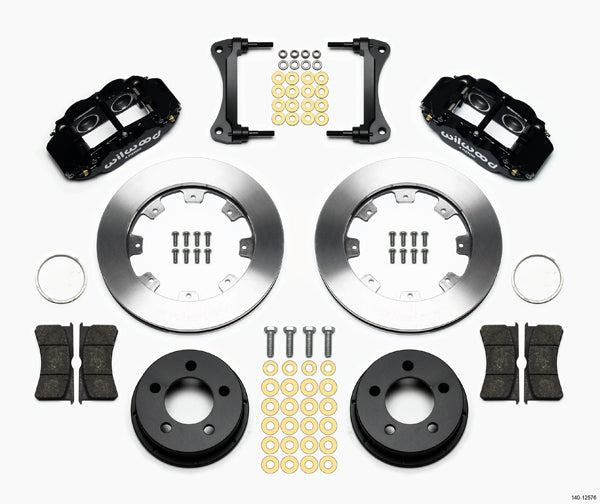

  • KIT INCLUDES:
    *STANDARD, 1.10" THICK X 12.19" O.D. ROTORS,
    *NARROW SUPERLITE 4 PISTON RADIAL MOUNT CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HATS, &
    *ALL BOLTS, WASHERS, & SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Jeep Kits > Wrangler Front Kits, 1987-1989
