64-66 FORD MUSTANG 6 CYLINDER,4 LUG,FRONT,10.75" ROTORS,BLACK CALIPERS

64-66 FORD MUSTANG 6 CYLINDER,4 LUG,FRONT,10.75" ROTORS,BLACK CALIPERS

WIL 140-12535B

$1,109.99
$1,109.99
View full details

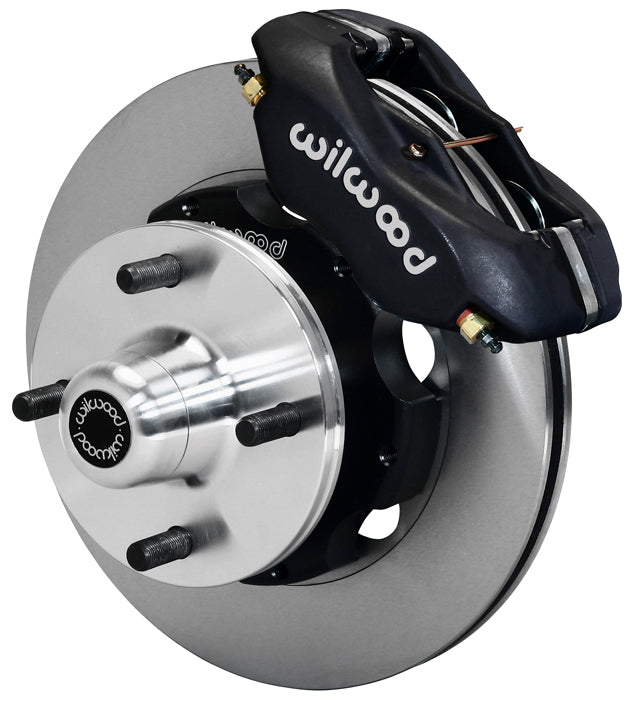

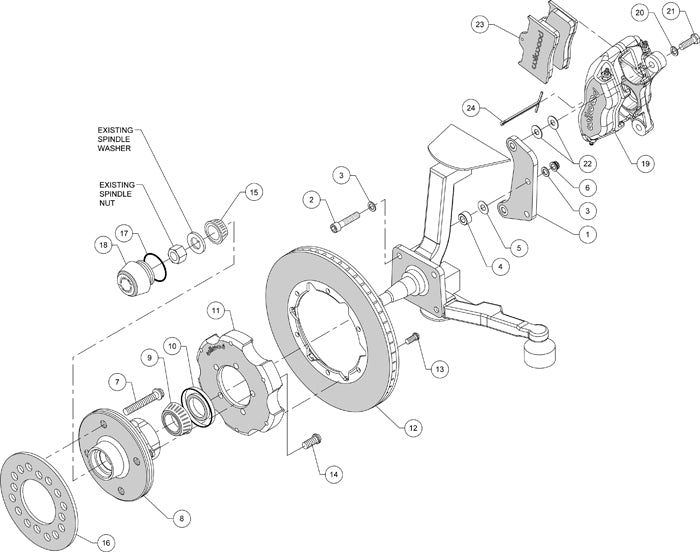

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 10.75" DISC BRAKE KIT FOR:
    FORD:
    -1963-1964 FALCON WITH 6 CYLINDER SPINDLES ONLY (4 LUG)*
    -1965-1966 FALCON WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*
    -1964-1966 MUSTANG WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*
    -1963-1964 RANCHERO WITH 6 CYLINDER SPINDLES ONLY (4 LUG)*
    -1965 RANCHERO WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*
    MERCURY:
    -1963-1964 COMET WITH 6 CYLINDER SPINDLES ONLY (4 LUG)*
    -1965-1966 COMET WITH 6 CYLINDER SPINDLES THAT WERE USED WITH OE DRUM BRAKES (4 LUG)*

  • FEATURING STANDARD ROTORS AND BLACK CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL PRO SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHUSIAST
  • THESE KITS WILL WORK WITH 15" AND LARGER DIAMETER WHEELS, AND IN MANY CASES THEY WILL WORK WITH 14" DIAMETER WHEELS AS WELL
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS

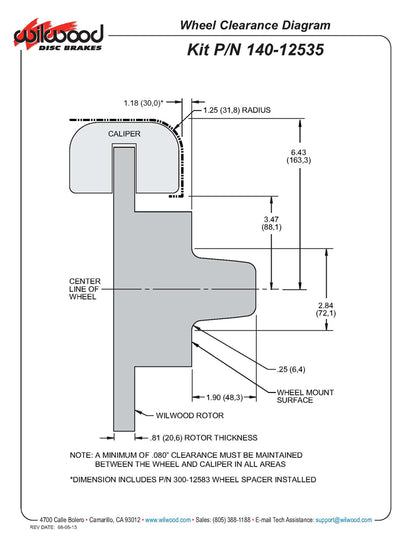

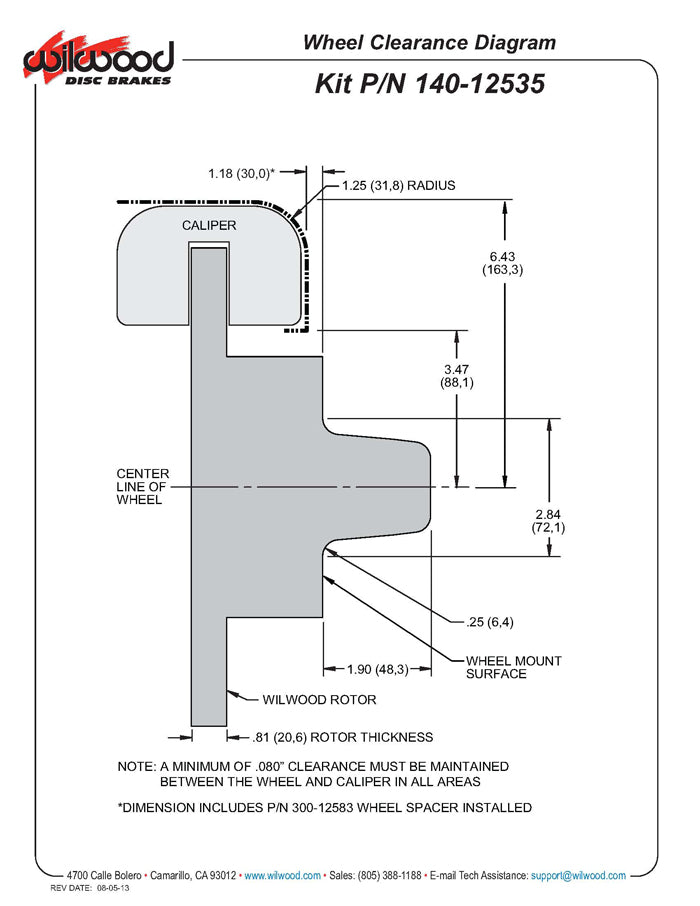

  • IF YOU HAVE 14" WHEELS, YOU CAN CHECK THE ASSEMBLY INSTRUCTION BOOKLET BELOW, AND ON PAGE 3, THERE IS A DIAGRAM WITH THE MOUNTED DIMENSIONS OF THIS KIT. YOU CAN COMPARE THAT TO THE BACK OF YOUR 14" WHEELS TO MAKE SURE THIS KIT WILL WORK IN YOUR APPLICATION

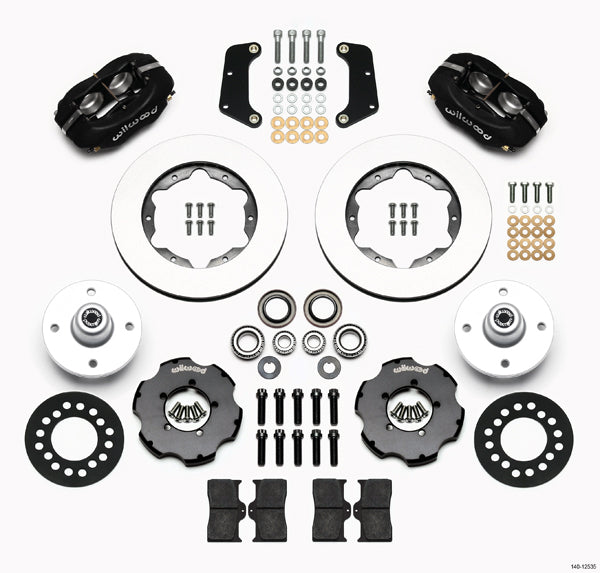

  • KIT INCLUDES:
    *STANDARD, .810" THICK X 10.75" O.D. ROTORS,
    *FORGED DYNALITE 4 PISTON CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HUBS,
    *BRAKE HATS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 41 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Ford Kits > Mustang Front Kits, 1964-1966 V6
