07-18 WRANGLER JK FULL DISC BRAKE KIT,14" DRILLED ROTORS,BLACK CALIPERS

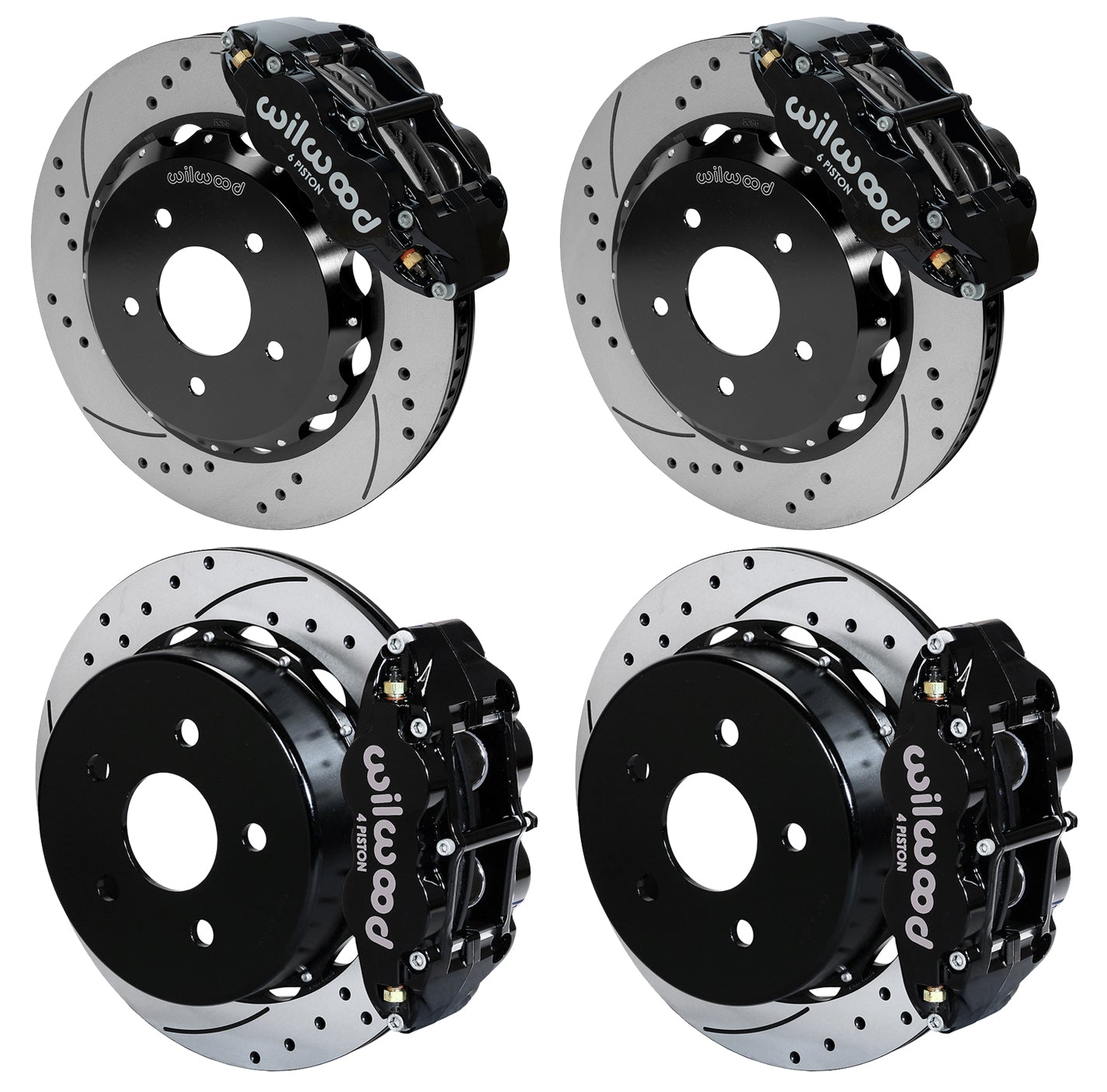

Brand New Wilwood Complete Premium Big Brake 14" Front and Rear Disc Brake Kit.

Complete Kit Includes:

• Superlite 6 Piston Bolt-On Front Hat & 14.00" Disc Brake Kit (Part #140-12440-D) for Both Front Wheels
• Superlite 4 Piston Bolt-On Rear Hat & 14.00" Disc Brake Kit (Part #140-14066-D) for Both Rear Wheels
• Full Line Kit for the Front with 24" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

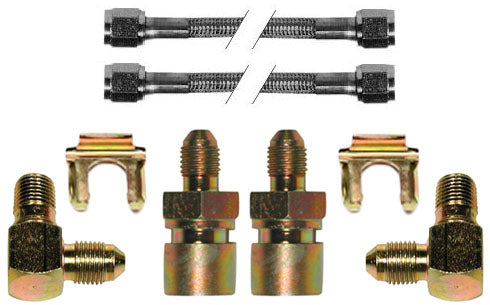

• Full Line Kit for the Rear with 21" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

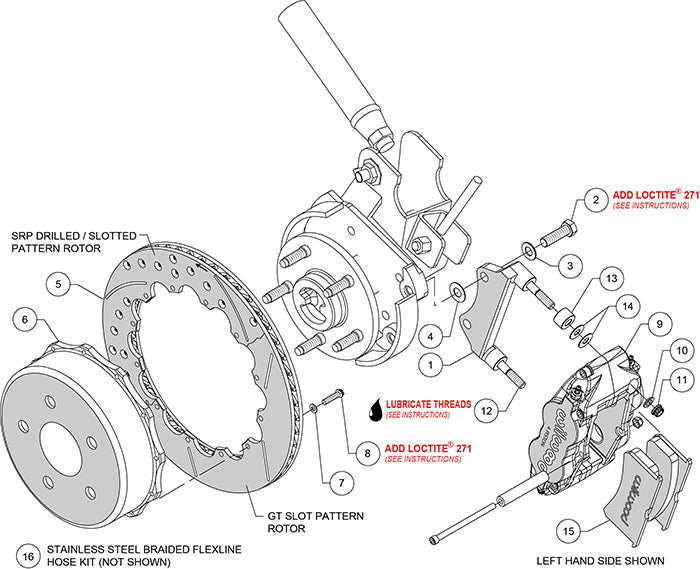

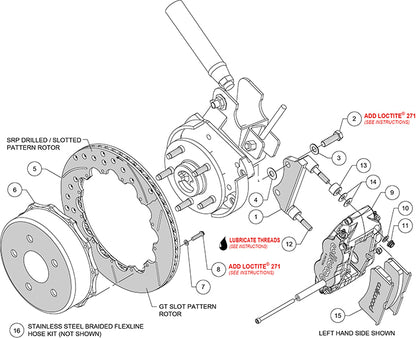

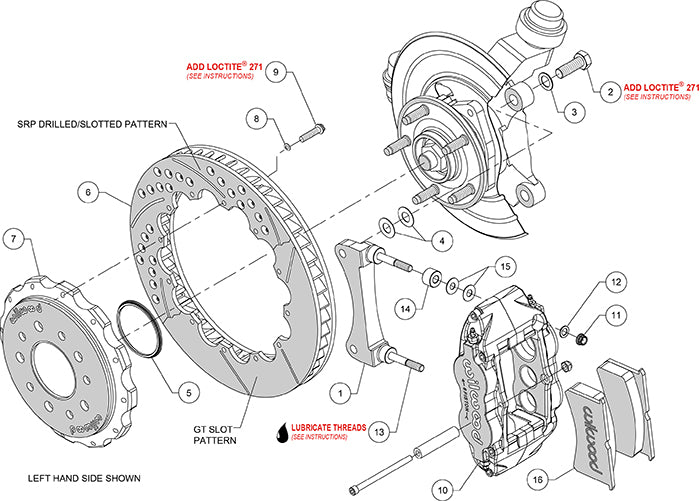

See the lists & diagrams below for a detail of the parts included.

Fits:

• Jeep:
  • 2007-2018 Wrangler JK 4x2 and 4x4 Left-Hand Drive
  • 2007-2018 Wrangler JK 4x4 Right-Hand Drive

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

The unsurpassed braking capacity of the Forged Narow Superlite 6R four-piston caliper serves as the base of this 14” big rotor kit for these popular 2007-up Jeep JK or Wrangler model vehicles. FNSL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Forged Narrow Superlite 4R four piston calipers are combined with BP-20 compound pads and 14” rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUV’s retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.

These Big Brake kits require at least 18" diameter wheels.

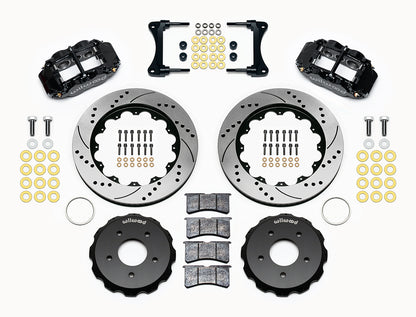

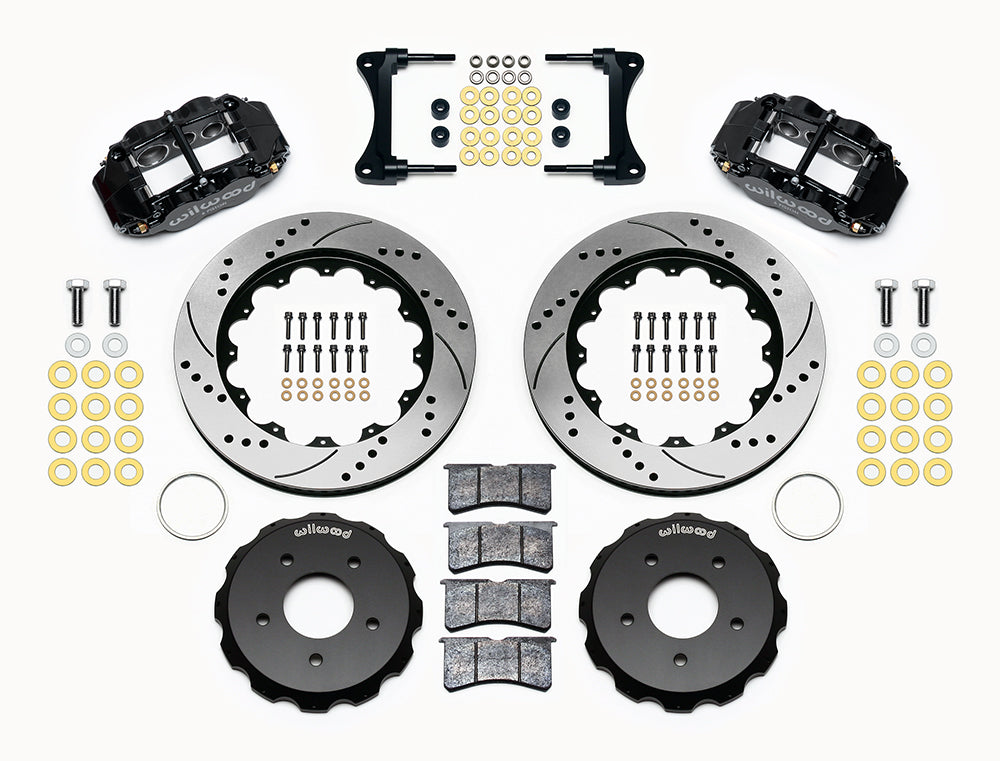

Front kit includes parts for both front wheels:

• Drilled & Slotted, 1.25" Thick x 14.00" O.D. Rotors
• Forged Narrow Superlite 6R Calipers - Black
• Caliper Mounting Brackets
• BP-20 Smart Compound Brake Pads
• Brake Hats &
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both front wheels

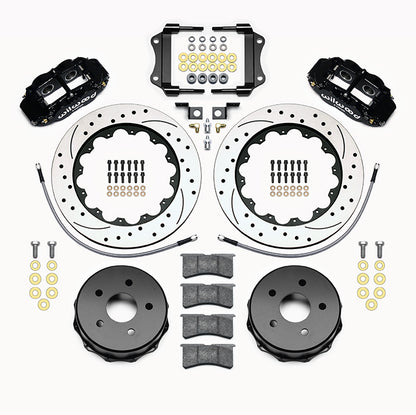

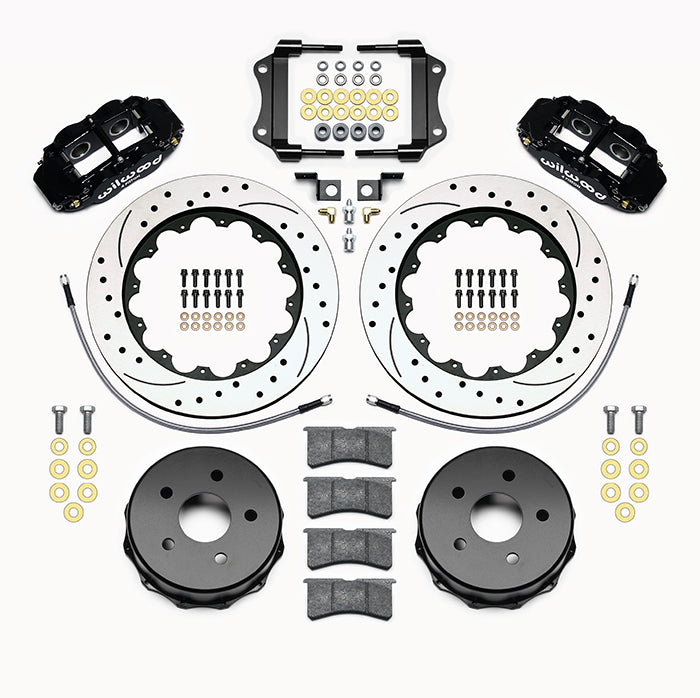

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, 0.81" Thick x 14.00" O.D. Rotors
• Forged Narrow Superlite 4R Calipers - Black
• Caliper Mounting Brackets
• BP-20 Smart Compound Brake Pads
• Brake Hats
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 126 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
