55-57 CHEVY FRONT DISC BRAKE KIT,2" DROP SPINDLES,DP6,12" ROTORS,BLACK

Brand New Wilwood Premium Big Brake Bolt-On Front Hub & 12.19" Disc Brake Kit with 6 Piston Dynapro 6 Upgrade and 2" Drop Spindles (Part #140-12306-DP6 & #103-9760) for Both Front Wheels.

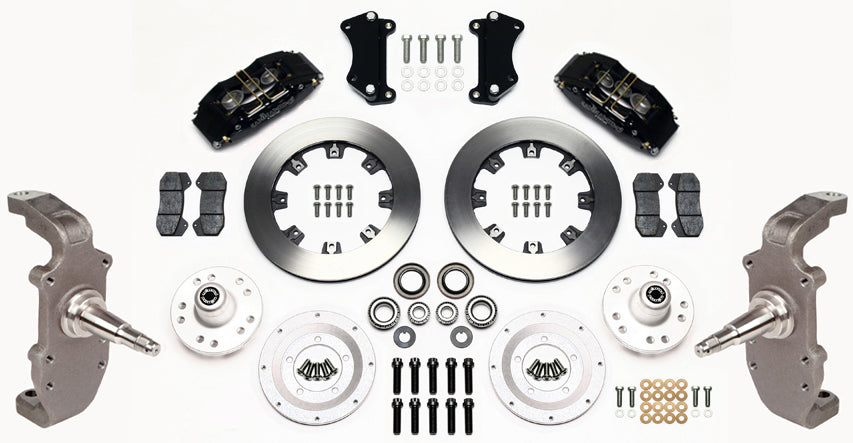

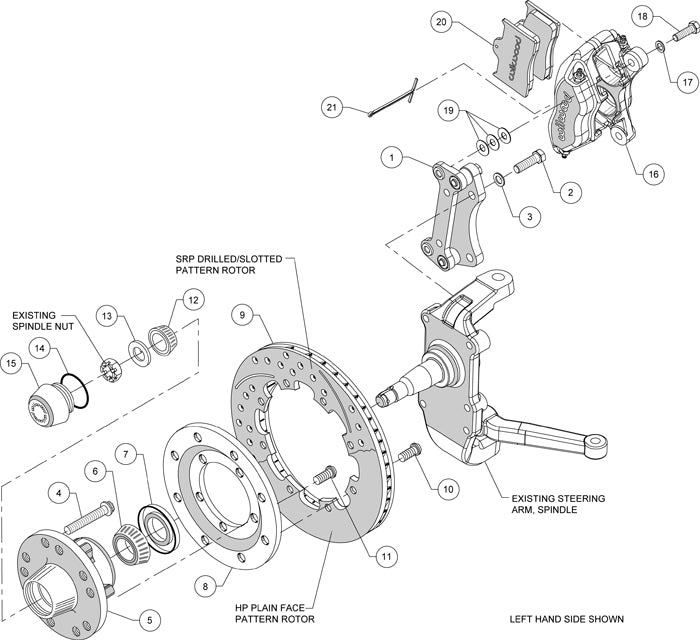

Only one side pictured. See the list, the diagram, & the assembly booklet for a detail of the parts included.

This is a custom kit that originally comes with Dynalite 4 piston calipers. We've removed those calipers & corresponding pads, and replaced them with Dynapro 6 calipers & pads.

Fits:

• Chevrolet:
  • 1955-1957 Chevy 150
  • 1955-1957 Chevy 210
  • 1955-1957 Chevy Bel Air

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Wilwood Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro 6 Piston Calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street/strip machines.  These kits can be used with either manual or power boost master cylinders.  Make sure to check the assembly instruction booklet below to see any modifications that might be necessary for your application.

Drop Spindles provide a full 2" drop, while not changing the vehicle's steering geometry.  They will accept the stock ball joints and steering arms.

These Big Brake kits require at least 16" diameter wheels.

Kit includes parts for both front wheels:

• 2" Drop Spindles
• .810" Thick x 12.19" O.D. Rotors
• Dynapro 6 Piston Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs
• Bearings
• Seals
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 62 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
