55-57 CHEVY FRONT DISC BRAKE KIT,2" DROP SPINDLES,11" DRILLED,POL

Brand New Wilwood Forged Dynalite Pro Series Bolt-On Front Hub & 11" Disc Brake Kit with 2" Drop Spindles (Part #140-12305-DP & #103-9760) for Both Front Wheels.

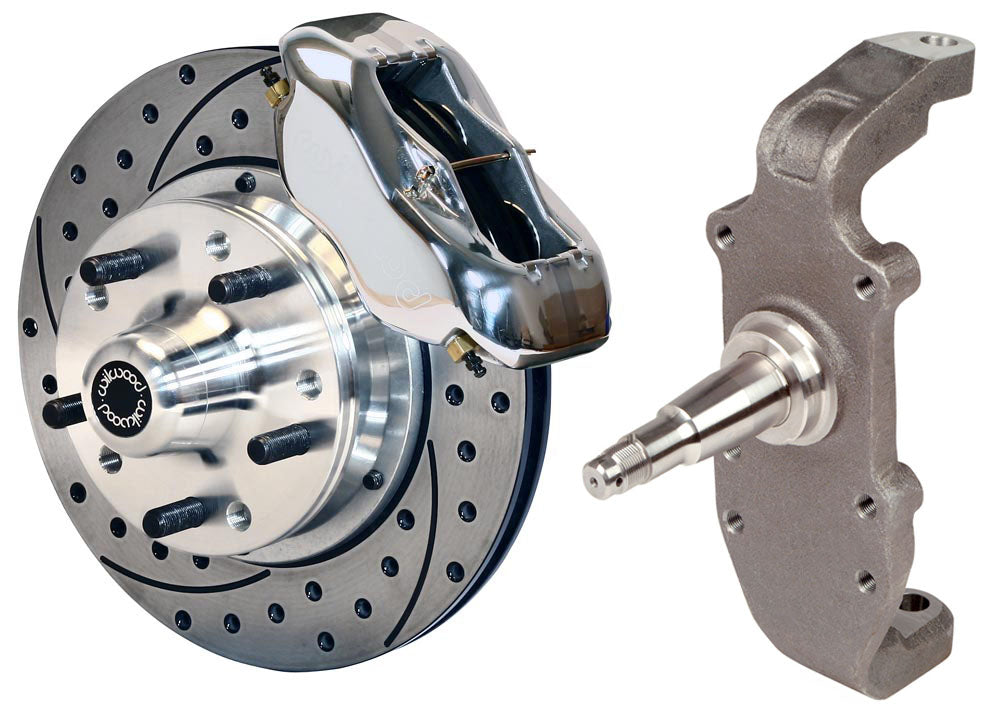

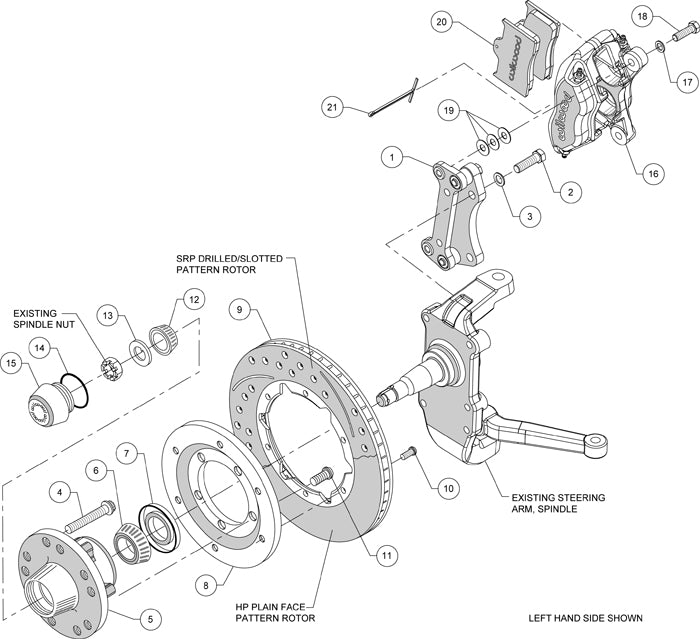

Only one side pictured.  See the list, the diagram, & the assembly booklet for a detail of the parts included.

Fits:

• Chevrolet:
  • 1955-1957 Chevy 150
  • 1955-1957 Chevy 210
  • 1955-1957 Chevy Bel Air

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Wilwood's FDL Pro Series front hub kits offer complete disc brake upgrade solutions for OEM drum spindles on American muscle cars, vintage rods, & heavyweight drag cars. They are designed specifically to keep the track width as close to the factory position as possible. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modification for installation and provide plenty of clearance inside popular 15" wheels. These kits can be used with either manual or power boost master cylinders

Drop Spindles provide a full 2" drop, while not changing the vehicle's steering geometry.  They will accept the stock ball joints and steering arms.

These kits require at least 15" diameter wheels.

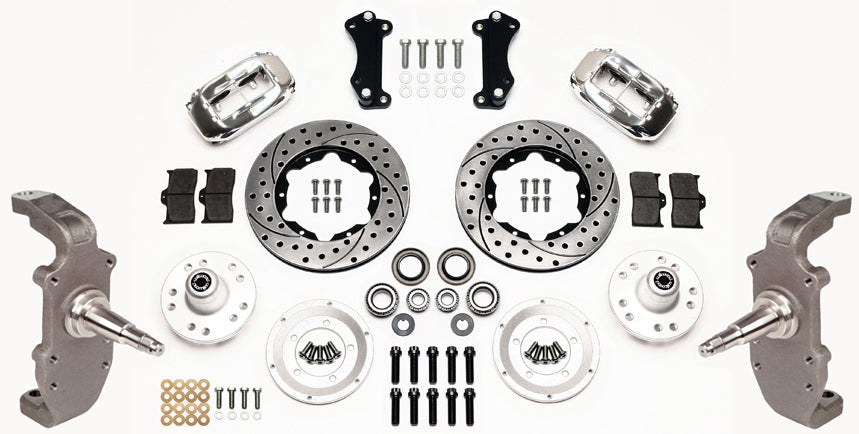

Kit includes parts for both front wheels:

• 2" Drop Spindles
• Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors
• Forged Dynalite Calipers - Polished
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs
• Bearings
• Seals
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 56 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
