HEIDT'S 55-57 2" DROP KIT,FRONT,FDL,11" ROTORS,RED CALIPERS

HEIDT'S 55-57 2" DROP KIT,FRONT,FDL,11" ROTORS,RED CALIPERS

WIL 140-12305R

$1,009.99
$1,009.99
View full details

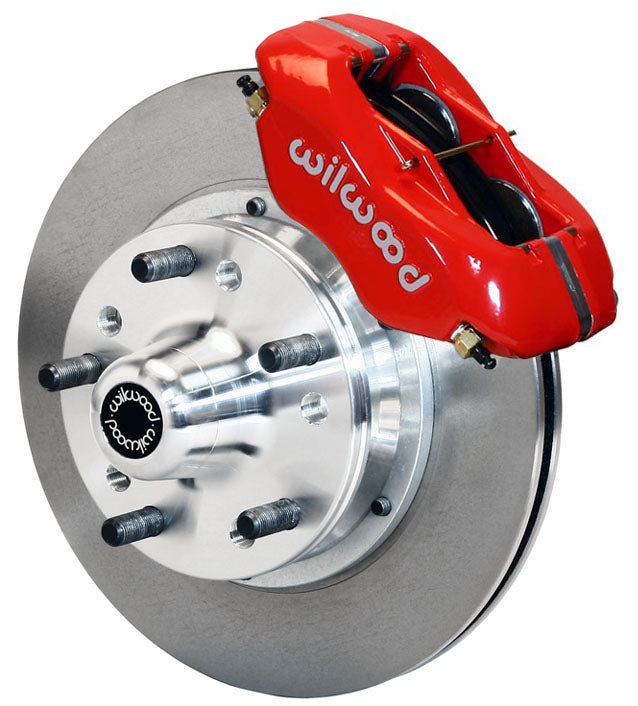

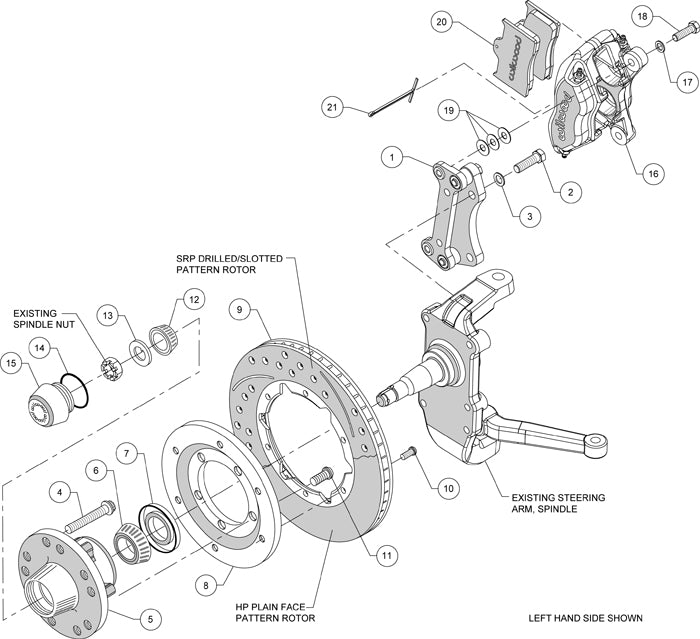

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 11.00" DISC BRAKE KIT FOR:
    -1955-1957 CHEVY 150 WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY 210 WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY BEL AIR WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY NOMAD WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY SEDAN DELIVERY WITH HEIDTS 2" DROP SPINDLES*
    -1957 CHEVY DEL RAY WITH HEIDTS 2" DROP SPINDLES*

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL PRO SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHUSIAST

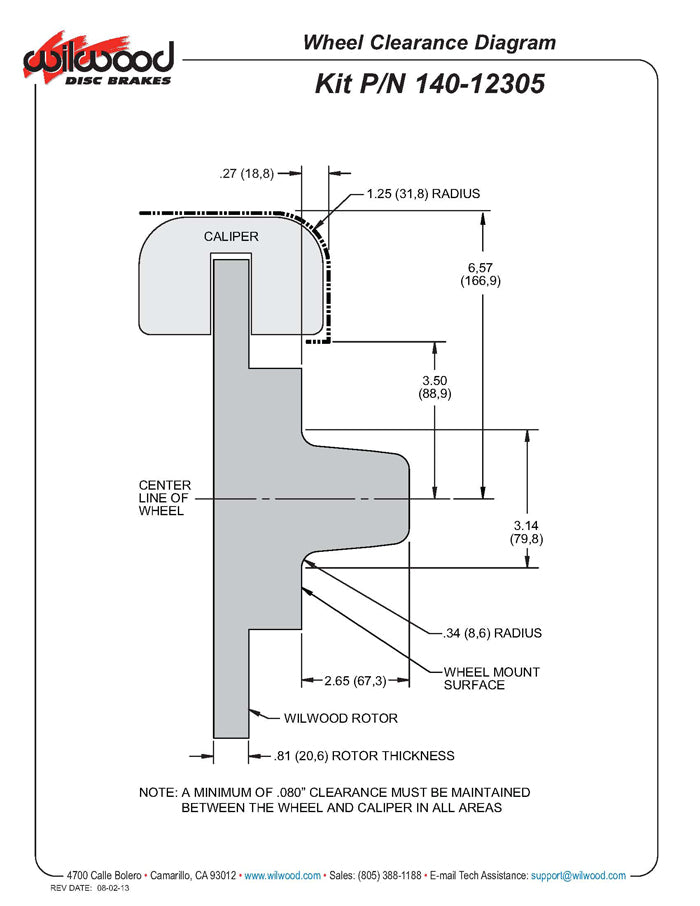

  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

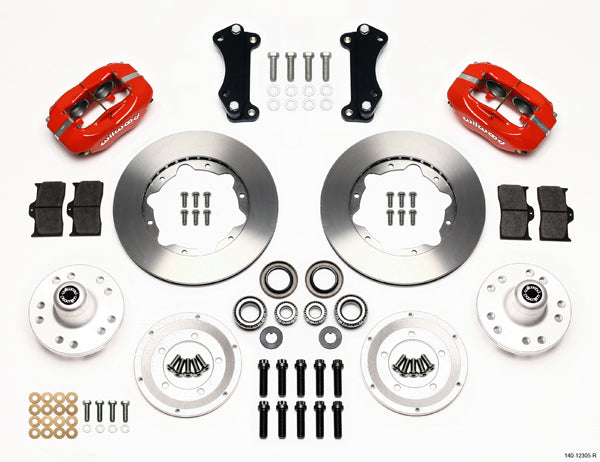

  • KIT INCLUDES:
    *STANDARD, .810" THICK X 11.00" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 41 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Chevy Front Kits, 1955-1957
