HEIDT'S 55-57 2" DROP KIT,FRONT,FDL,11" DRILLED ROTORS,POLISHED CALIPERS

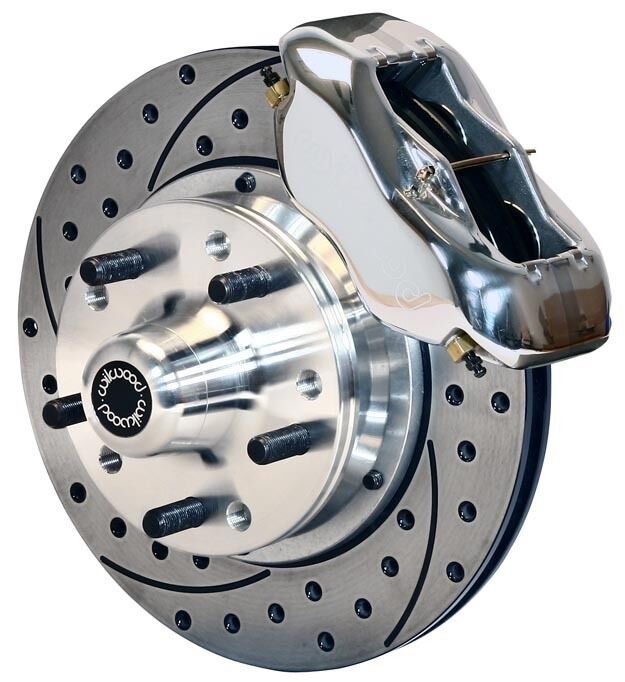

Brand New Wilwood Pro Series Forged Dynalite Bolt-On Front Hub Featuring 11" Drilled Rotors & Polished Calipers for Both Front Wheels (Part #140-12305-DP).

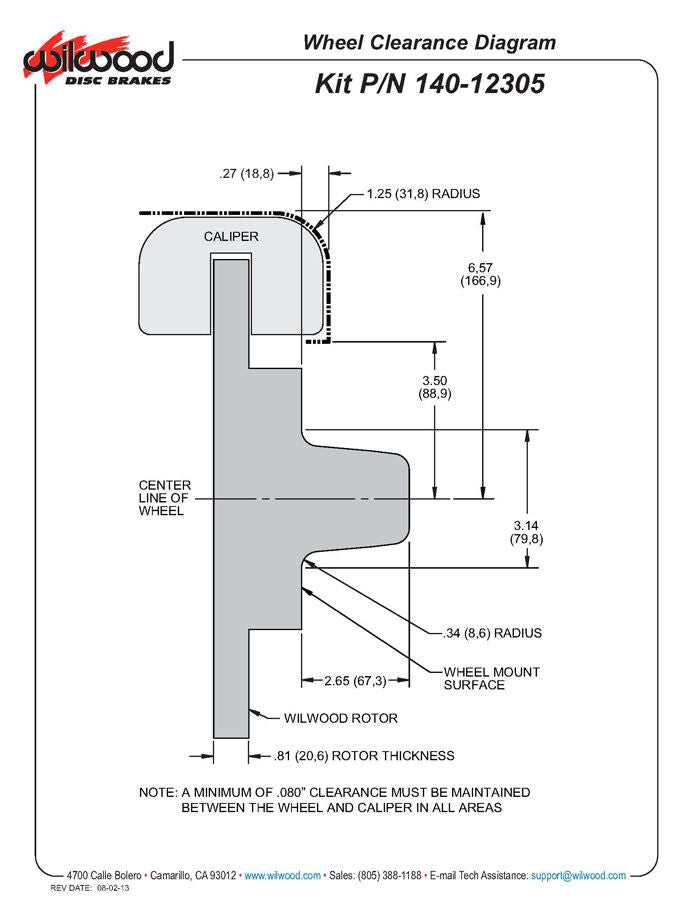

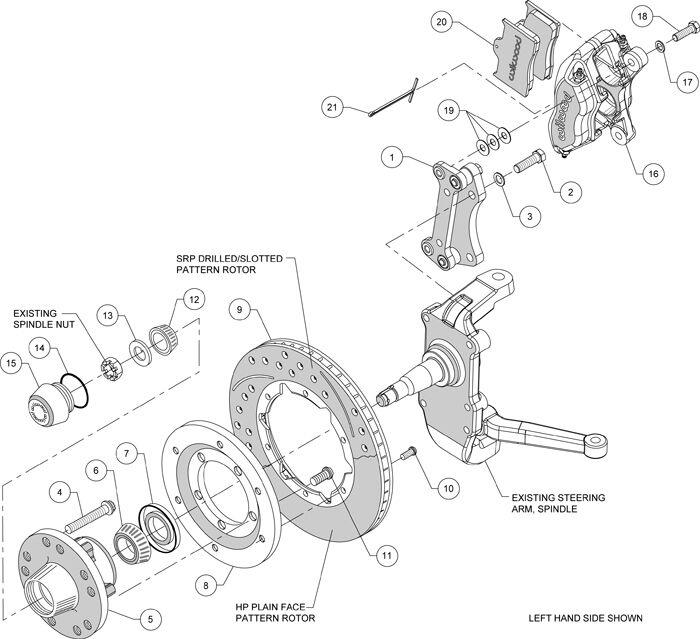

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Fits:

• Chevrolet:
  • 1955-1957 Chevy 150 with Heidts 2" Drop Spindles
  • 1955-1957 Chevy 210 with Heidts 2" Drop Spindles
  • 1955-1957 Chevy Bel Air with Heidts 2" Drop Spindles

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modification for installation. These kits can be used with either manual or power boost master cylinders.

These Big Brake kits require at least 15" diameter wheels.

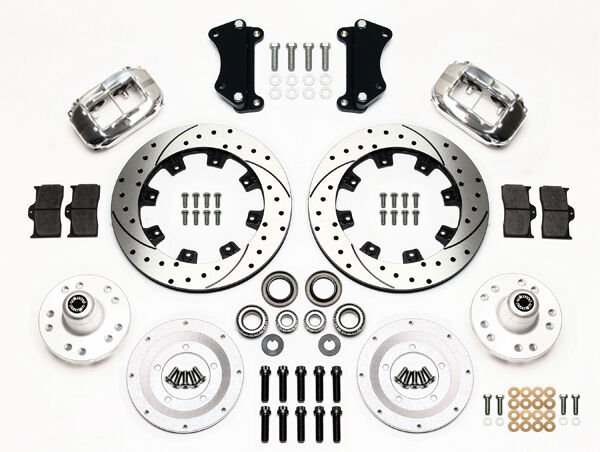

Kit includes parts for both front wheels:

• .810" Thick x 11" O.D. Rotors
• Forged Dynalite 4 Piston Calipers
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings & Seals
• All Bolts, Washers, & Shims necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 40 lbs.

You can view and download the complete assembly instruction booklet for this kit here.

We have the spindles for these kits available as well. Click here.
